Engine Performance
>>
System
>>
Engine Control System (SFI) - Diagnostics (1ZZ-FE)
>>
DTC P0420: Catalyst System Efficiency Below Threshold (Bank 1)
>>
Monitor Strategy
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Strategy

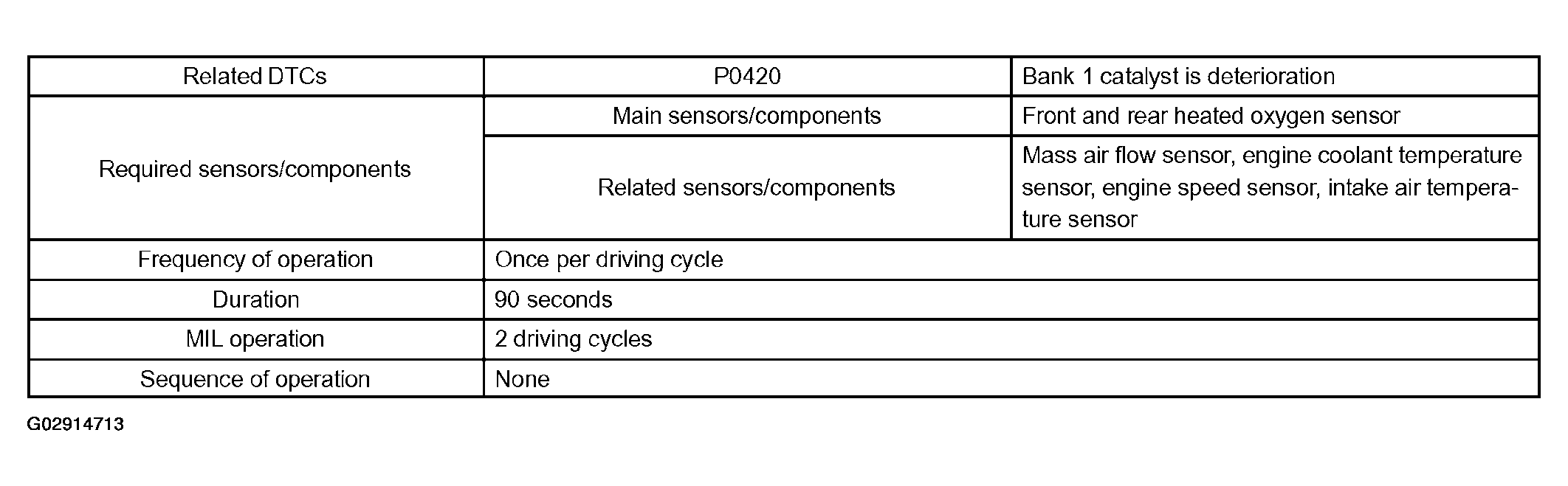

Fig 1: Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
