Floor Shift Cable Transmission Control Shift (MTM): Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE:

See EXPLODED VIEW OF FLOOR SHIFT LEVER ASSEMBLY COMPONENTS or COMPONENTS

PRECAUTION
NOTE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary (If the IC terminals are touched, the IC may be destroyed by static electricity).
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See REPLACEMENT )
REMOVE INSTRUMENT PANEL BOX (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
REMOVE AIR BAG SENSOR ASSY CENTER (See REMOVAL & INSTALLATION (MATRIX) )
REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Remove the clip, washer and disconnect the cable end of the shift cable from the transaxle.
2. Remove the clip and disconnect the shift cable from the bracket.

  Fig 1: Removing Clip And Disconnecting Shift Cable From Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and disconnect the shift cable.

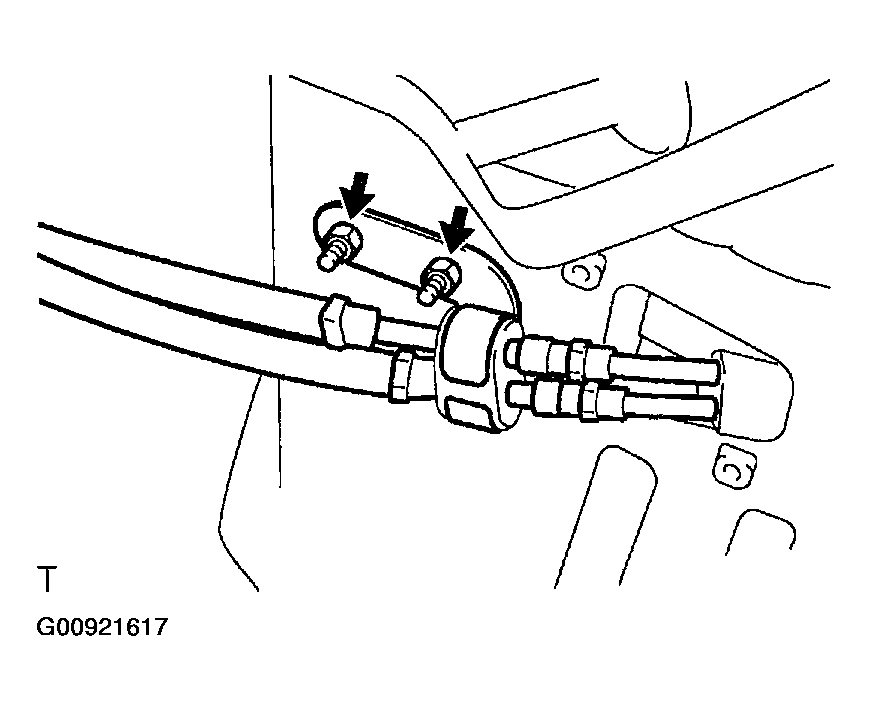

  Fig 2: Removing Nuts And Disconnecting Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the shift cable from the clamp.
5. Remove the 2 bolts and shift cable grommet retainer.

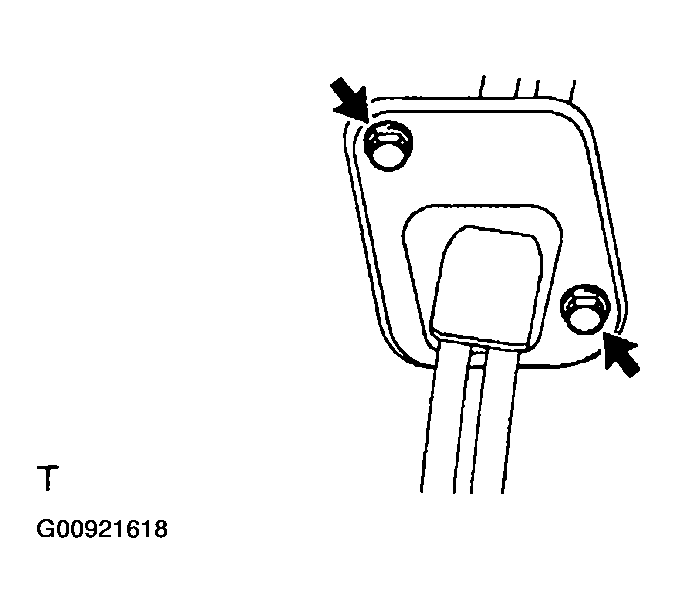

  Fig 3: Removing Bolts And Shift Cable Grommet Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the clip, washer and disconnect the cable end of the shift cable from the shift lever assy.

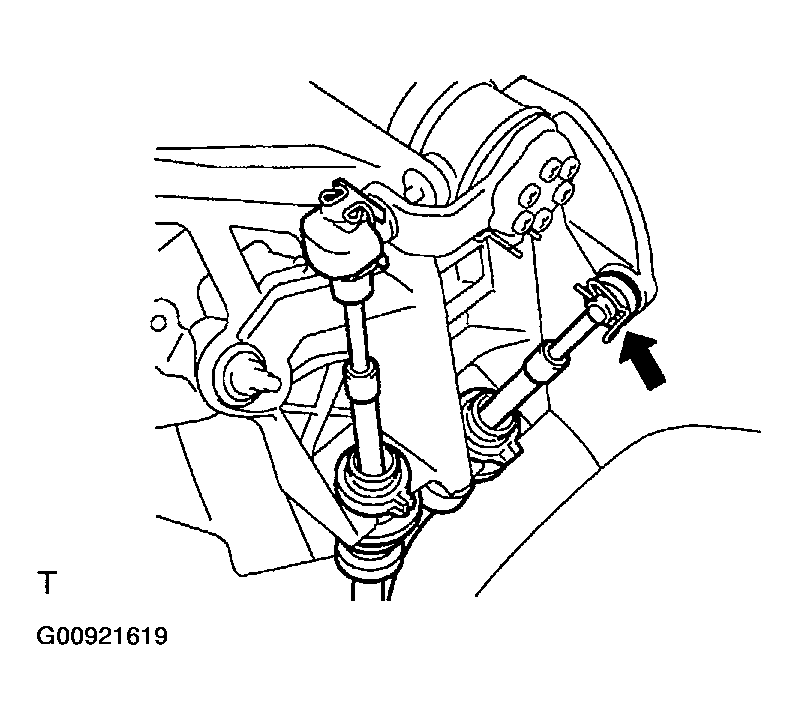

  Fig 4: Disconnecting Cable End Of Shift Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn the lock and disconnect the shift cable from the shift lever assy.

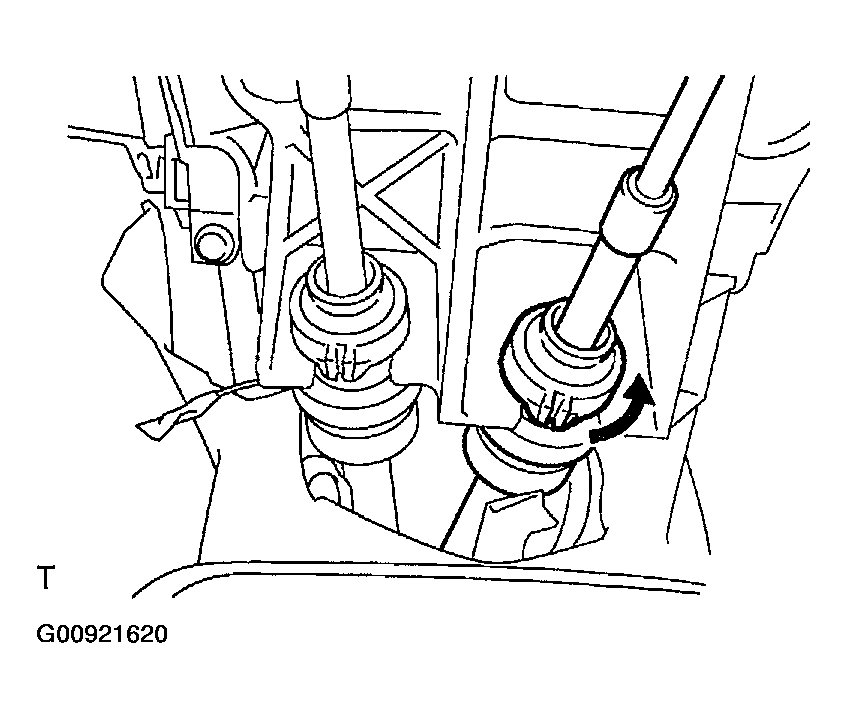

  Fig 5: Disconnecting Shift Cable From Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Pull out the shift cable from the floor.
INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Pull in the shift cable to the floor.
2. Install the shift cable grommet retainer with the 2 bolts.
  1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

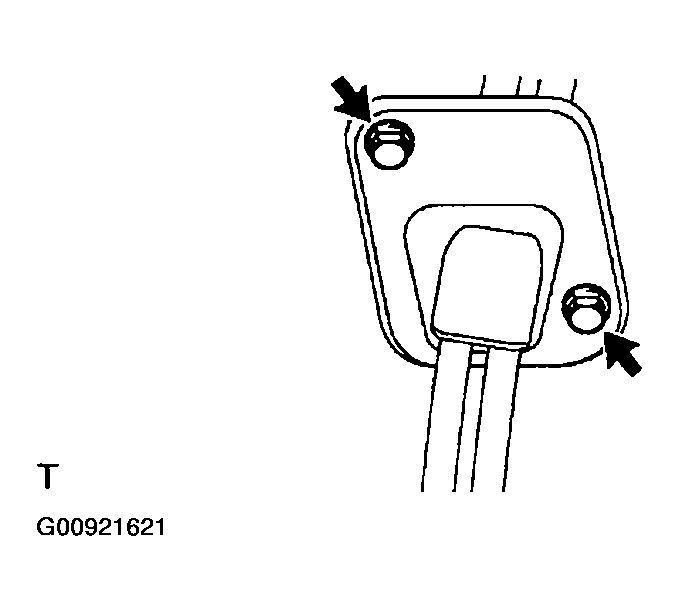

  Fig 6: Installing Shift Cable Grommet Retainer With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the shift cable to the shift lever assy.
  NOTE:
  - The projecting part of the cable outer should face upward when the shift cable is installed.
  - Make sure that after installation the cable outer spring is moved to the place shown in Fig 7 .

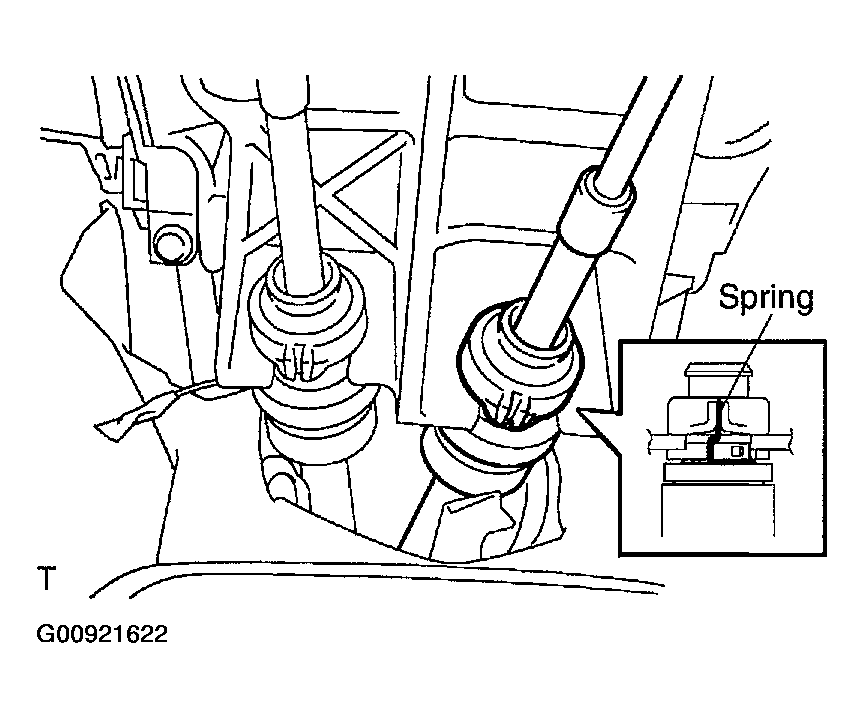

    Fig 7: Connecting Shift Cable To Shift Lever Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the shift cable end as shown in Fig 8 .

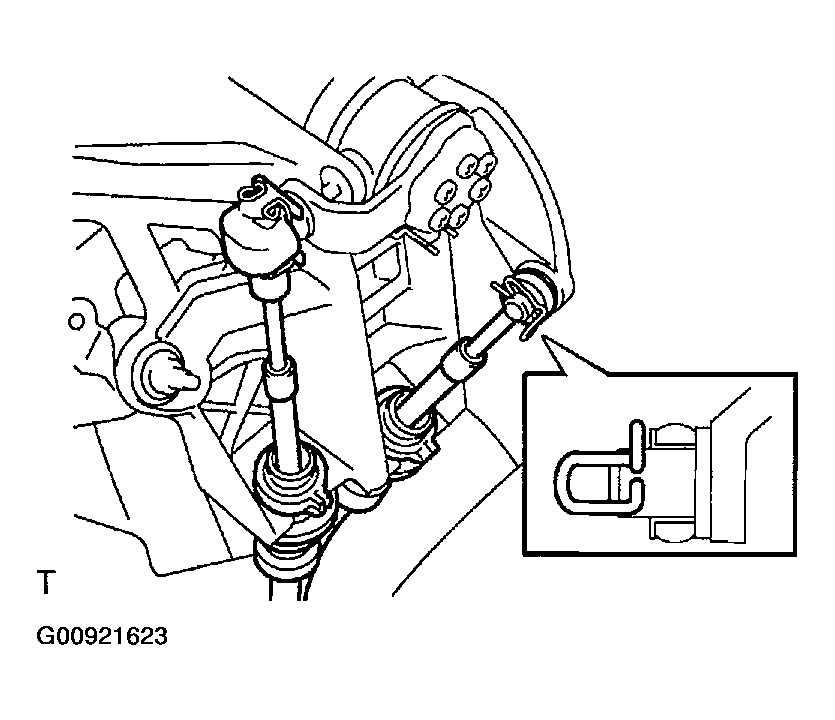

  Fig 8: Connecting Shift Cable End
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the washer and clip.
6. Connect the shift cable to the clamp.
7. Connect the shift cable with the 2 nuts.
  1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
  Fig 9: Connecting Shift Cable With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the shift cable with the clip from the bracket.
9. Connect the shift cable end of the shift cable with the washer and clip to the transaxle.

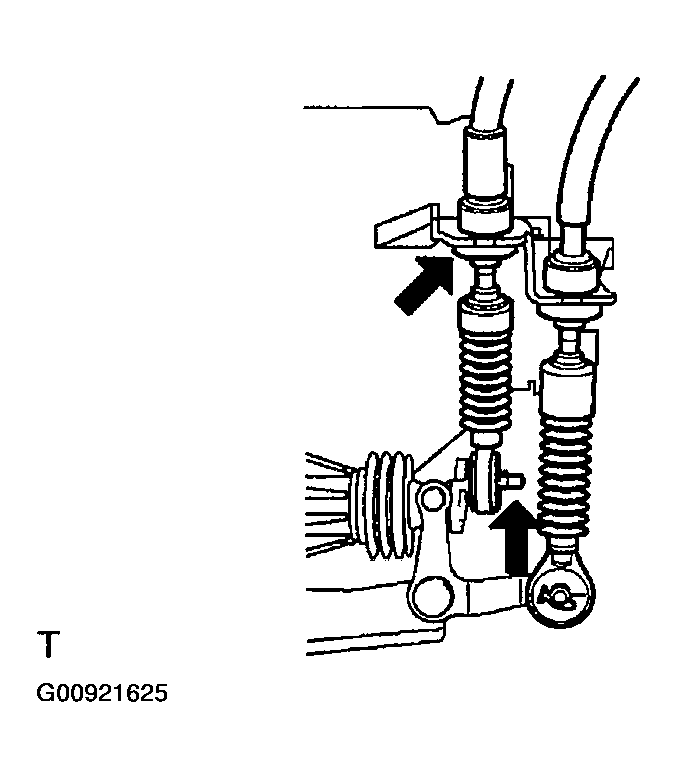

Fig 10: Connecting Shift Cable End Of Shift Cable With Washer And Clip To Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR BAG SENSOR ASSY CENTER (See REMOVAL & INSTALLATION (MATRIX) )
SST 09249-63010
INSPECT SRS WARNING LIGHT (See AIR BAG WARNING LIGHT CHECK )
