Section 1005 (Headlight Cleaner System): Inspection

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT HEADLIGHT CLEANER SWITCH CONTINUITY

HEADLIGHT CLEANER SWITCH TERMINALS CONTINUITY

Switch position	Tester connection	Specified condition
OFF	-	No continuity
ON	1-4	Continuity
Illumination circuit	2-3	Continuity

If continuity is not as specified, replace the switch.

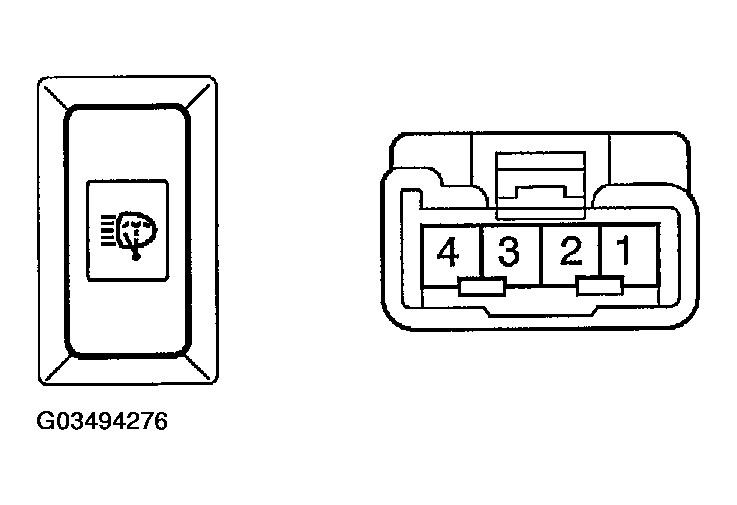

Fig 1: Identifying Headlight Cleaner Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HEADLIGHT CLEANER SWITCH CIRCUIT

Disconnect the switch connector and inspect the connector on wire harness side, as shown in Fig 2 .

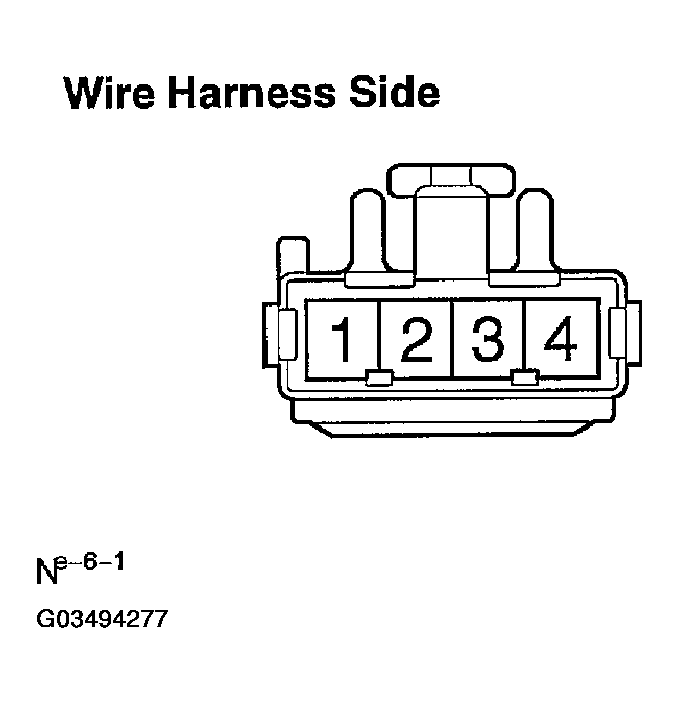

Fig 2: Identifying Headlight Cleaner Switch Terminals (Wire Harness Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HEADLIGHT CLEANER SWITCH TERMINALS CONTINUITY

Tester connection	Condition	Specified condition
1 - Ground	Headlight ON	Continuity
1 - Ground	Headlight OFF	No continuity

If circuit is not as specified, inspect the circuits connected to other parts.

INSPECT HEADLIGHT CLEANER RELAY OPERATION
1. Check that no continuity exists between terminals 2 and 5.
2. Connect the positive (+) lead from the battery to terminals 1 and 5, and the negative (-) lead to terminal 3.
3. Connect the negative (-) lead from the battery to terminal 4, and check that continuity exists between terminals 2 and 5 for 0.9 - 1.1 seconds, then no continuity exists.
If operation is not as specified, replace the motor.

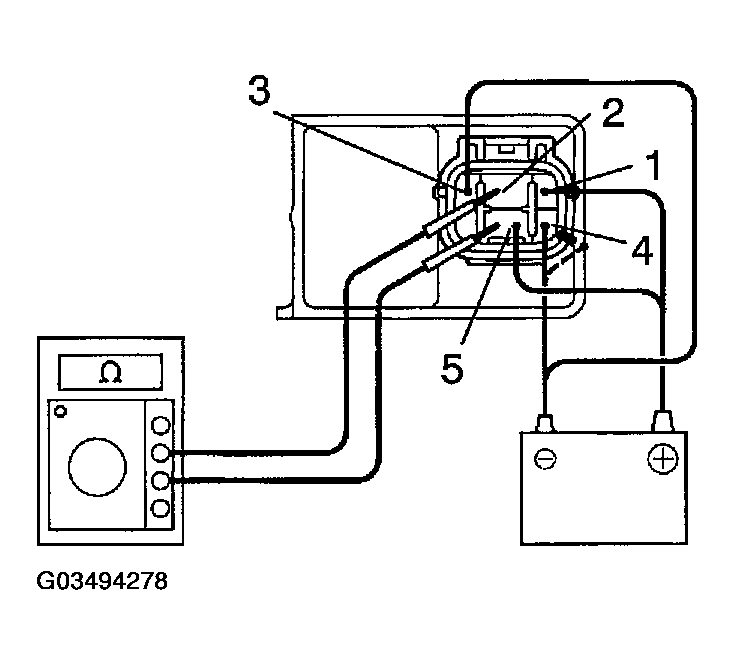

Fig 3: Checking Headlight Cleaner Relay Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HEADLIGHT CLEANER RELAY CIRCUIT

Disconnect the connector from the relay and inspect the connector on wire harness side, as shown in Fig 4 .

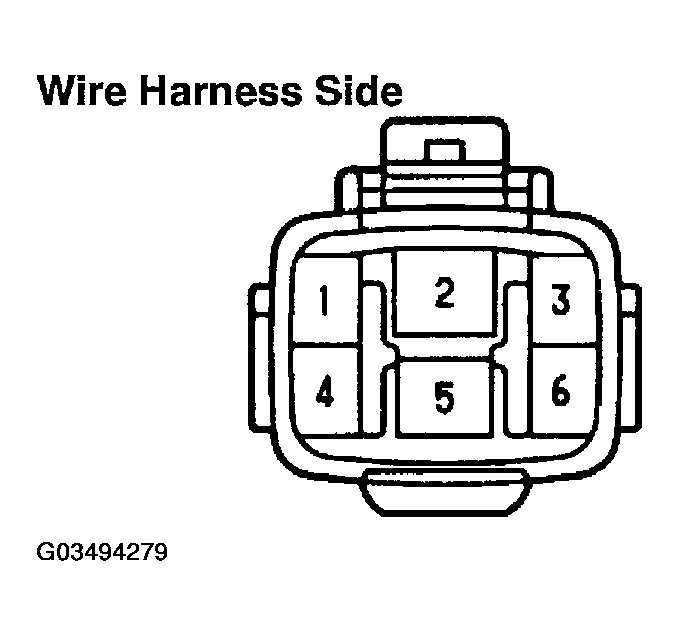

Fig 4: Identifying Headlight Cleaner Relay Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HEADLIGHT CLEANER RELAY CONNECTOR TERMINALS CONTINUITY

Tester connection	Condition	Specified condition
2 - Ground 3 - Ground	Always	Continuity
4 - Ground	Ignition switch ON, light control switch in HEAD and cleaner switch OFF	No continuity
4 - Ground	Ignition switch ON, light control switch in HEAD and cleaner switch ON or daytime running light system operating	Continuity
1 - Ground	Ignition switch OFF or ACC	No voltage
1 - Ground	Ignition switch ON	Battery voltage
5 - Ground	Always	Battery voltage

If circuit is not as specified, inspect the circuits connected to other parts.

INSPECT HEADLIGHT CLEANER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, check that the motor operates.

NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.

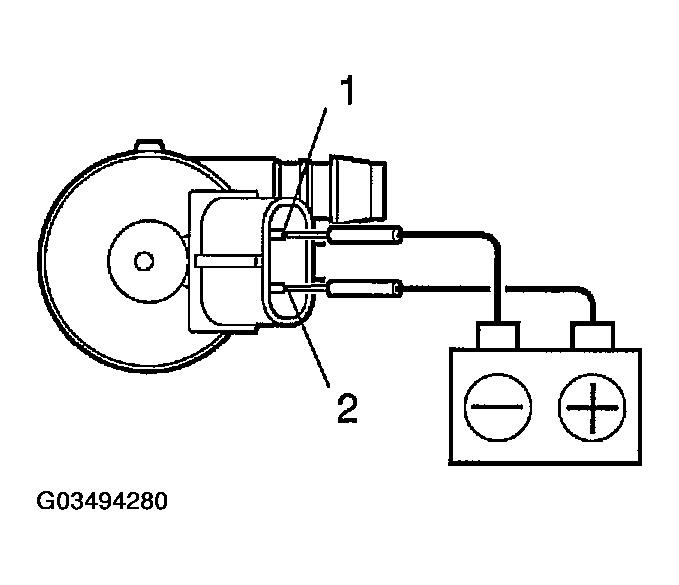

Fig 5: Checking Headlight Cleaner Motor Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT HEADLIGHT CLEANER MOTOR CIRCUIT

Disconnect the connector from the cleaner motor and inspect the connector on wire harness side, as shown in Fig 6 .

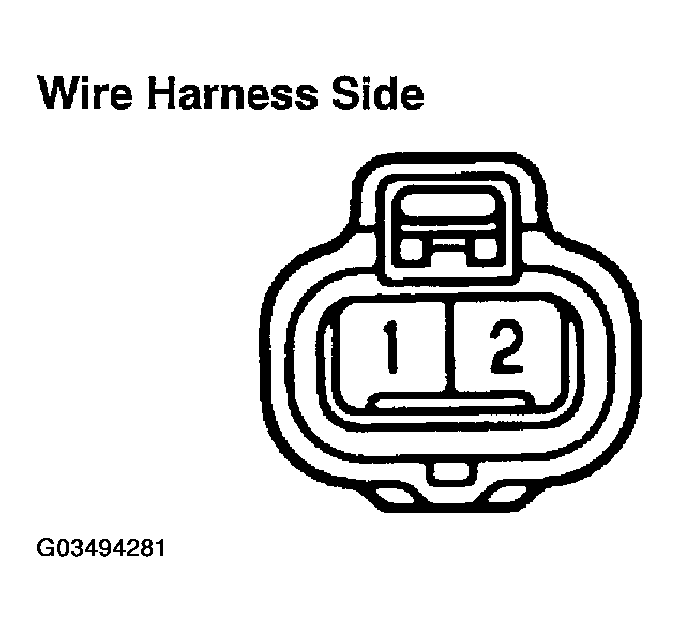

Fig 6: Identifying Headlight Cleaner Motor Connector Terminals

HEADLIGHT CLEANER MOTOR CONNECTOR TERMINALS CONTINUITY

Tester connection	Condition	Specified condition
2 - Ground	Always	Continuity

If circuit is not as specified, inspect the circuits connected to other parts.
