Steering Column ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

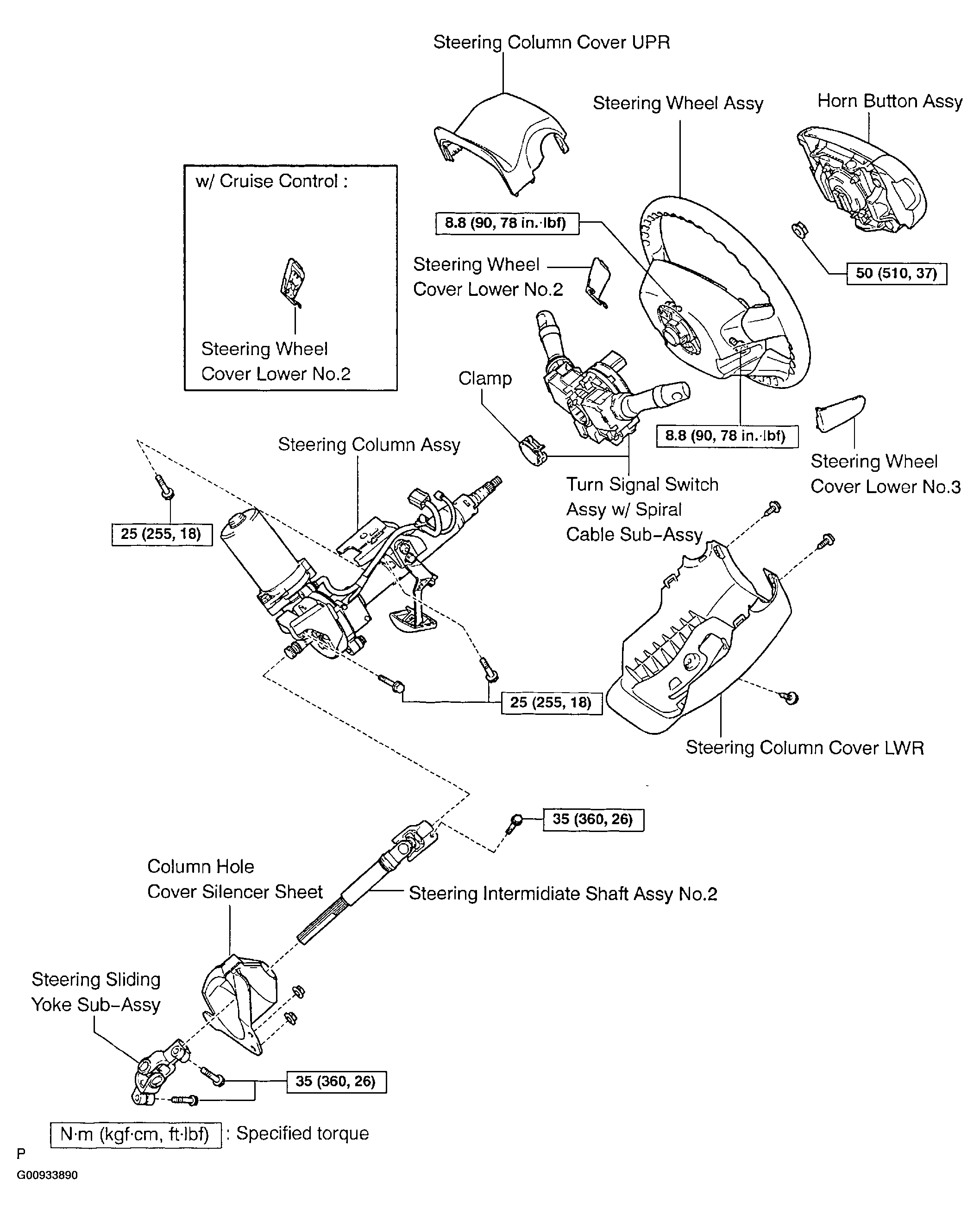

Fig 1: Identifying Steering Column Assy Components (1 of 2)
G00933890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

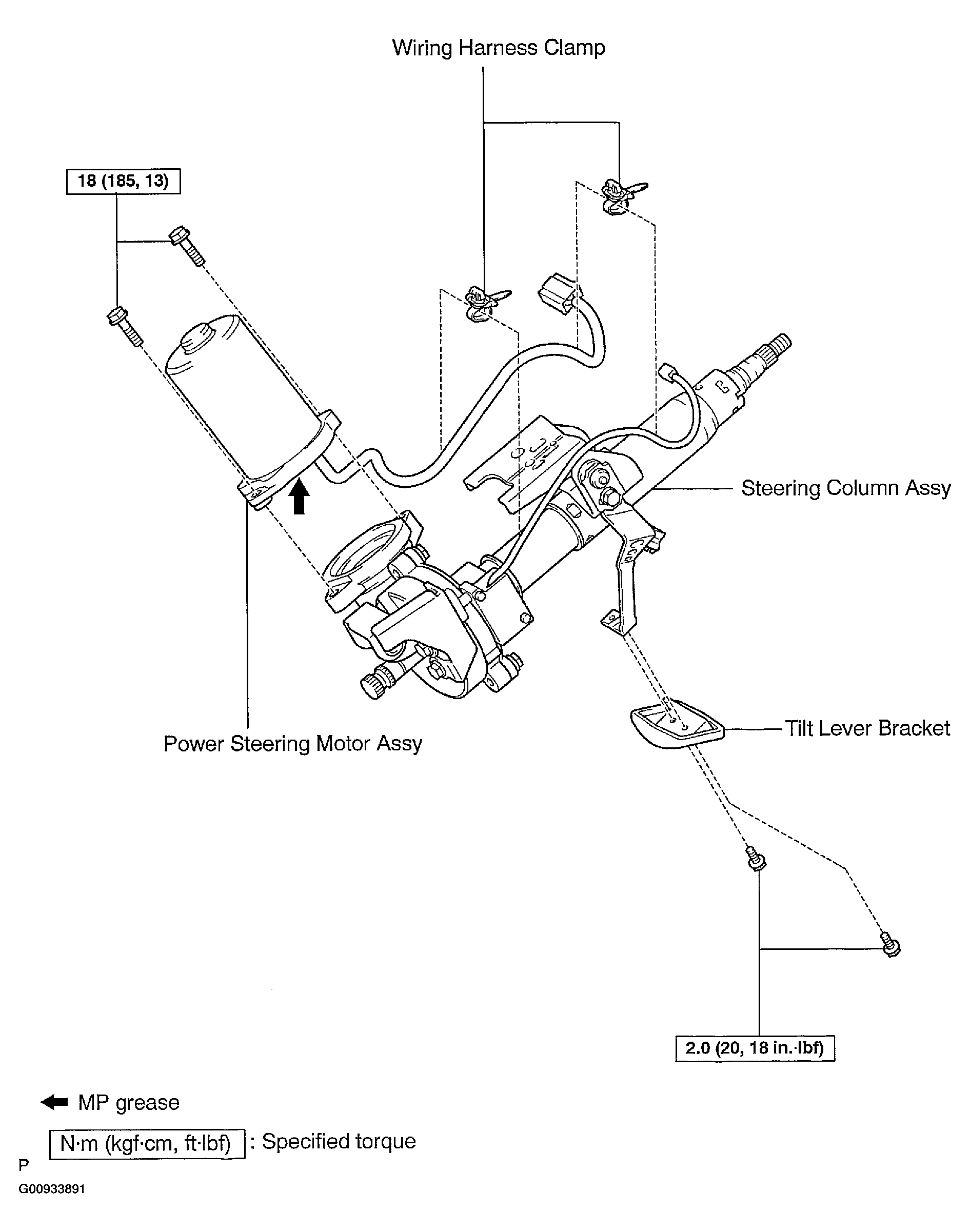

Fig 2: Identifying Steering Column Assy Components (2 of 2)
G00933891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
