Section 1040 (Network Gateway Ecu): Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal

REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
HINT:

Refer to INSTRUMENT PANEL SUB-ASSY .
REMOVE NETWORK GATEWAY ECU
1. Disconnect the connector.
2. Remove the bolt and network gateway ECU.

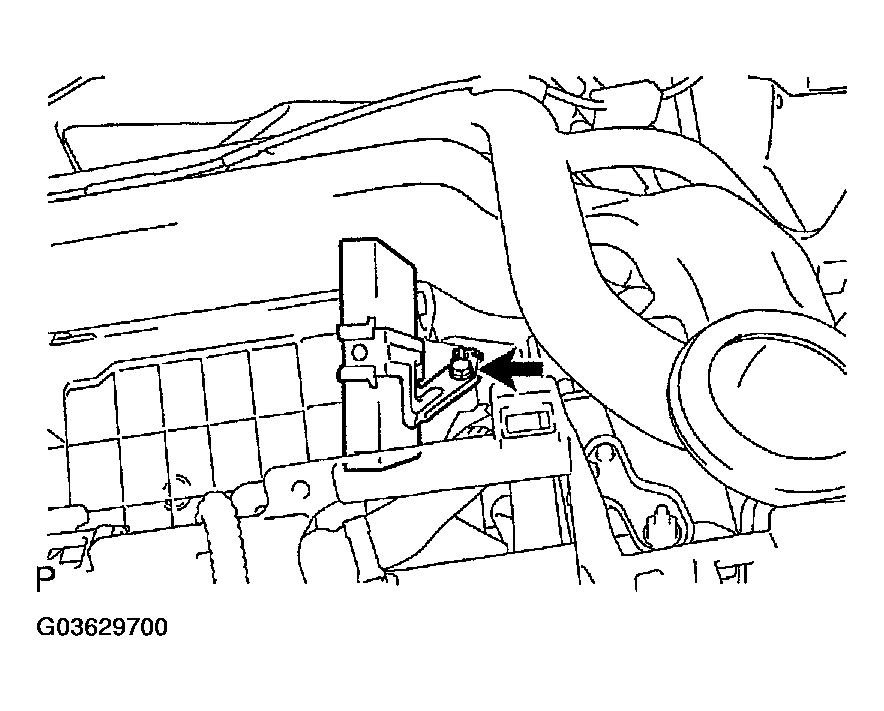

Fig 1: Removing Network Gateway ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
HINT:

Refer to INSTRUMENT PANEL SUB-ASSY .
