Throttle Position Sensor Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

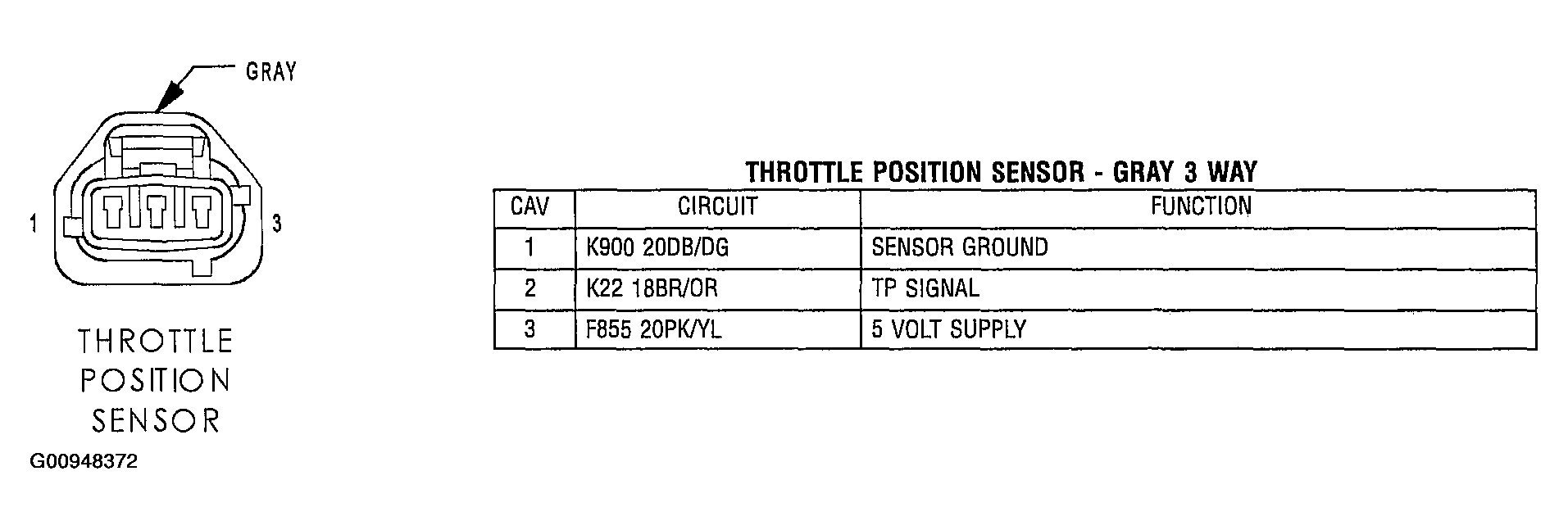

Fig 1: Identifying Throttle Position Sensor - Gray 3 Way Connector
G00948372Courtesy of DAIMLERCHRYSLER CORP.
