Circuit Description

WARNING: This page is about a different car, the 2002 Lexus GS 430 and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

For rear left door power window switch circuit, see Fig 1. For the rear right door power window switch circuit, see Fig 2.

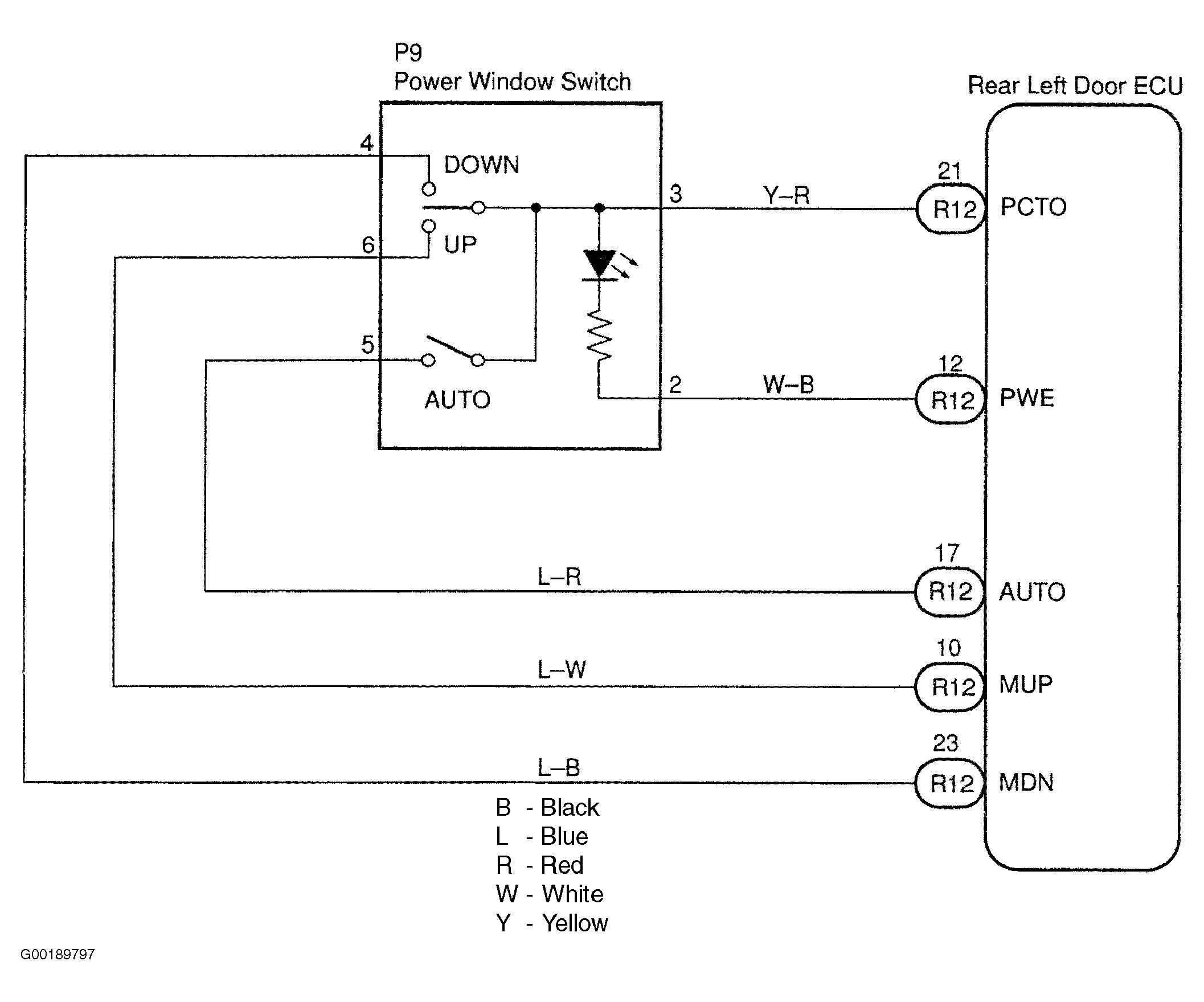

Fig 1: Identifying Rear Left Door Power Window Switch Circuit

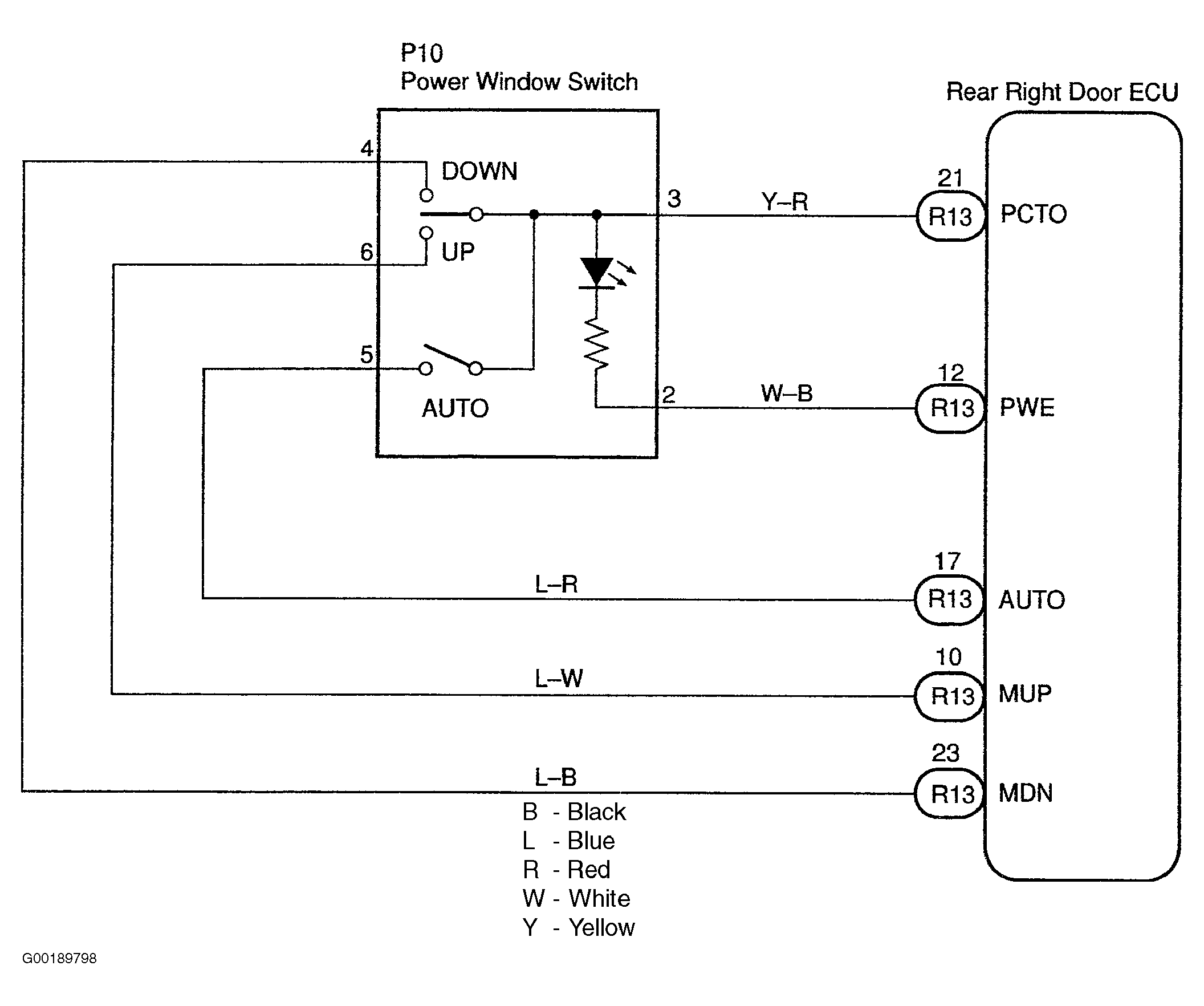

Fig 2: Identifying Rear Right Door Power Window Switch Circuit
