Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For testing procedure, see Fig 1 and Fig 2 .

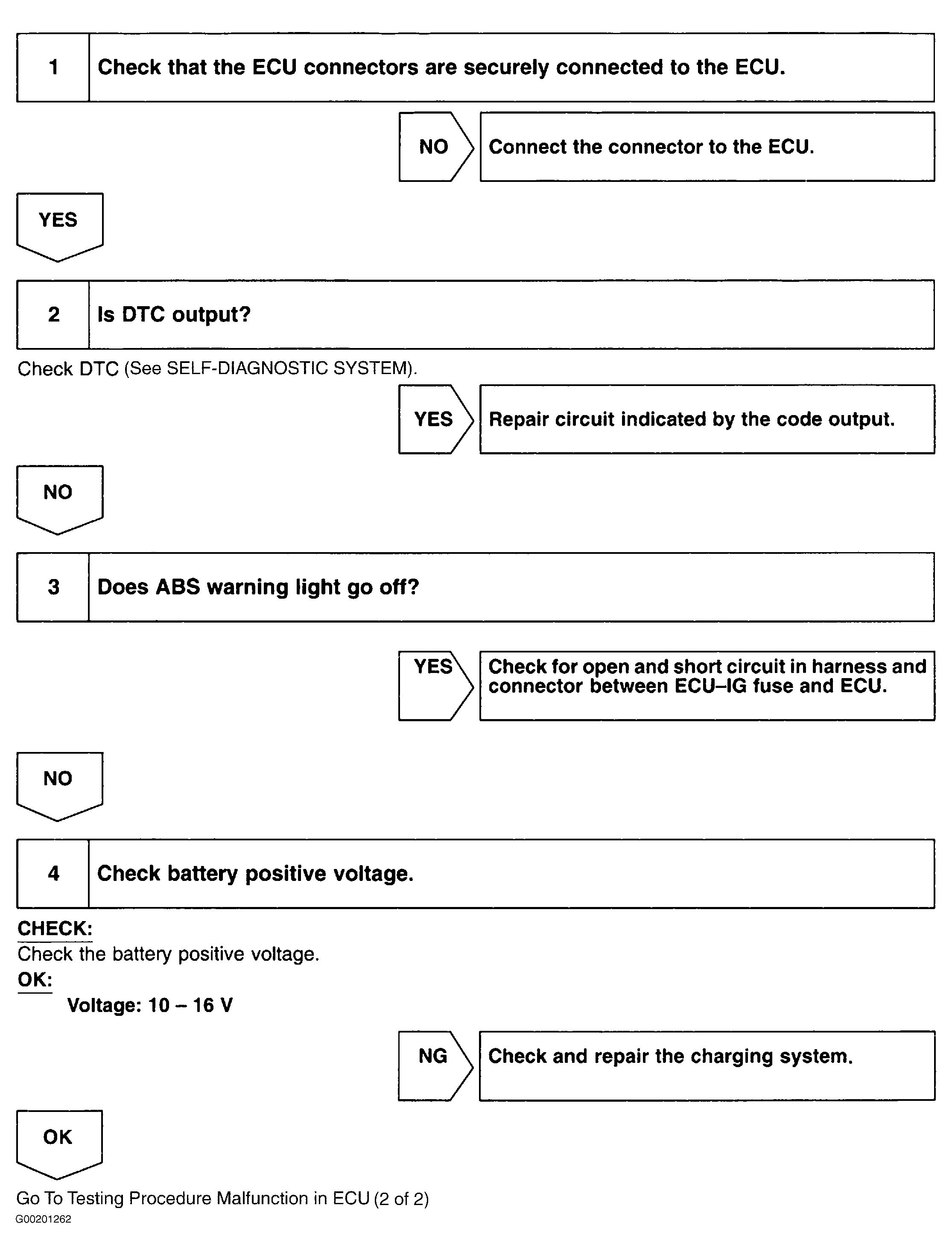

Fig 1: Testing Procedure Malfunction In Skid Control ECU (1 Of 2)
G00201262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

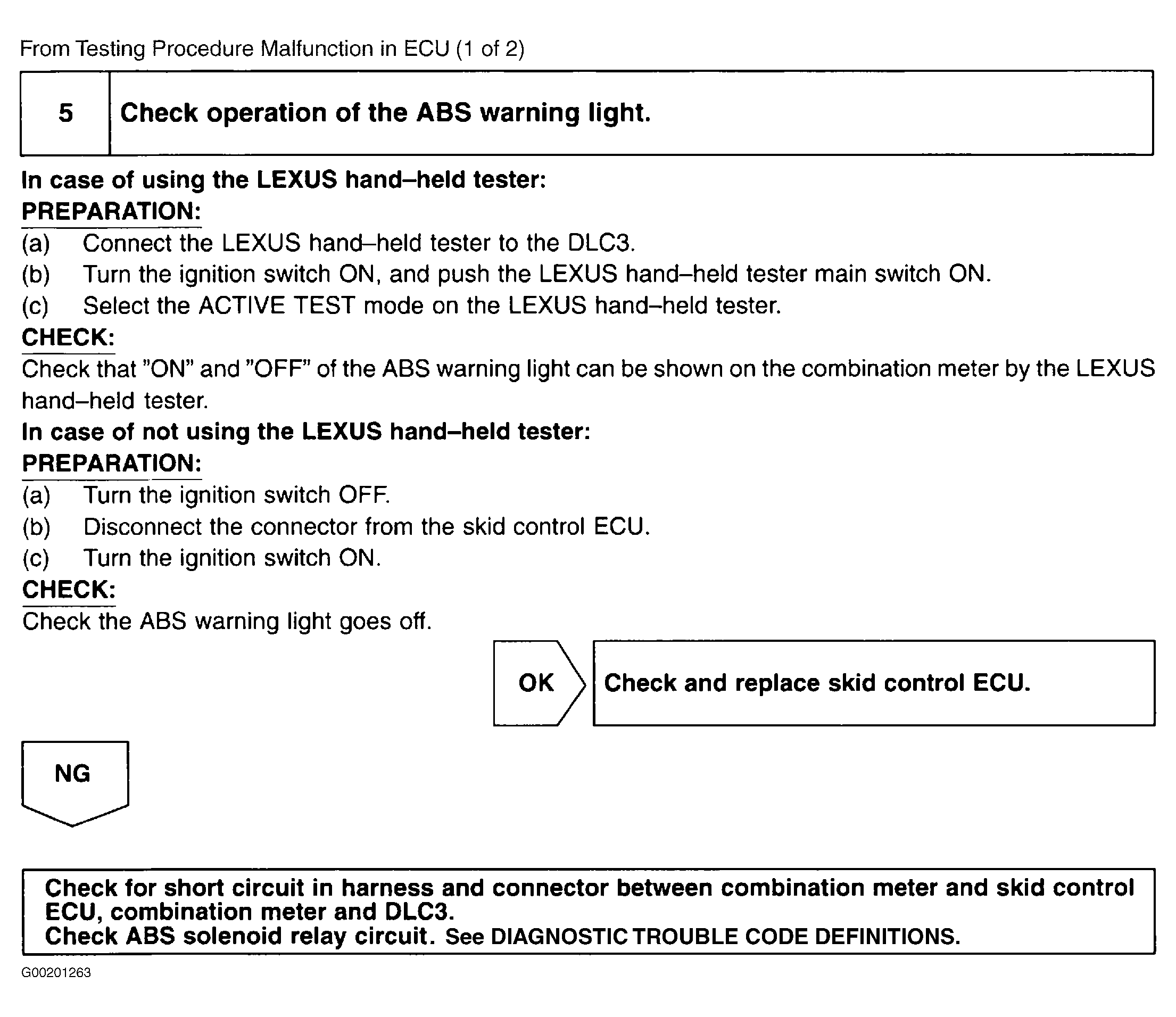

Fig 2: Testing Procedure Malfunction In Skid Control ECU (2 Of 2)
G00201263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
