Circuit Description

WARNING: This page is about a different car, the 2004 Lexus IS 300, 2003 Lexus IS 300, and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

For description see Fig 1.

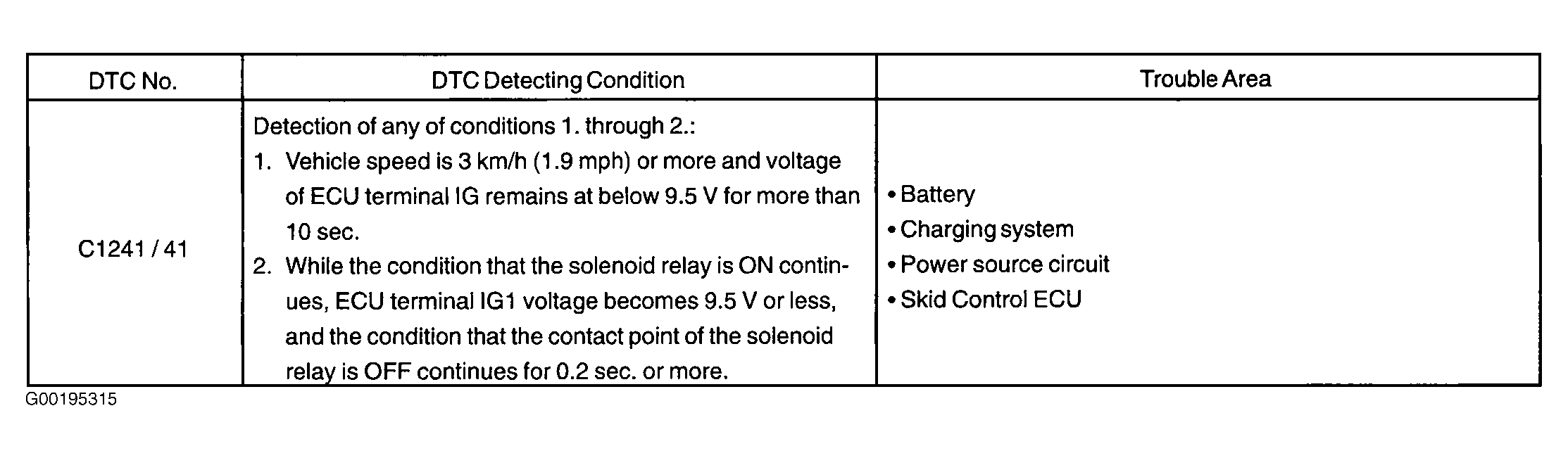

Fig 1: Circuit Description IG Power Source
G00195315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
