Connector Identification

WARNING: This page is about a different car, the 2003 Lexus IS 300 and 2002 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

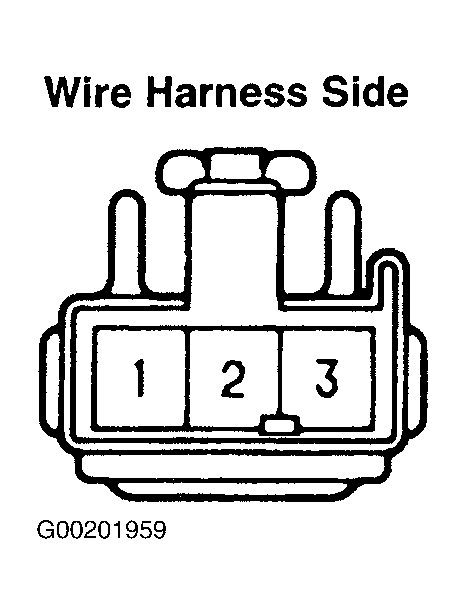

Fig 1: Identifying Front Wiper Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

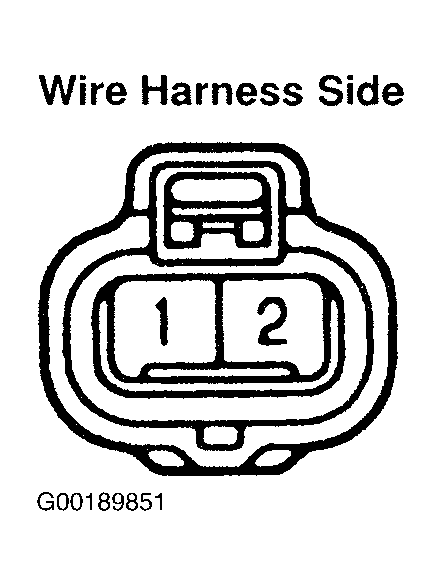

Fig 2: Identifying Headlight Cleaner Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

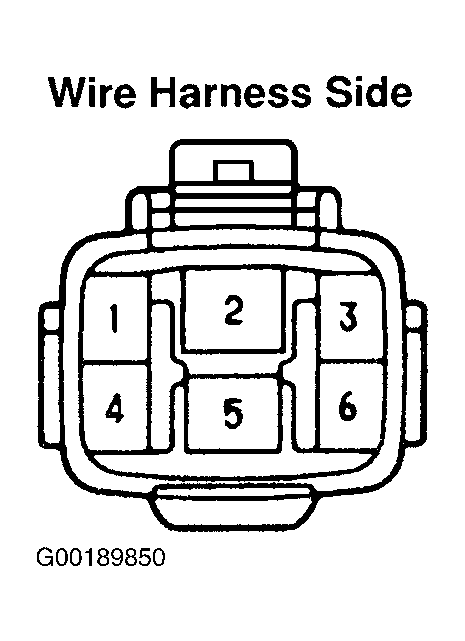

Fig 3: Identifying Headlight Cleaner Relay Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

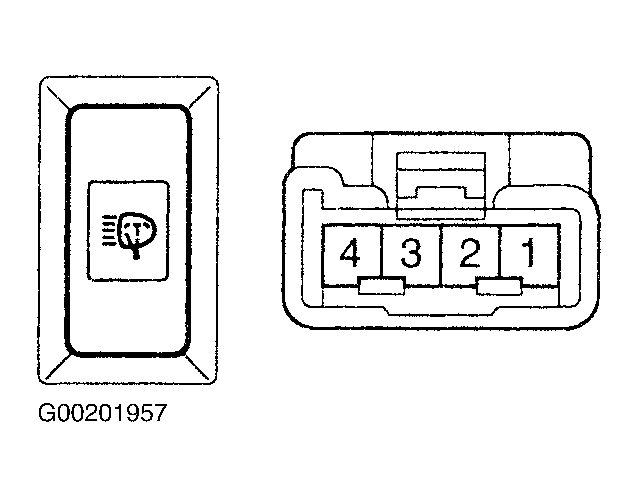

Fig 4: Identifying Headlight Cleaner Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Front Washer Motor (Sedan) & Rear Wiper Motor Connector Terminals

Fig 6: Identifying Front Washer Motor (Wagon) & Rear Washer Motor Connector Terminals

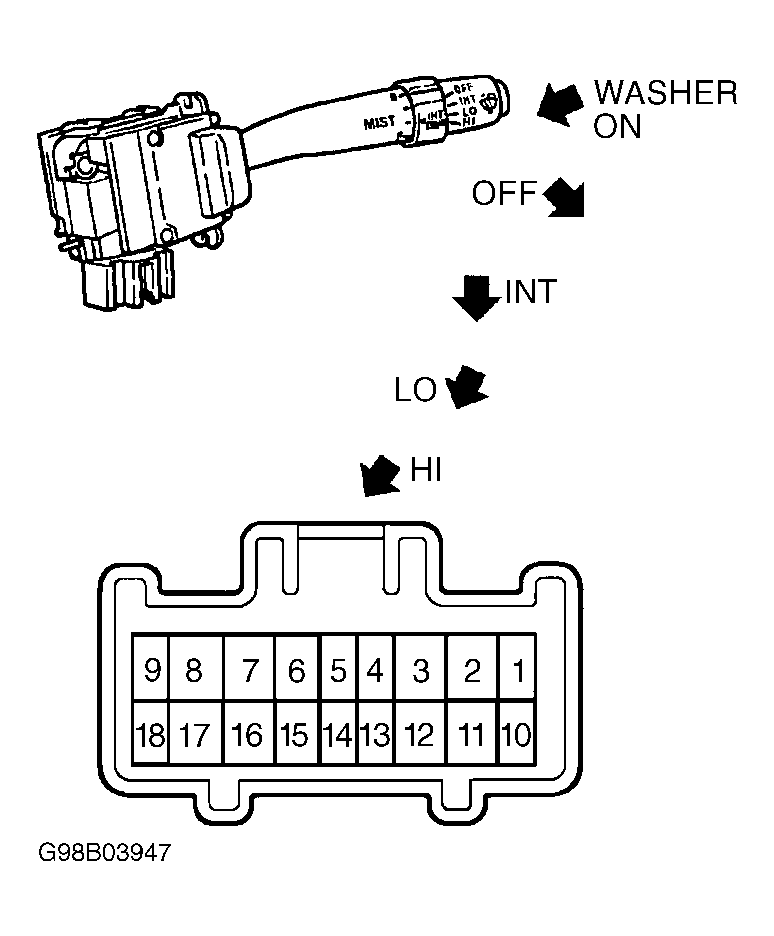

Fig 7: Identifying Wiper/Washer Switch Connector Terminals
