DTC 1566: Input Signal Circuit Abnormal

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 1566 diagnosis, see Fig 1 .

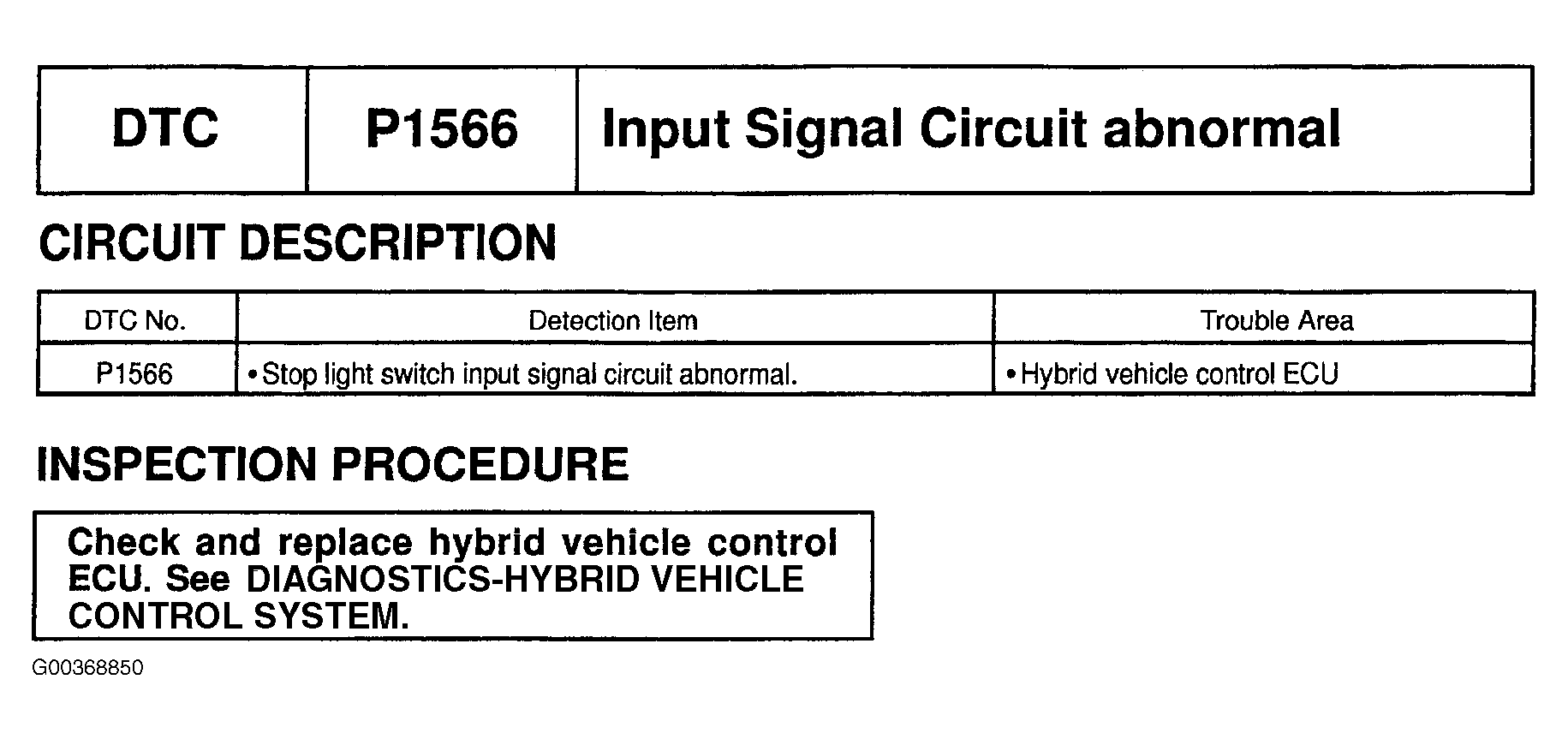

Fig 1: Diagnosing DTC 1566
G00368850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
