DTC 32: Control Switch Circuit (Cruise Control Switch)

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 32: control switch circuit (cruise control switch) diagnostic procedure, see Fig 1-Fig 3 .

Fig 1: Diagnosing DTC 32: (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Diagnosing DTC 32: (2 of 3)

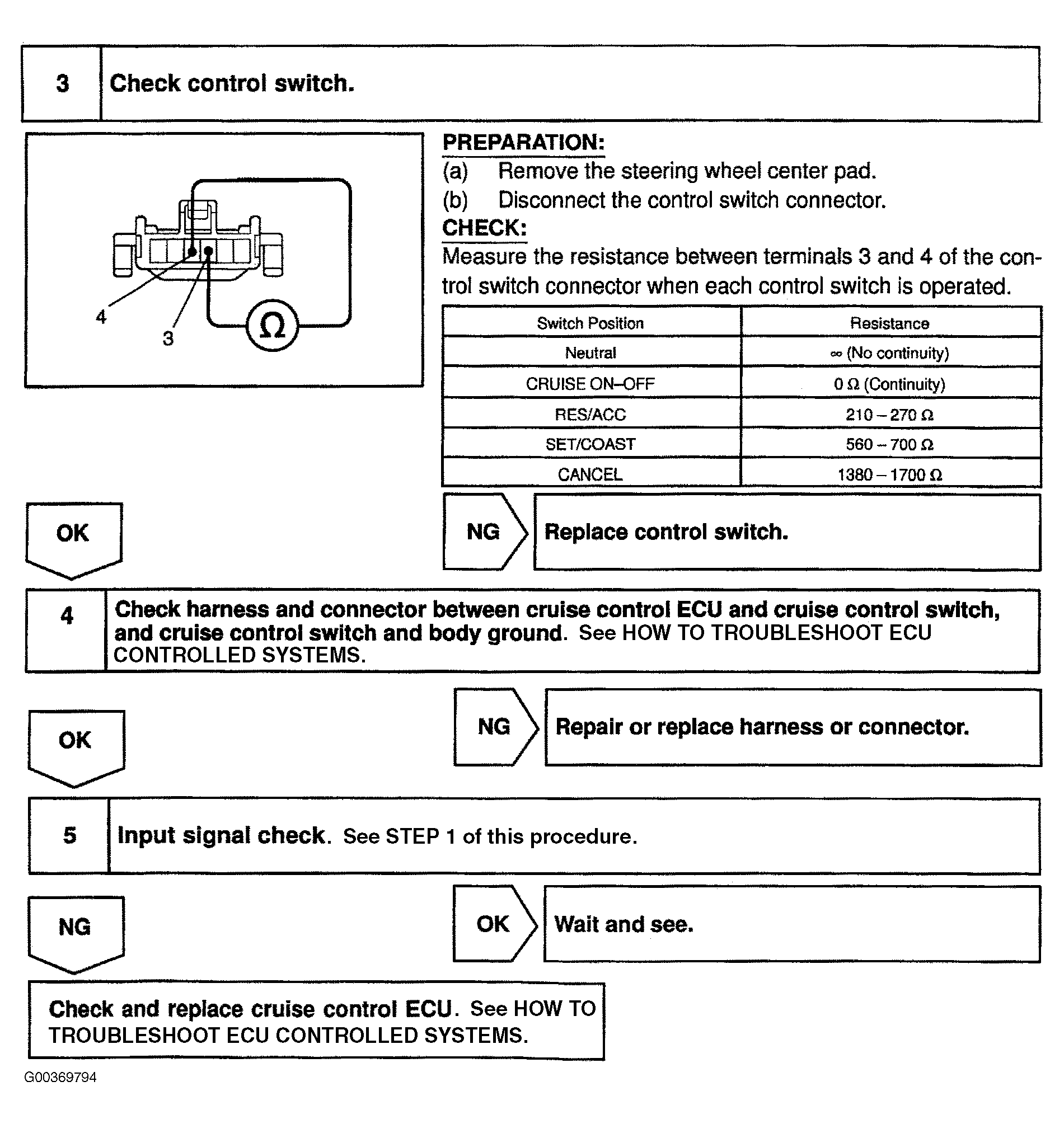

Fig 3: Diagnosing DTC 32: (3 of 3)
