Actuator Control Cable

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For Actuator Control Cable testing procedure, see Fig 1.

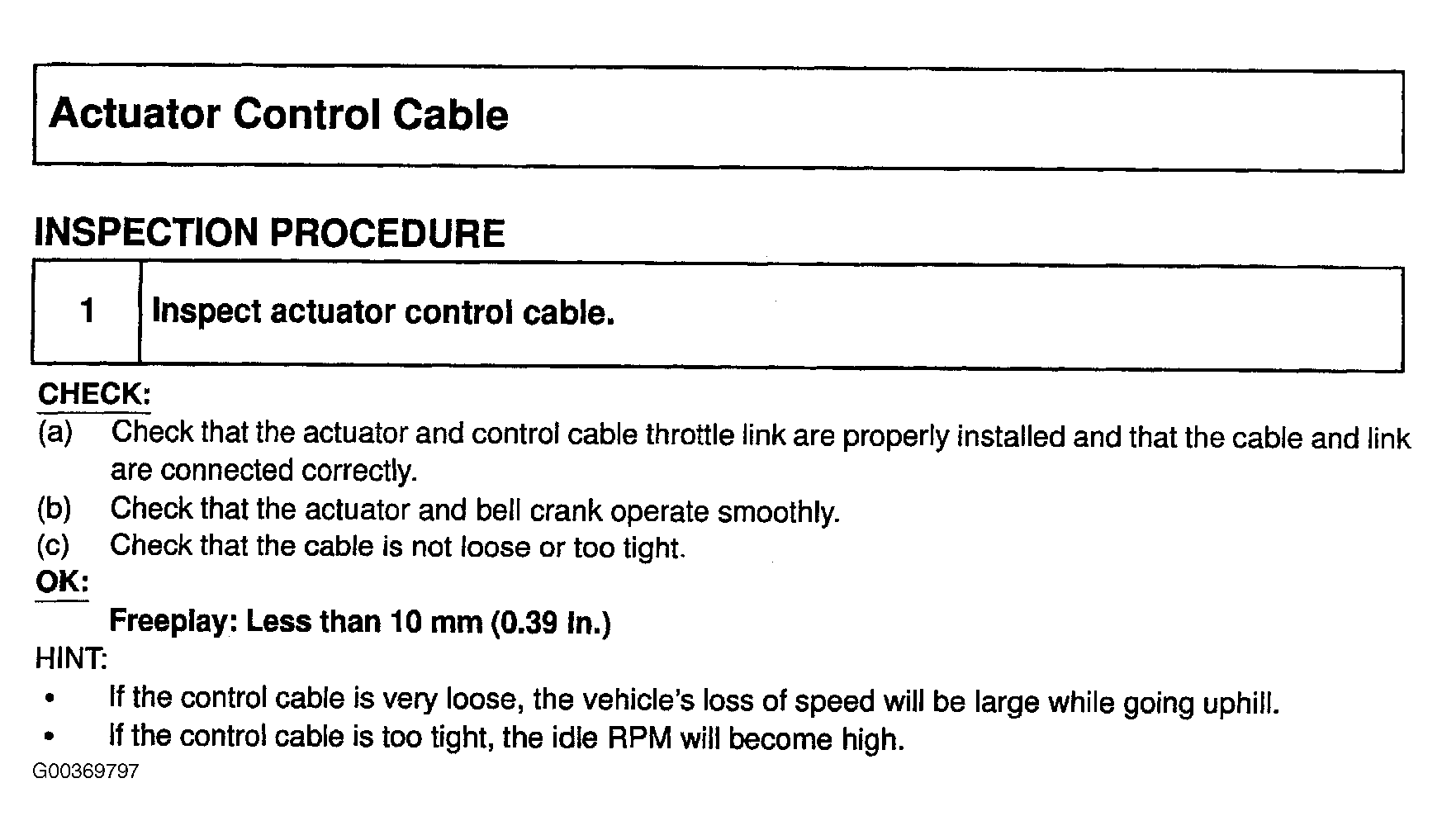

Fig 1: Testing Actuator Control Cable
G00369797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
