Ecu Power Source Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For ECU power source circuit testing procedure, see Fig 1 and Fig 2 . For ECU terminal voltages, see Fig 3 and Figure .

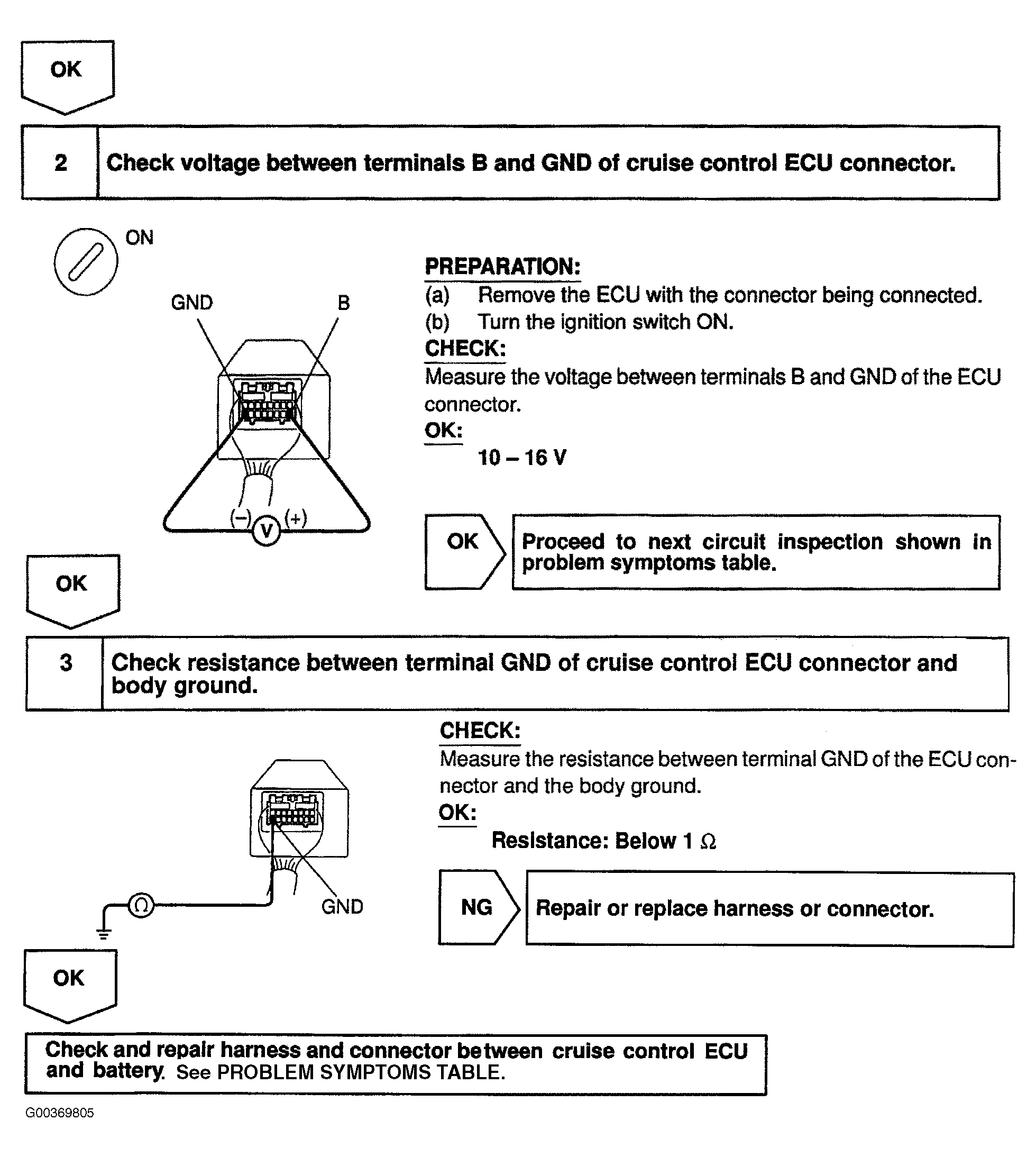

Fig 1: Testing ECU Power Source Circuit (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

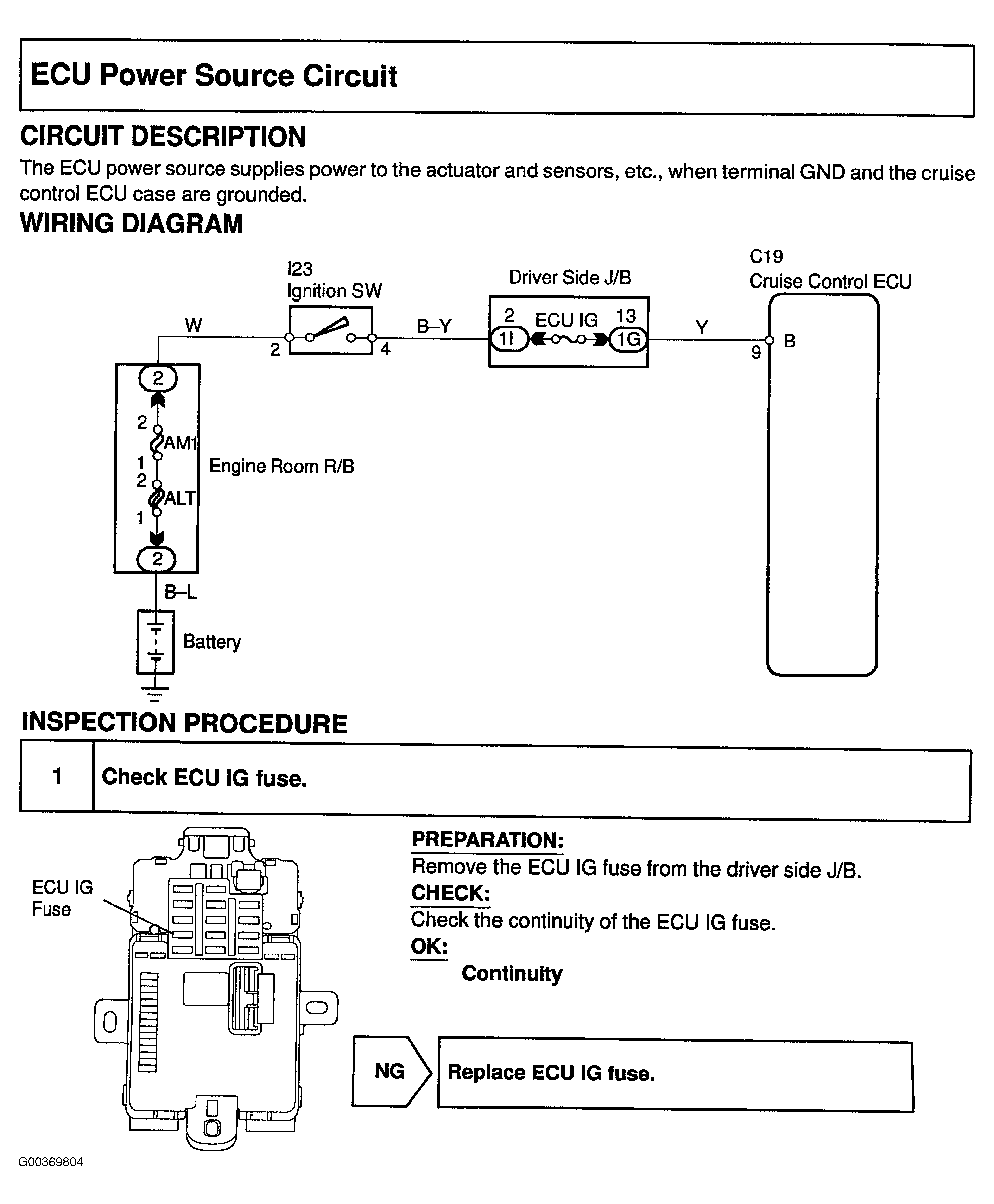

Fig 2: Testing ECU Power Source Circuit (2 of 2)

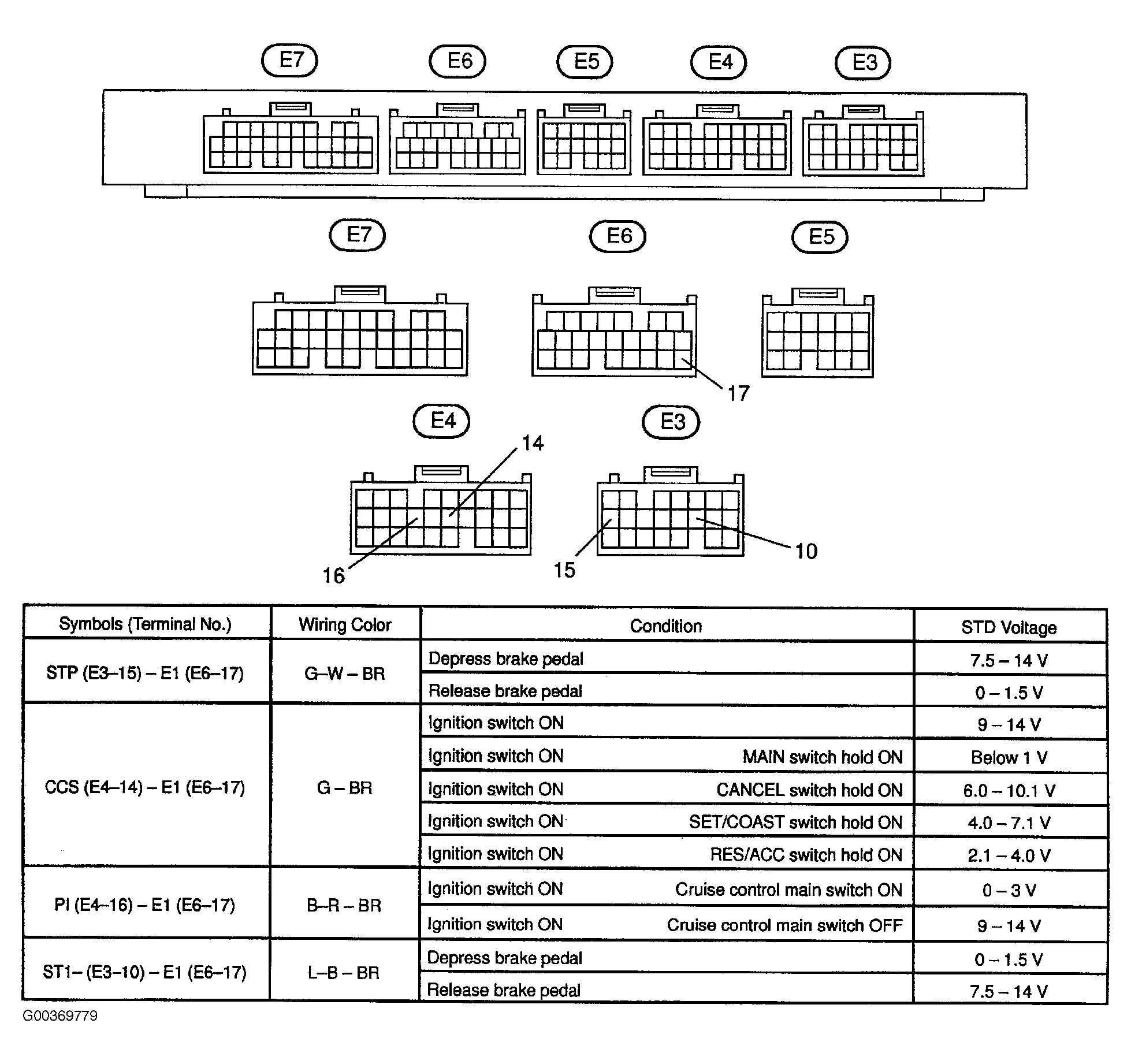

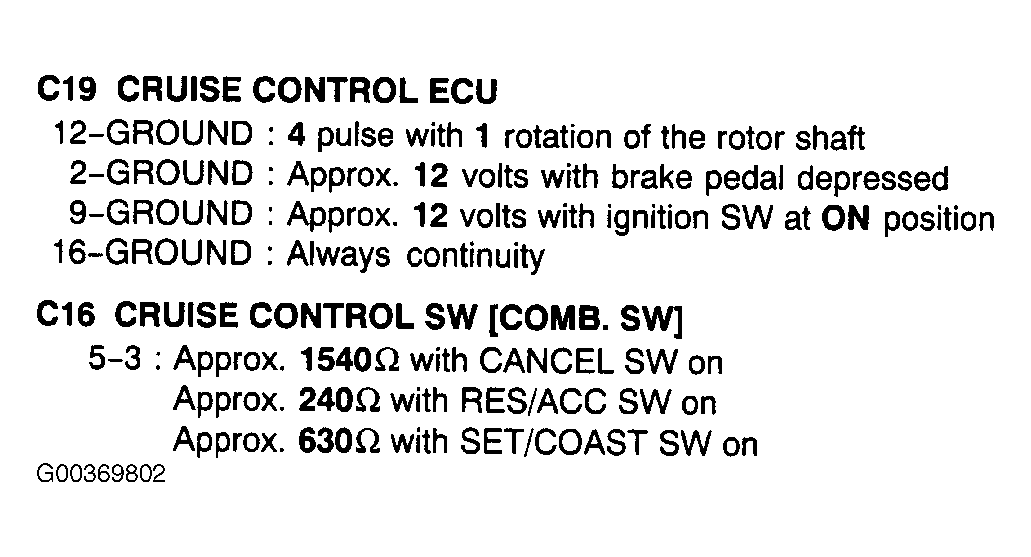

Fig 3: Identifying ECU Terminal Voltages
