Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For stop light switch circuit testing procedure, see Fig 1 and Fig 2 .

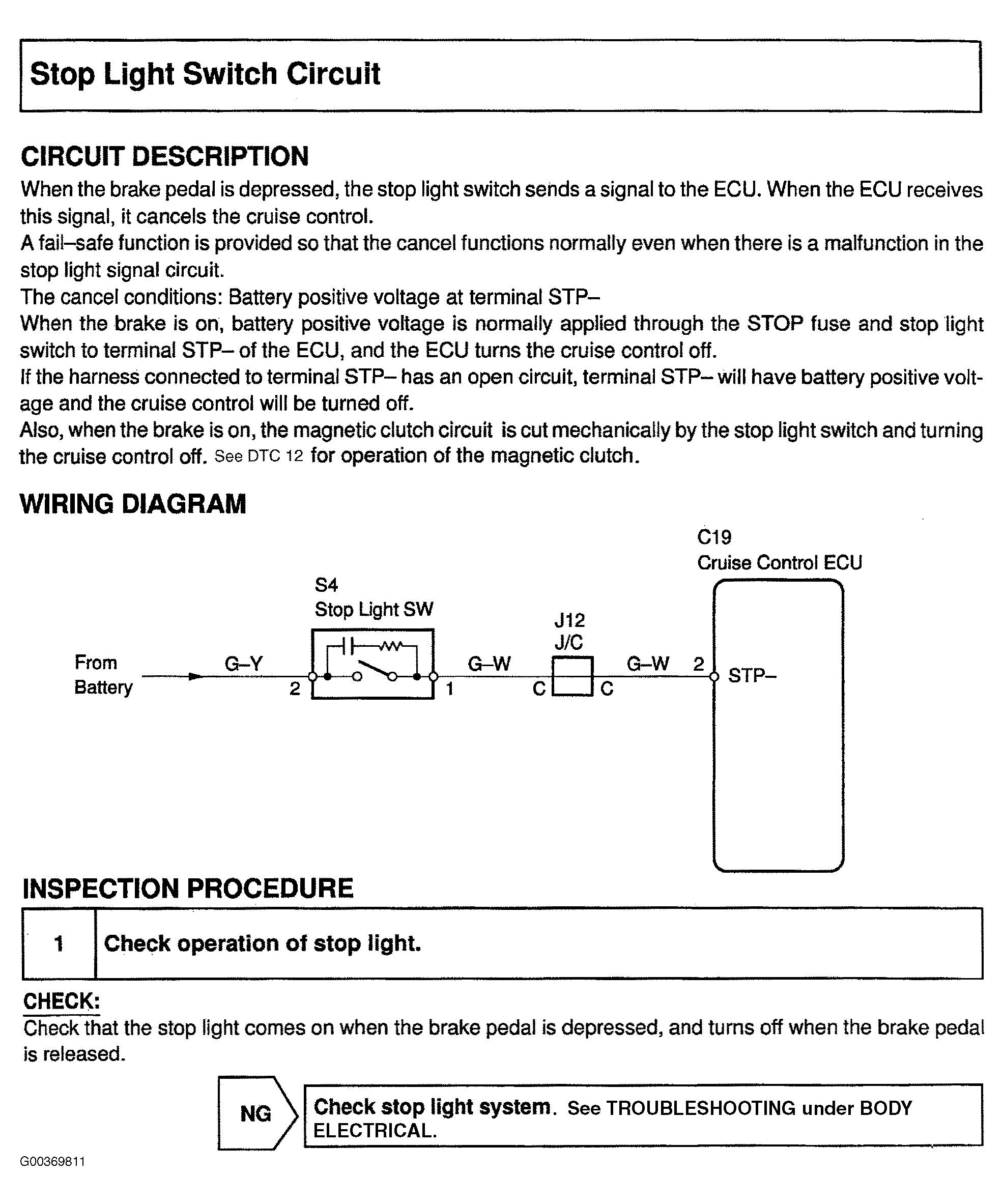

Fig 1: Testing Stop Light Switch Circuit (1 of 2)

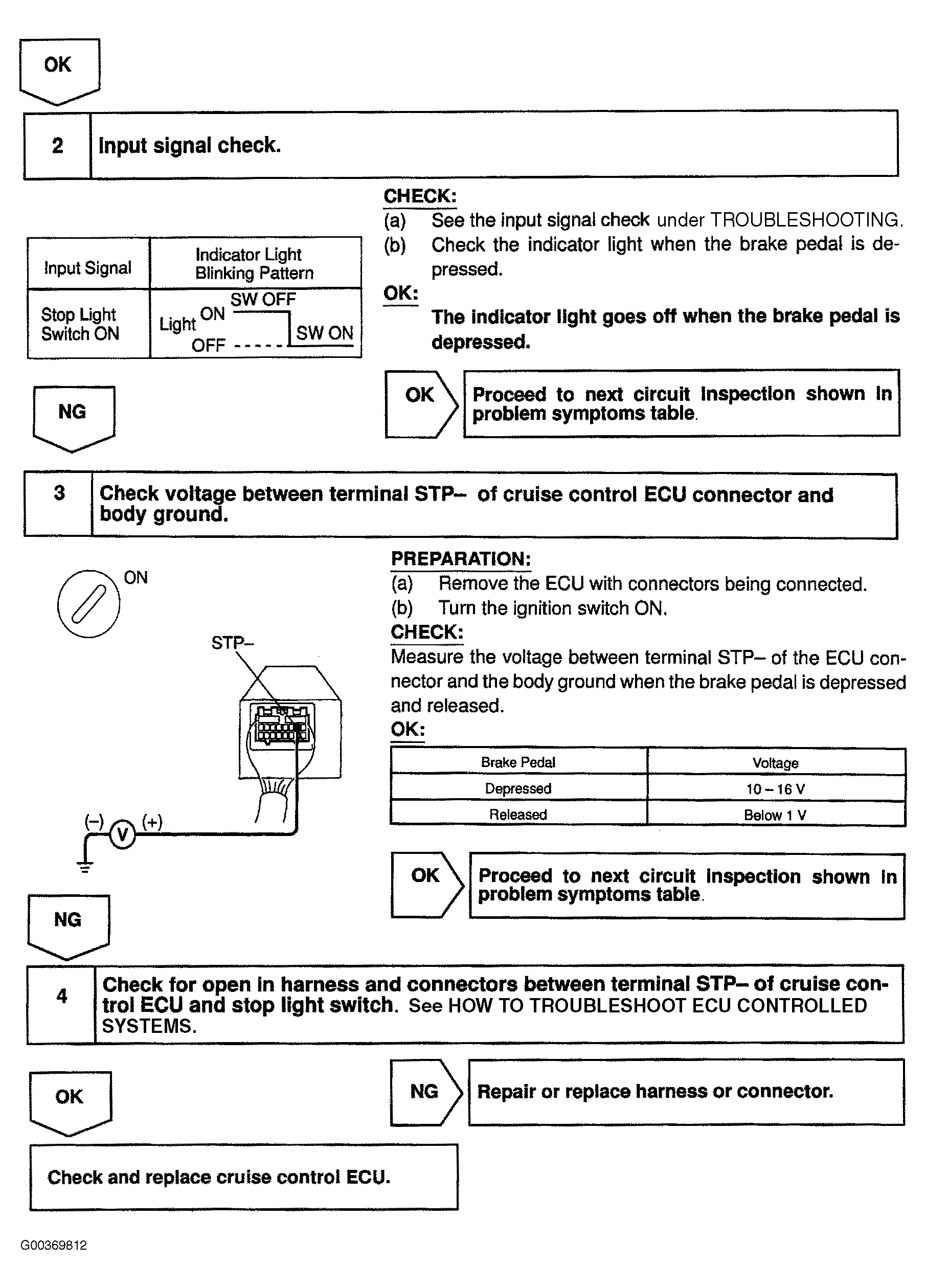

Fig 2: Testing Stop Light Switch Circuit (2 of 2)
