Step 3 - Inspect Mirror Motor Operation

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Connect the positive (+) lead from the battery to terminal 3 and negative (-) lead to terminal 1. Check that the mirror turns to left side.

Fig 1: Testing Mirror Motor (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the polarity, check that the mirror turns to right side.

Fig 2: Testing Mirror Motor (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1. Check that the mirror turns upward.

Fig 3: Testing Mirror Motor (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Reverse the polarity, that the mirror turns downward.

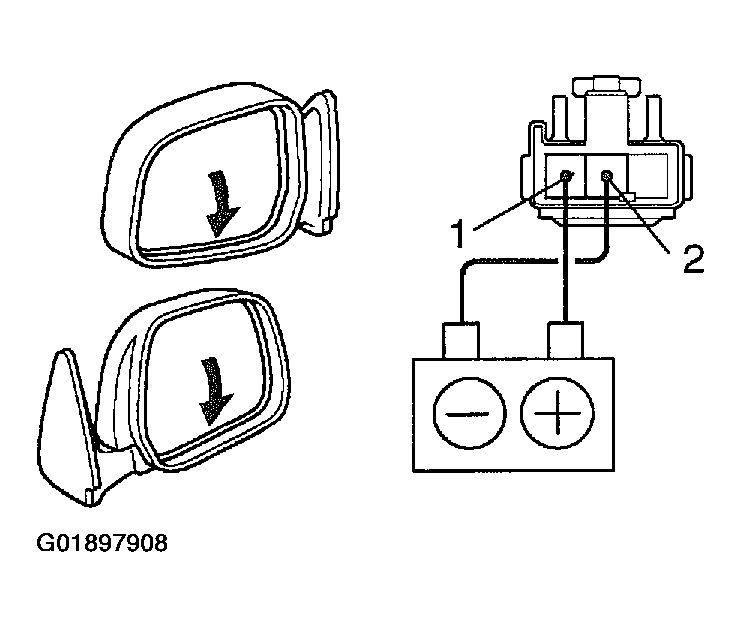

Fig 4: Testing Mirror Motor (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the mirror assembly.
