Step 2 - W/VSC, Install Steering Angle Sensor Adapter And Steering Angle Sensor
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

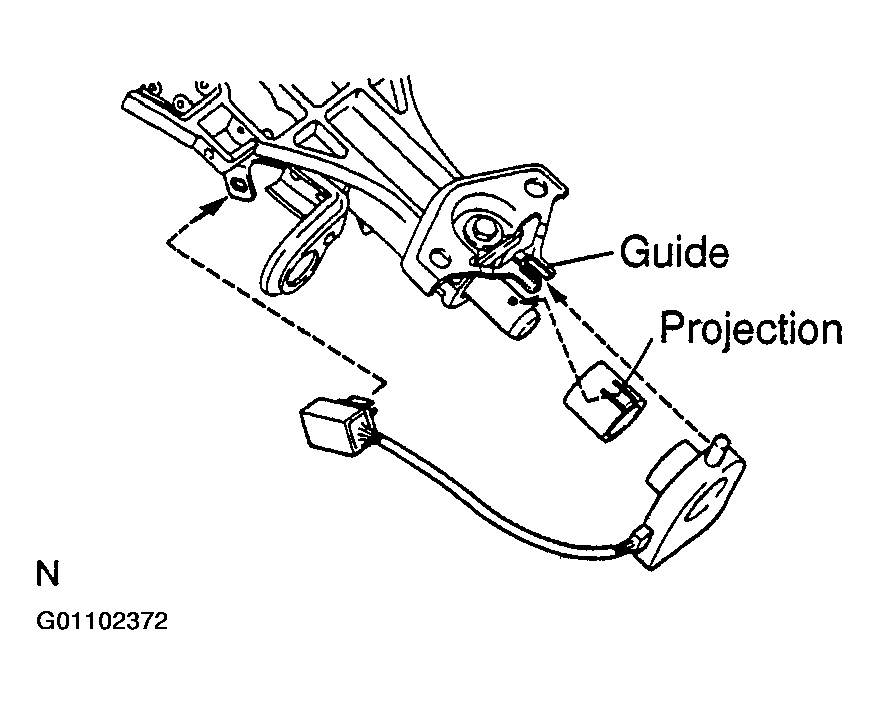

- Fit a projection of the steering angle sensor adapter into a hole in the steering column shaft.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Set a projection of the steering angle sensor in the guide of the steering column and fix the steering angle sensor.
