Step 13 - Remove Steering Column Assembly

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nut and return spring.

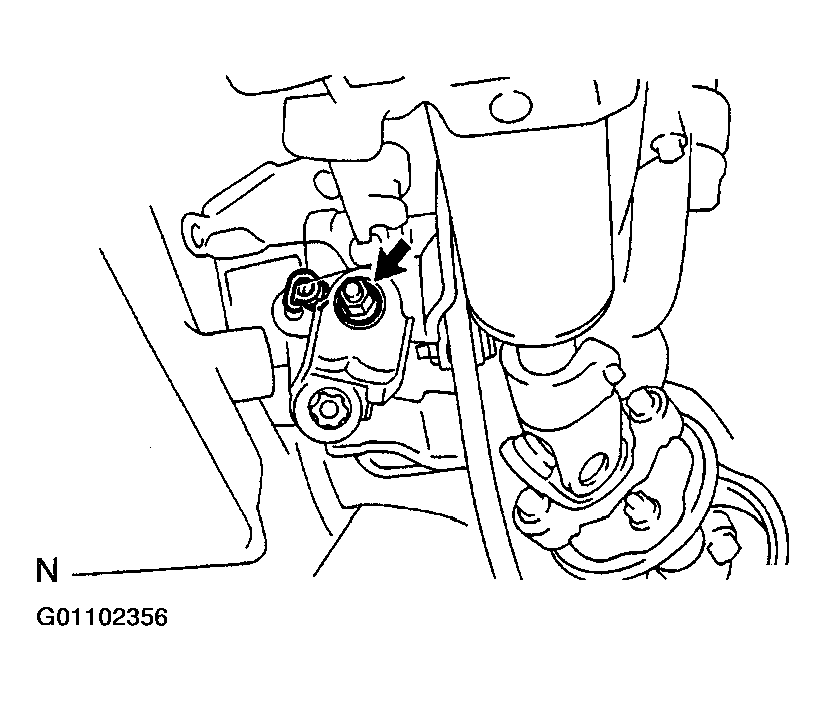

    Fig 1: Locating Return Spring Retainer Mounting Bolt
    G01102356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the connectors.
  3. Remove the 4 nuts and steering column assembly.
