(1) - Inspect Radio Receiver Assembly Circuit
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

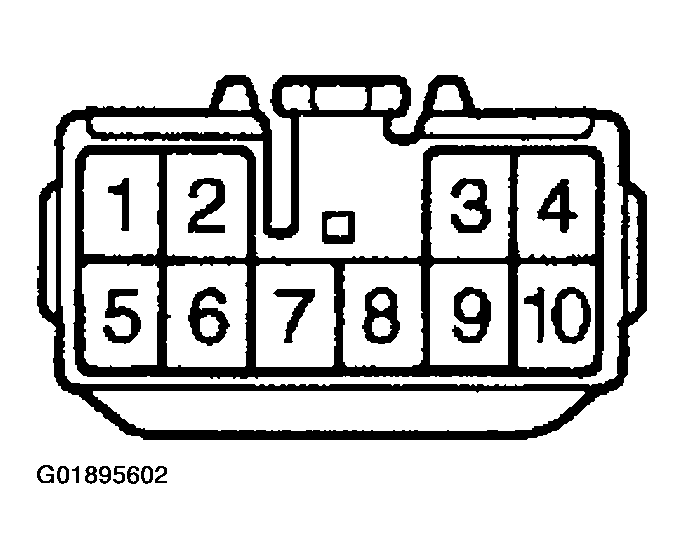

Connect the connector from radio receiver assembly and inspect the connector on the wire harness side.

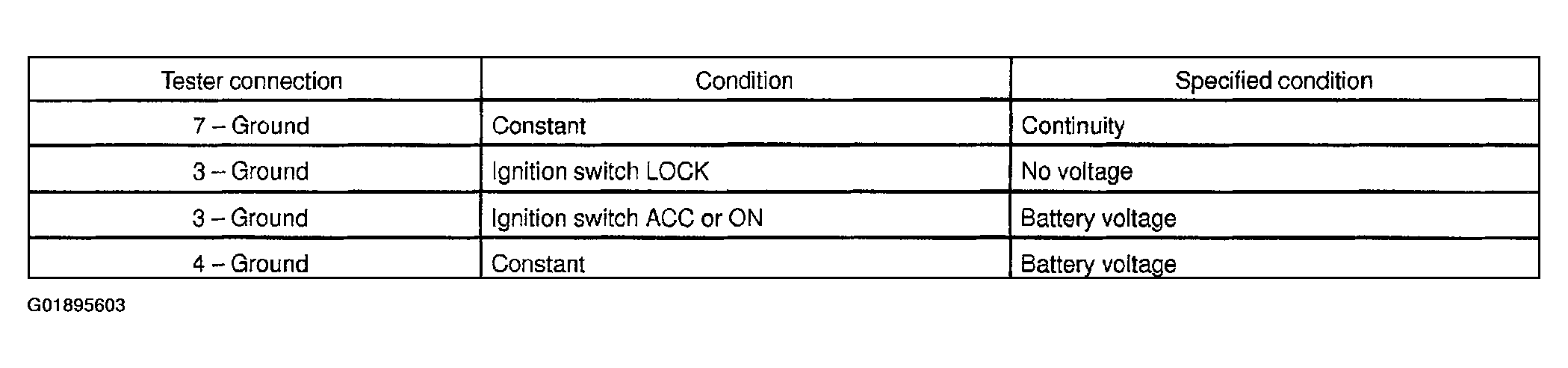

If the circuit is not as specified, inspect the circuits connected to other parts.
