Blower Unit: Installation

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER UNIT
1. Install the blower unit with the 2 screws and 2 nuts.

  Fig 1: Installing Blower Unit With 2 Screws And 2 Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the blower resistor, blower motor connectors and harness clamps to the blower unit.
3. Connect the air inlet servomotor connector.

  Fig 2: Connecting Blower Resistor, Blower Motor Connectors & Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

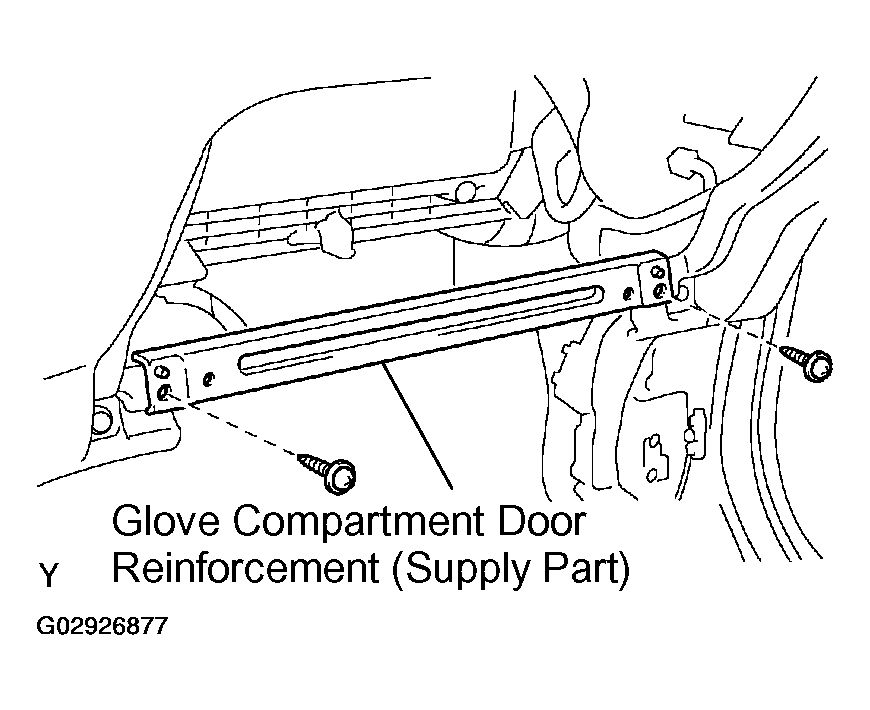

4. Install the glove compartment door reinforcement (supply part) with the 2 screws.
INSTALL GLOVE COMPARTMENT DOOR
