Pressure Switch: Installation

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PRESSURE SWITCH
1. Coat a new O-ring with compressor oil.

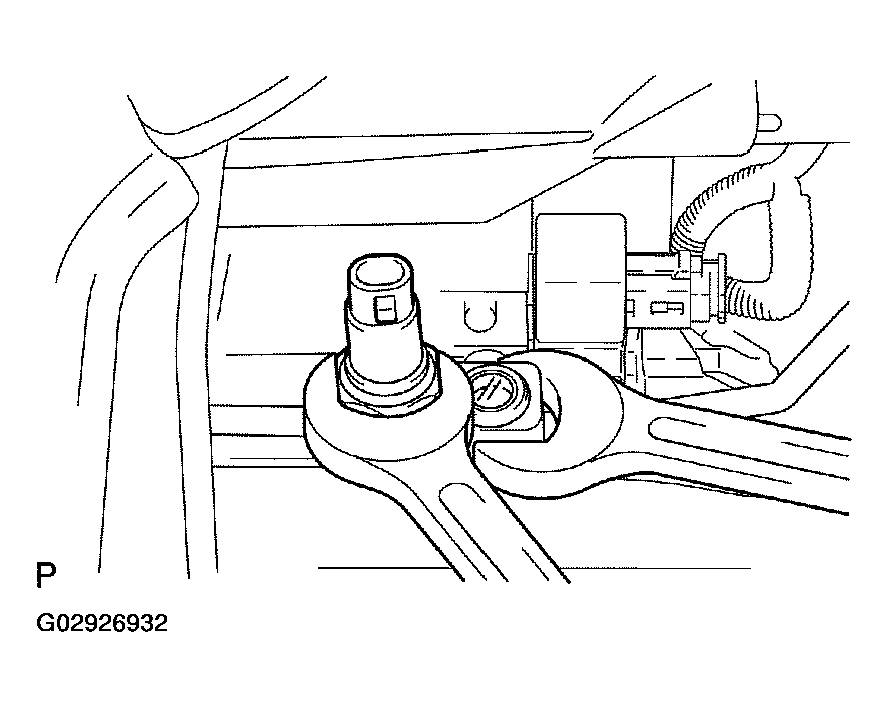

2. Install the pressure switch to the liquid tube.
  Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
CHARGE REFRIGERANT TO REFRIGERANT SYSTEM (See CHARGING )
1. Evacuate air from the refrigeration system.
2. Charge system with refrigerant and inspect for leakage of refrigerant.
  Specified amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
