Section 491 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

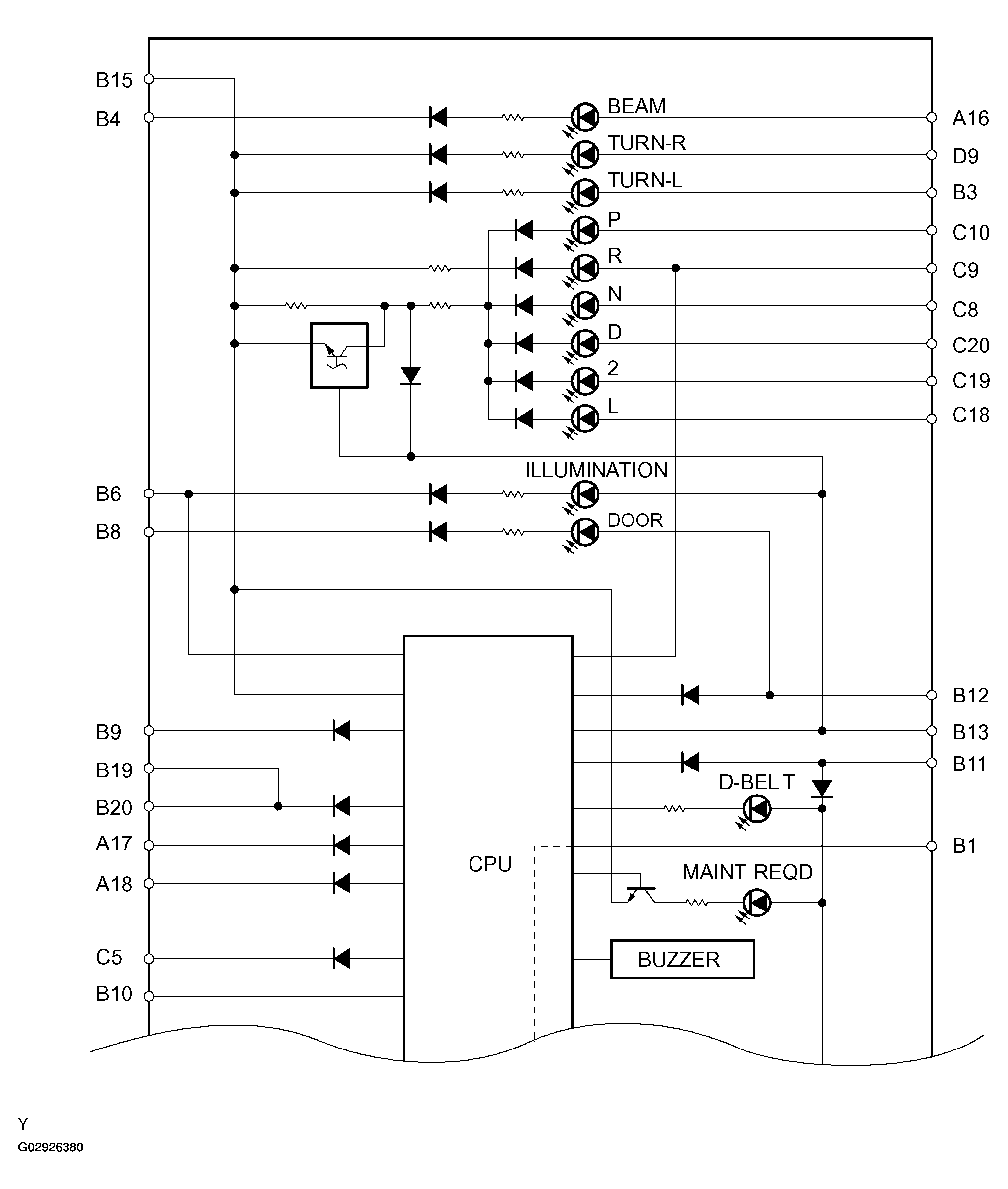

Fig 1: Identifying Combination Meter Circuit Diagram (1 Of 2)
G02926380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

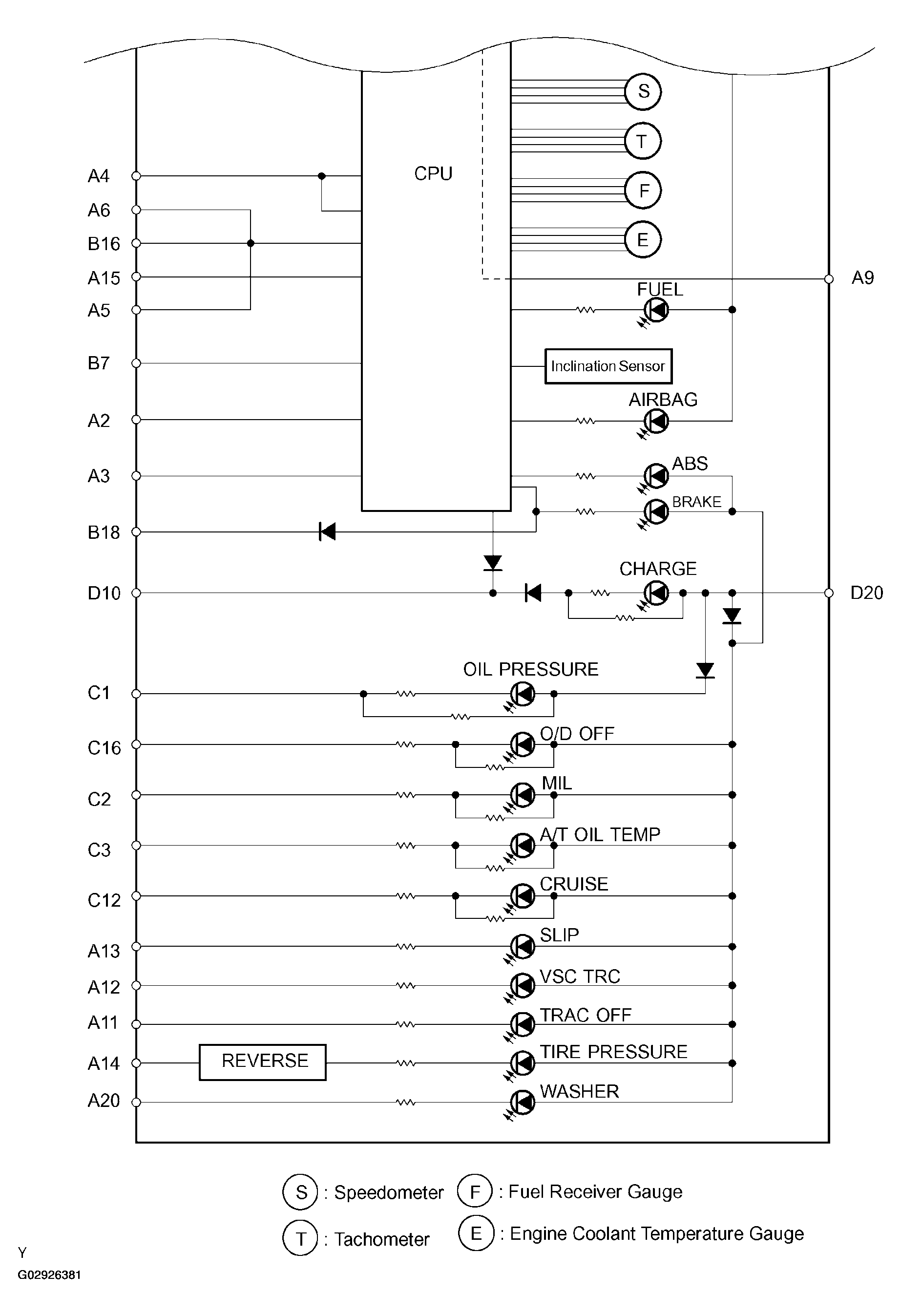

Fig 2: Identifying Combination Meter Circuit Diagram (2 Of 2)
G02926381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

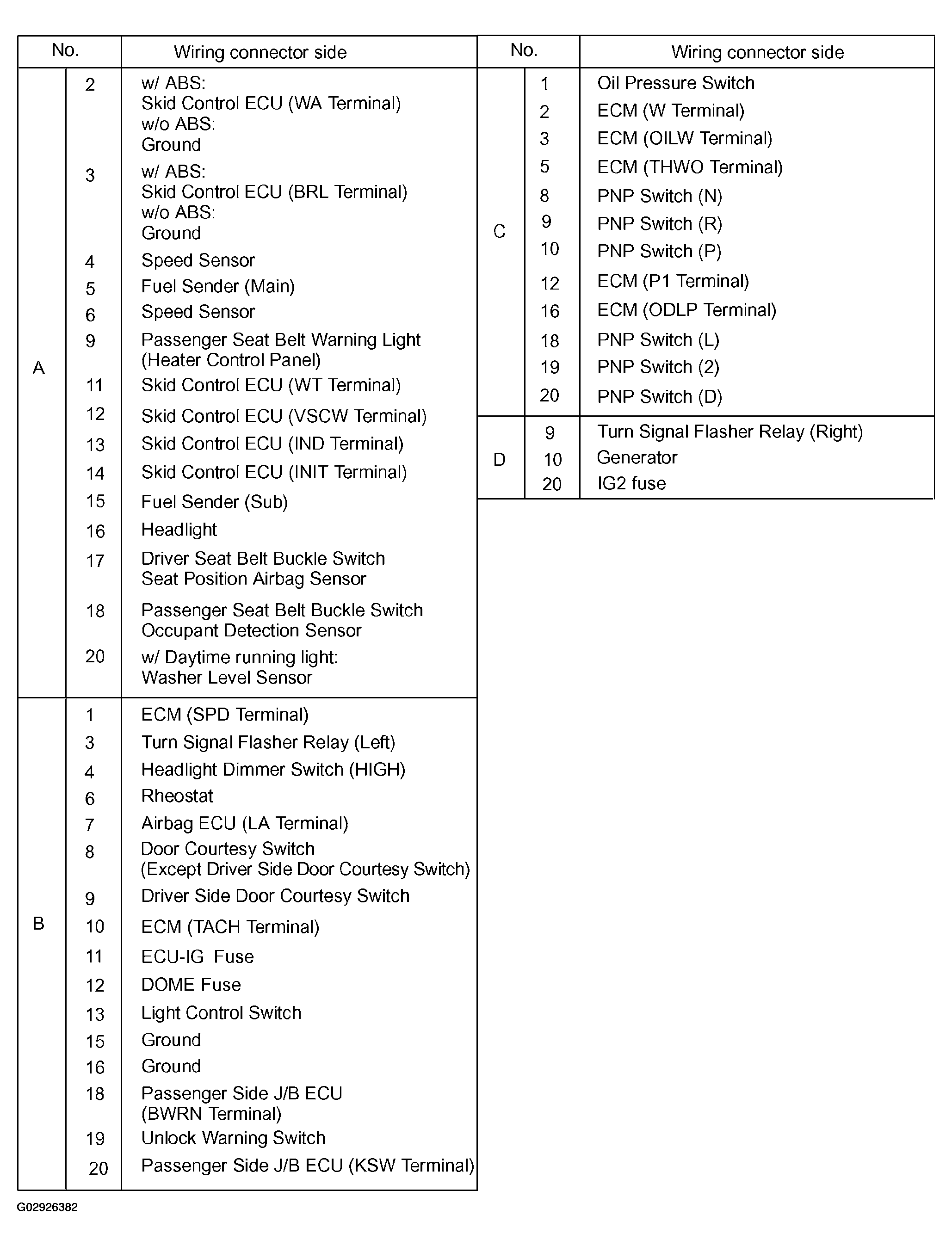

Fig 3: Identifying Wiring Connector Terminal Identification
G02926382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
