Manual Transaxle Unit (2WD): Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

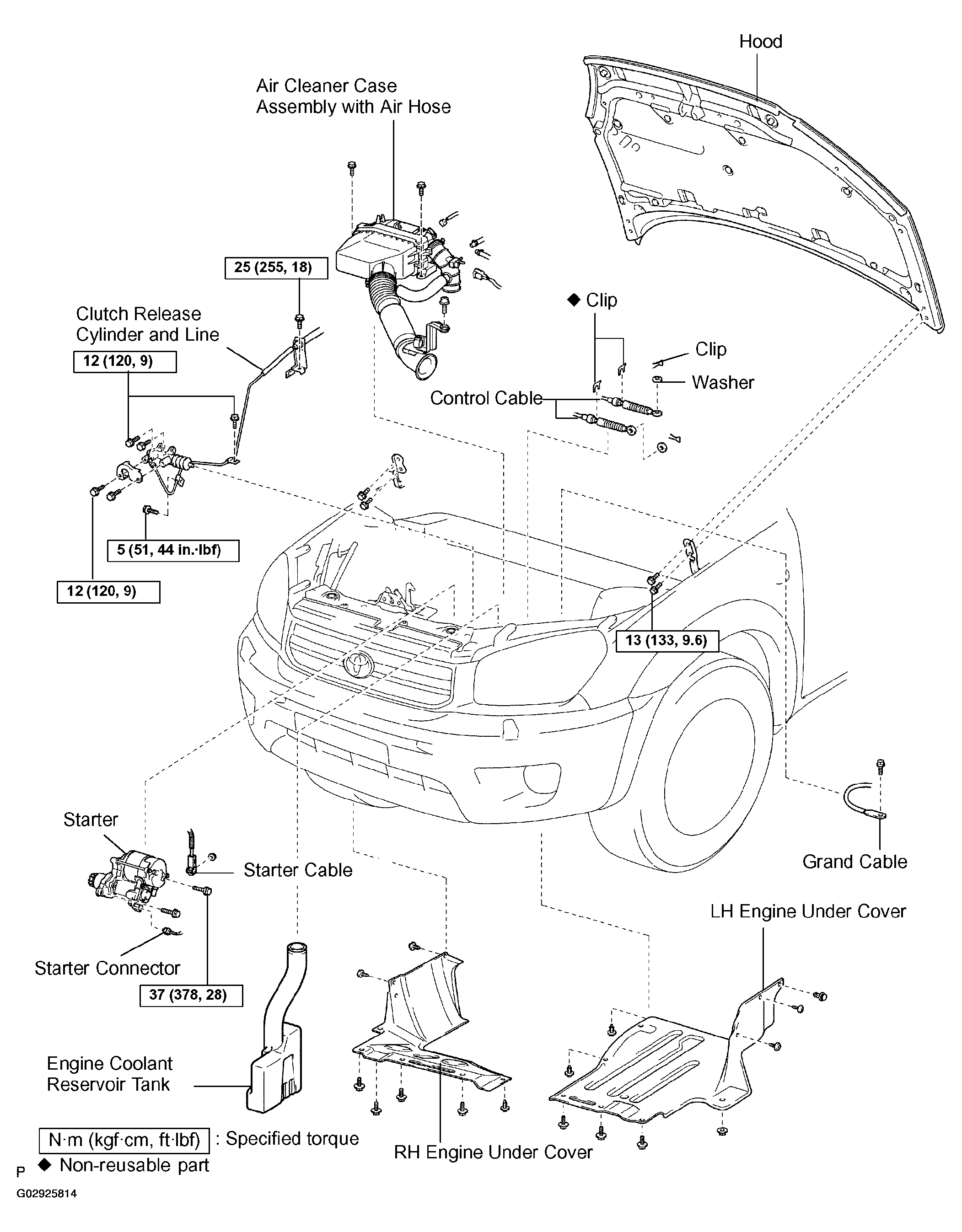

Fig 1: Locating Manual Transaxle Unit 2WD Components (1 Of 2)
G02925814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

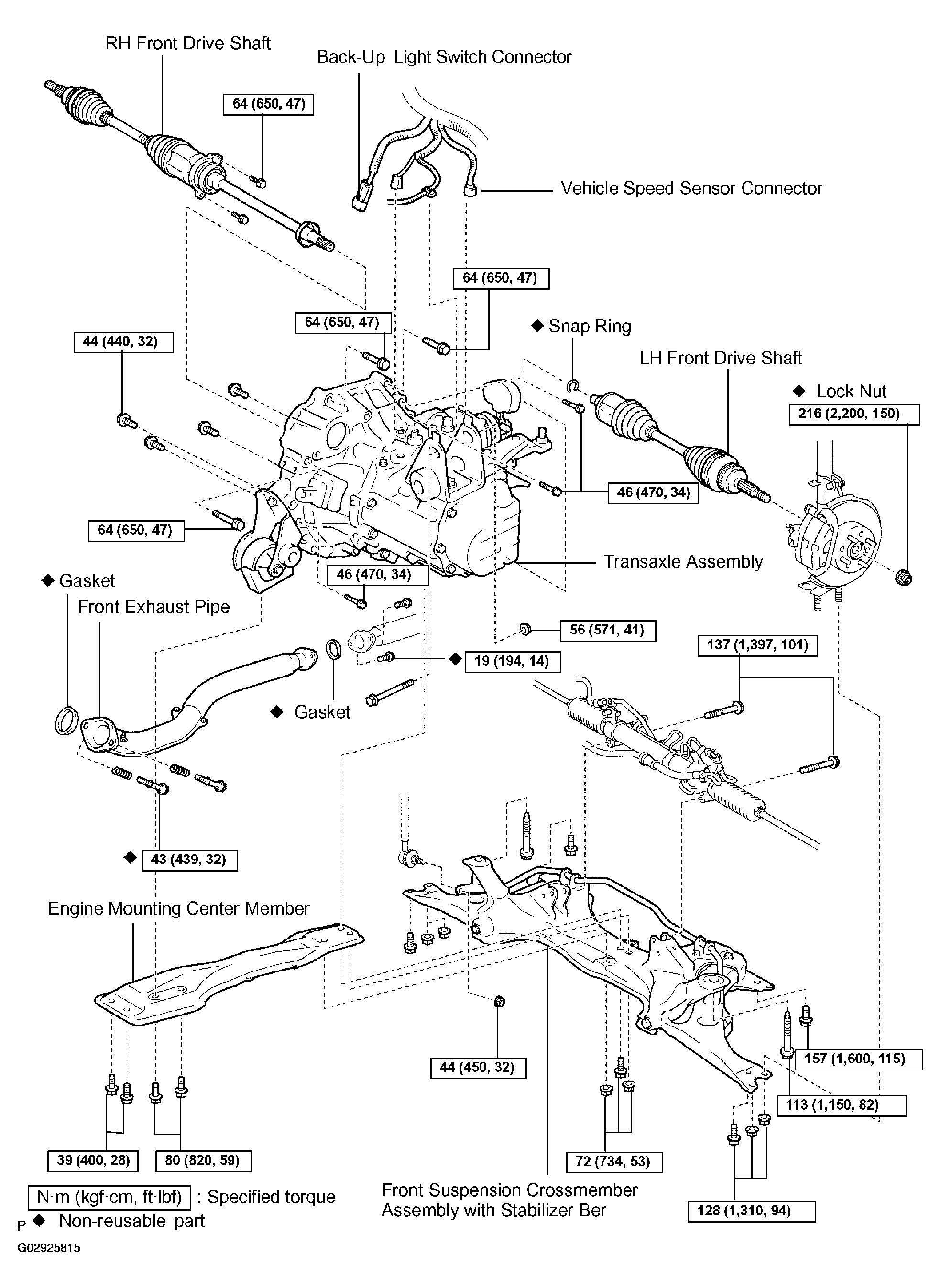

Fig 2: Locating Manual Transaxle Unit 2WD Components (2 Of 2)
G02925815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
