Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

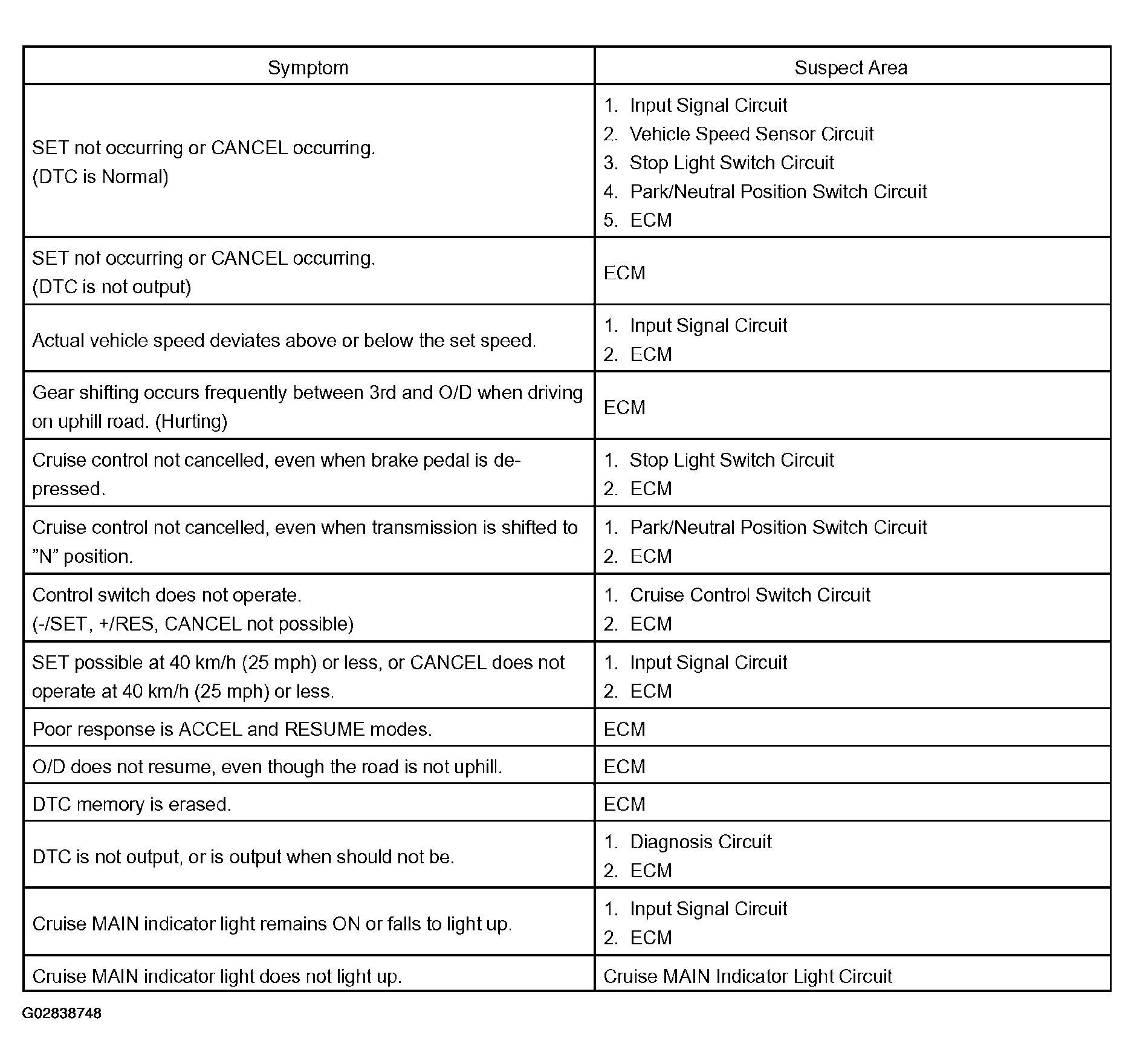

Fig 1: Problem Symptoms Chart
G02838748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC Description
DTC P0500/21, P0503/23  Vehicle Speed Sensor "A" (Intermittent/Erratic/High)
DTC P0571/52  Brake Switch "A" Circuit
DTC P0607/54  Control Module Performance
