Section 577 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

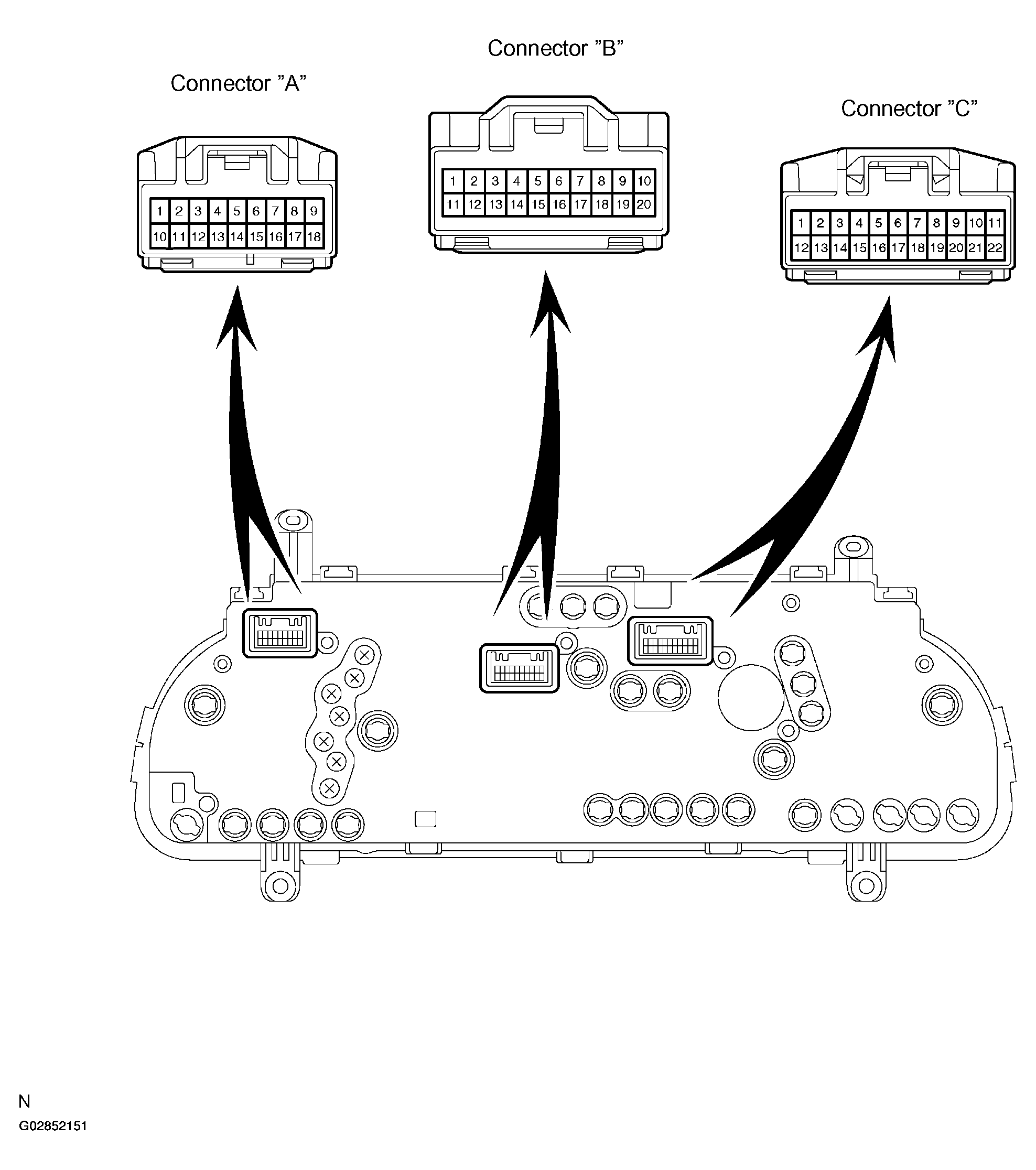

Fig 1: View Of Connector
G02852151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

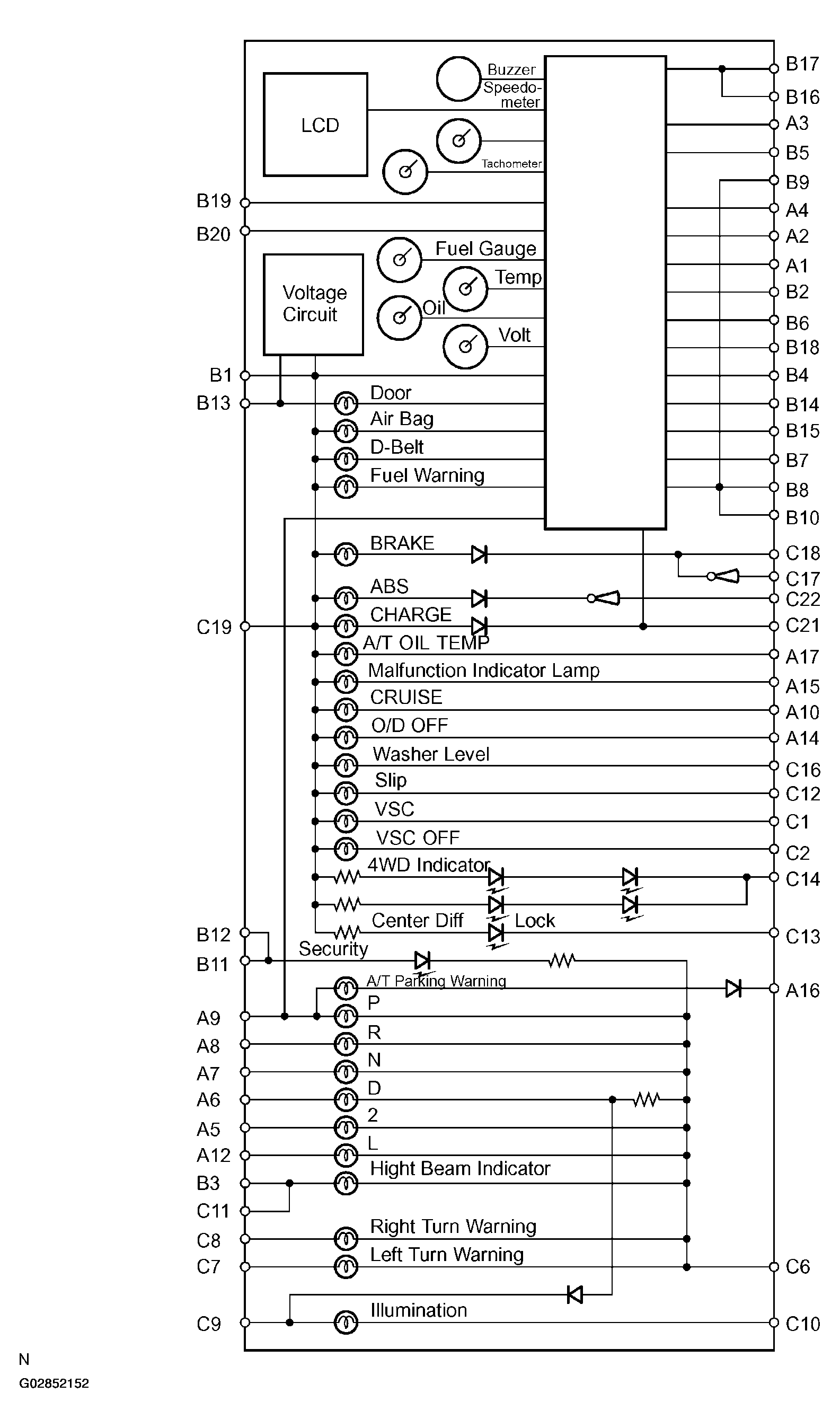

Fig 2: Combination Meter Circuit Diagram
G02852152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

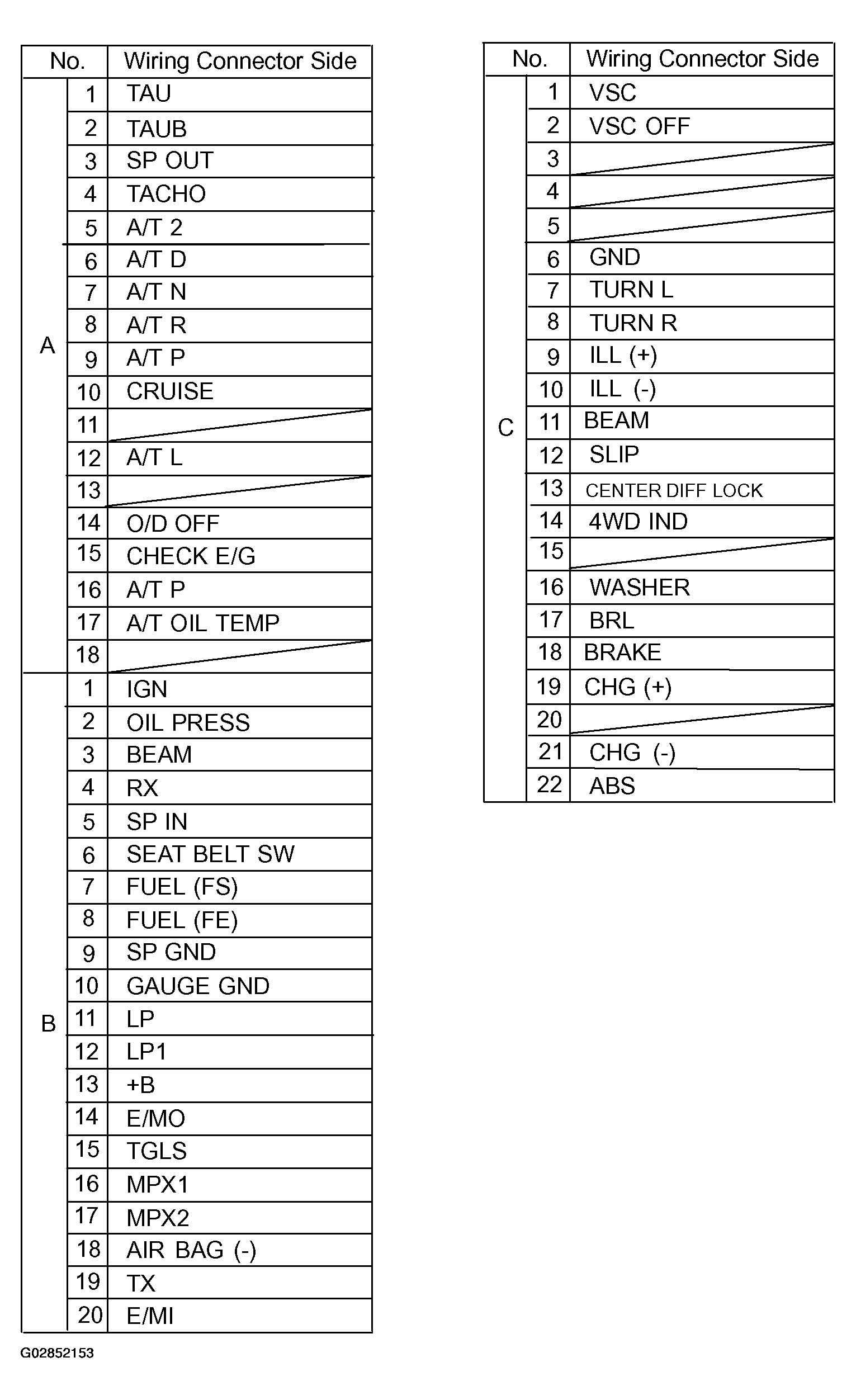

Fig 3: Wiring Connector Side Specifications
G02852153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
