Section 587 (Instrument Panel): Disassembly

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 3 HEATER TO REGISTER DUCT
Remove the screw and No. 3 heater to register duct
REMOVE NO. 1 REGISTER

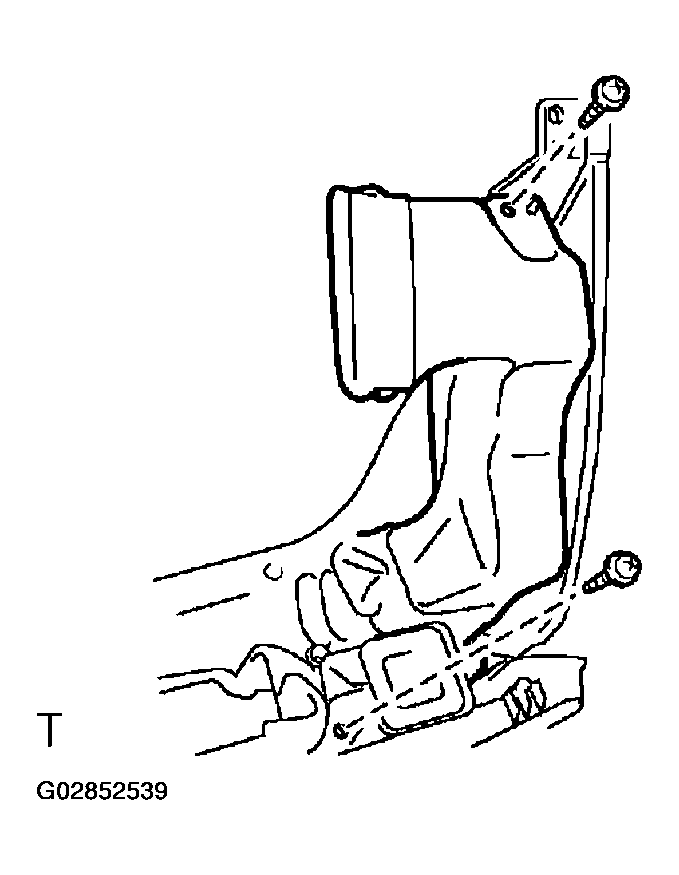

Fig 1: Removing No. 1 Register
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws and No. 1 register.
REMOVE CENTER STAY

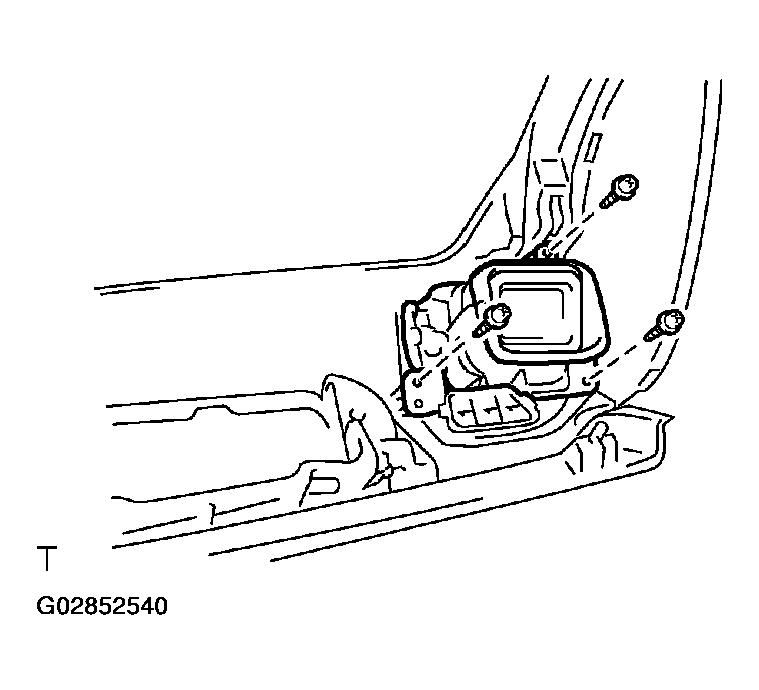

Fig 2: Removing Center Stay
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 screws and center stay.
REMOVE CENTER BRACKET

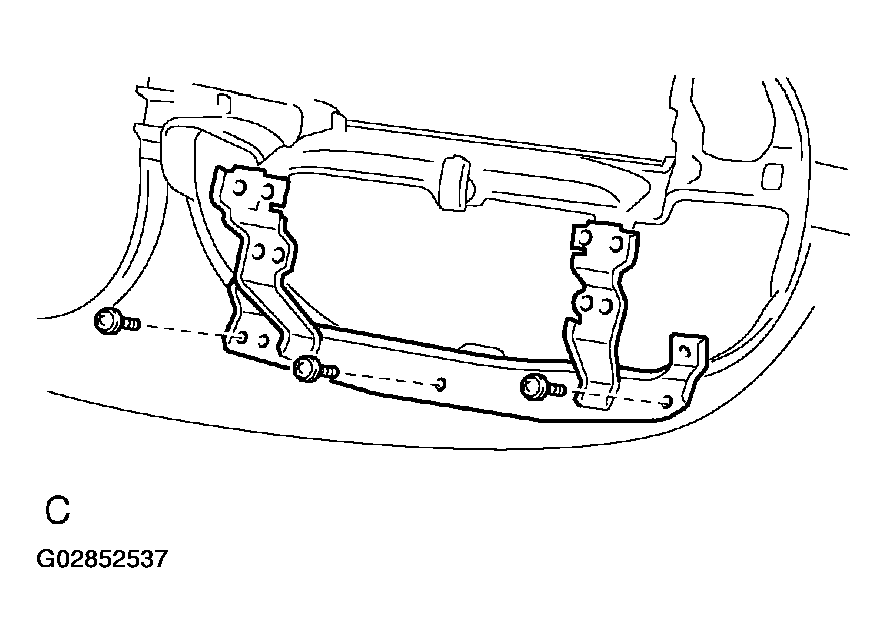

Fig 3: Removing Center Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 screws and center bracket.
REMOVE NO. 5 HEATER TO REGISTER DUCT
Remove the screw and No. 5 heater to register duct.
REMOVE SIDE DEFROSTER NOZZLE DUCT

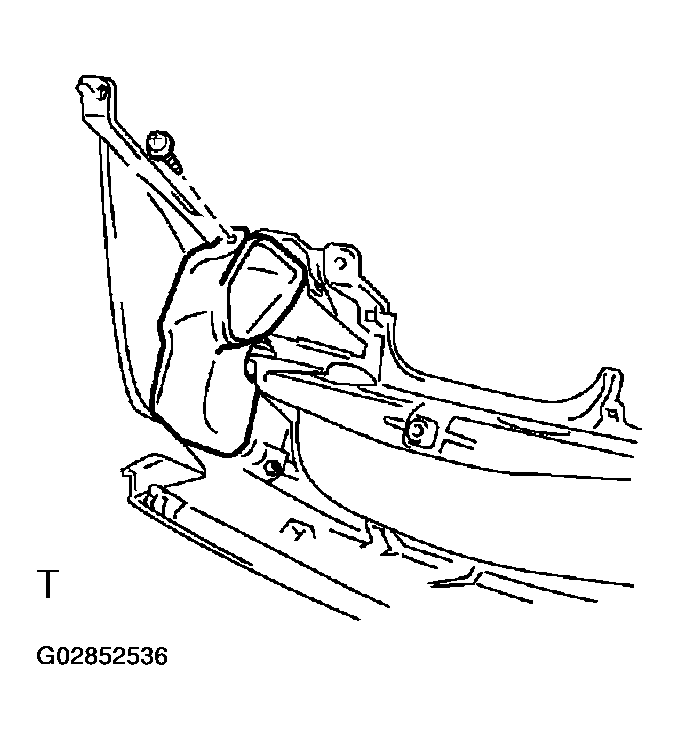

Fig 4: Removing Side Defroster Nozzle Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw and side defroster nozzle duct.
REMOVE NO. 2 REGISTER

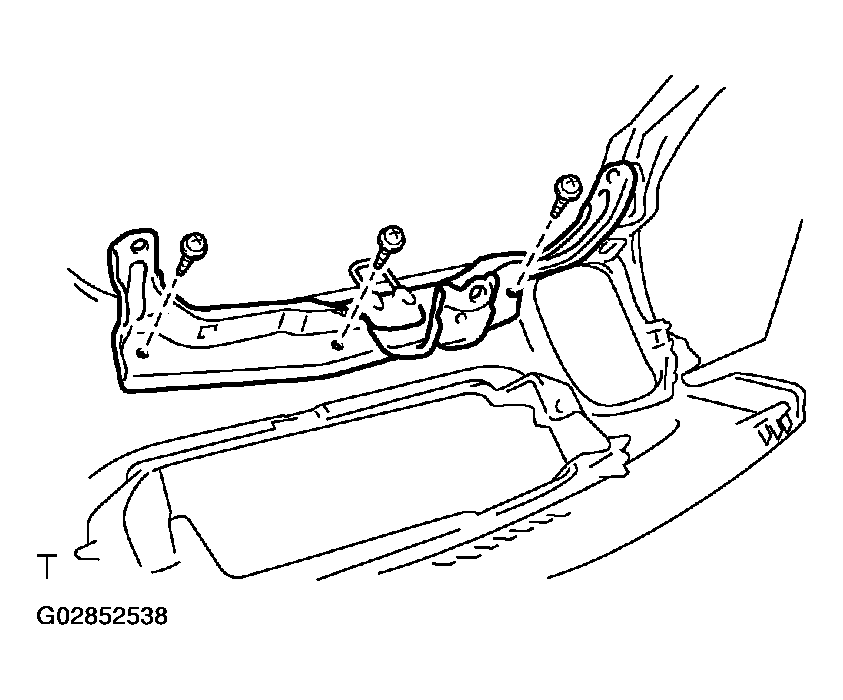

Fig 5: Removing No. 2 Register
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 screws and No. 2 register.
