Section 593 (Rear A/C Unit): Reassembly

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. ASSEMBLE REAR A/C UNIT

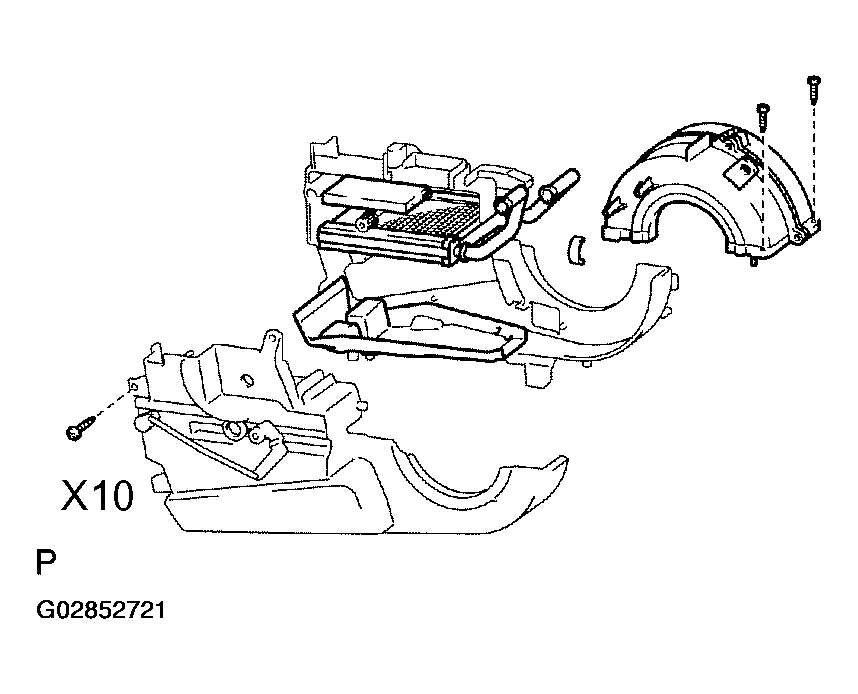

    Fig 1: Assembling Rear A/C Unit
    G02852721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the insulator and heater radiator.
    2. Install the shaft and sliding door.
    3. Assemble the A/C unit and install the 10 screws.
    4. Install the blower case, clamp and 2 screws.
  2. INSTALL AIR OUTLET SERVOMOTOR
    1. Align the marking A on the grid part of the case with the side of the sliding door rack B.

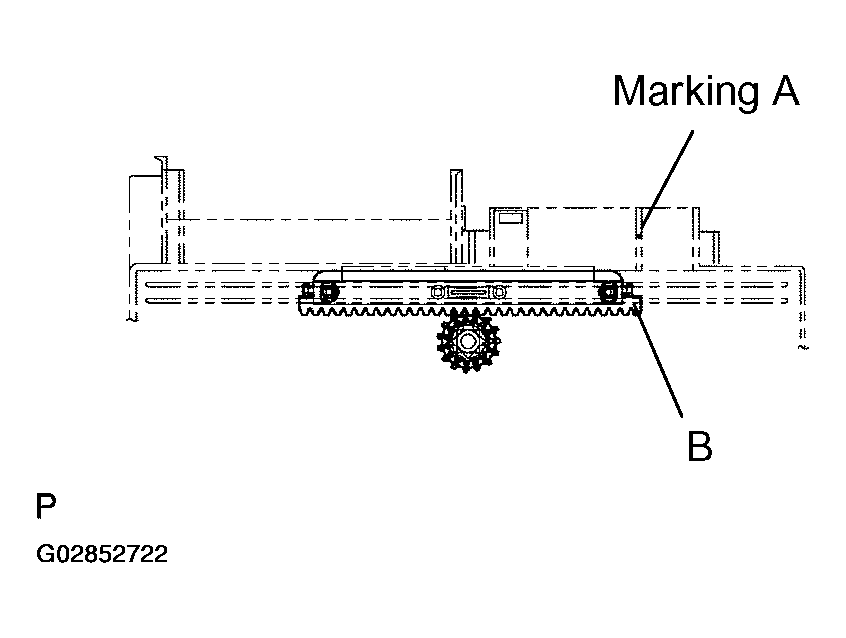

      Fig 2: Aligning Marking
      G02852722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the servomotor with 3 screws.
    NOTE: The projection on the gear (marking B) shall be positioned vertically.

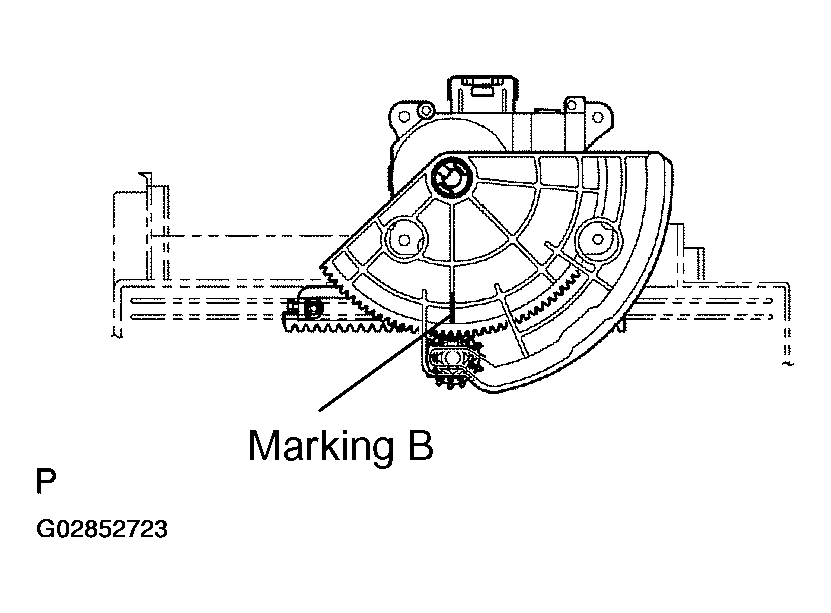

    Fig 3: Identifying Marking B
    G02852723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL EVAPORATOR
  4. INSTALL EXPANSION VALVE
  5. INSTALL WATER VALVE
  6. INSTALL THERMISTOR
  7. INSTALL POWER TRANSISTOR
  8. INSTALL BLOWER MOTOR
