Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUSE (ECU-B FUSE)
    1. Remove the ECU-B fuse from the driver side J/B.
    2. Check that the continuity exists of ECU-B fuse.
    1. NG: REPLACE FUSE
    2. OK: Go to next step.
  2. CHECK HARNESS AND CONNECTOR (BETWEEN HEATER CONTROL HOUSING SUB-ASSY AND BATTERY)
    1. Remove the A/C amplifier with connector.
    2. Measure voltage according to the value(s) in TERMINAL CONDITION SPECIFICATION  .

      Standard:

      TERMINAL CONDITION SPECIFICATION

      Terminal No. Condition Specified Condition
      A13-20 (B) - A13-1 (GND) Always 10 to 14 V

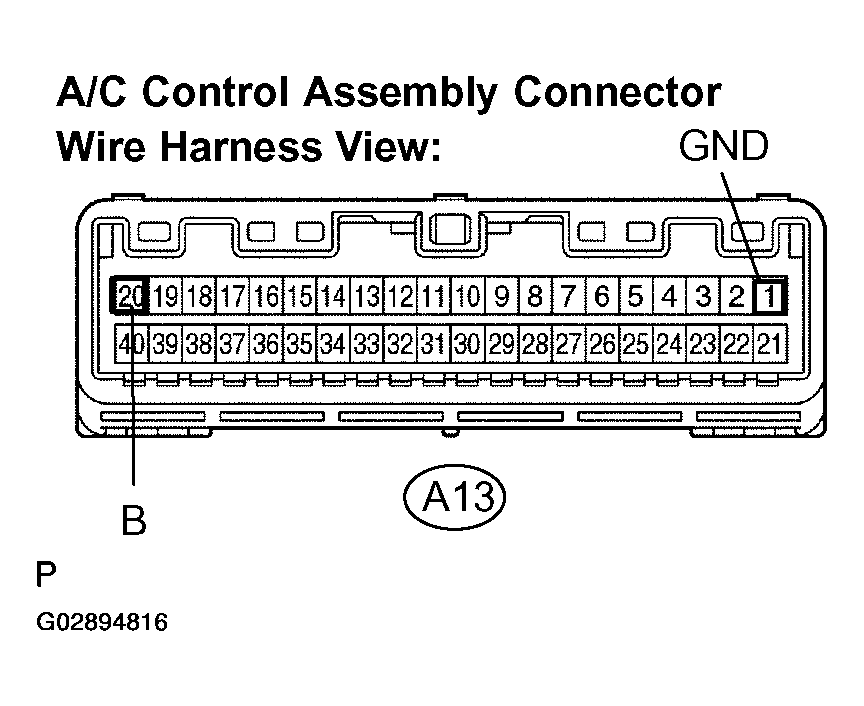

      Fig 1: Checking Harness & Connector (Between Heater Control Housing Sub-Assy & Battery)
      G02894816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
