Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the position of the air outlet damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the mode damper servo sub-assy.

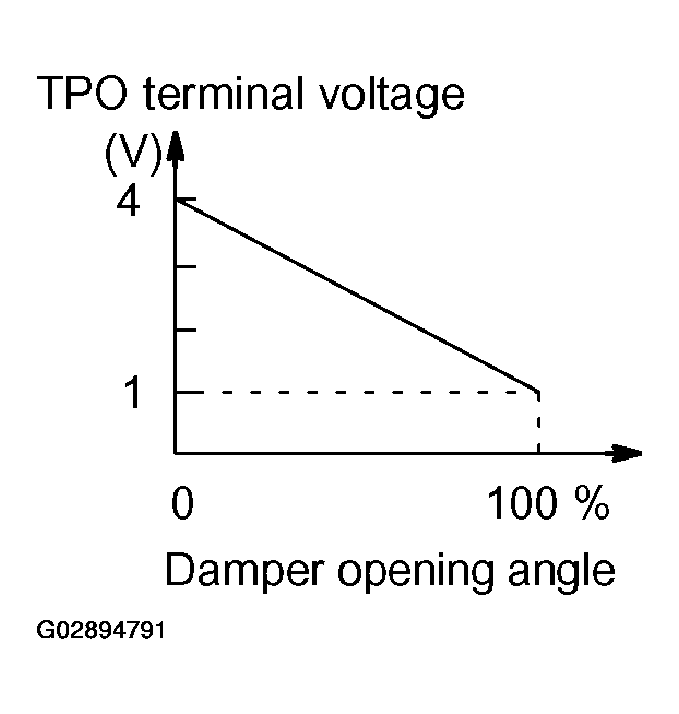

Fig 1: Identifying Air Outlet Damper Position Sensor Circuit Graph

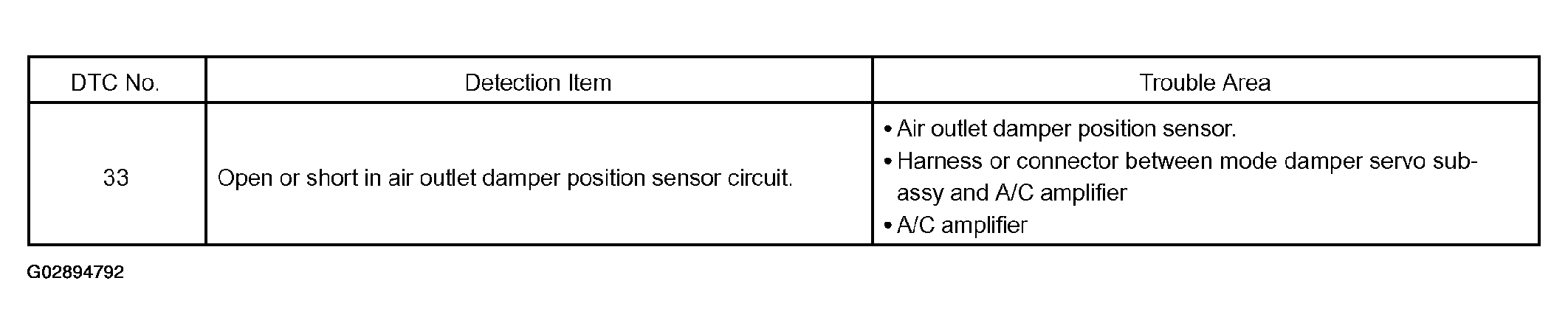

Fig 2: Identifying Air Outlet Damper Position Sensor Circuit Description Table
