Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

The air inlet control servomotor is controlled by the A/C amplifier and moves the air inlet damper to the desired position.

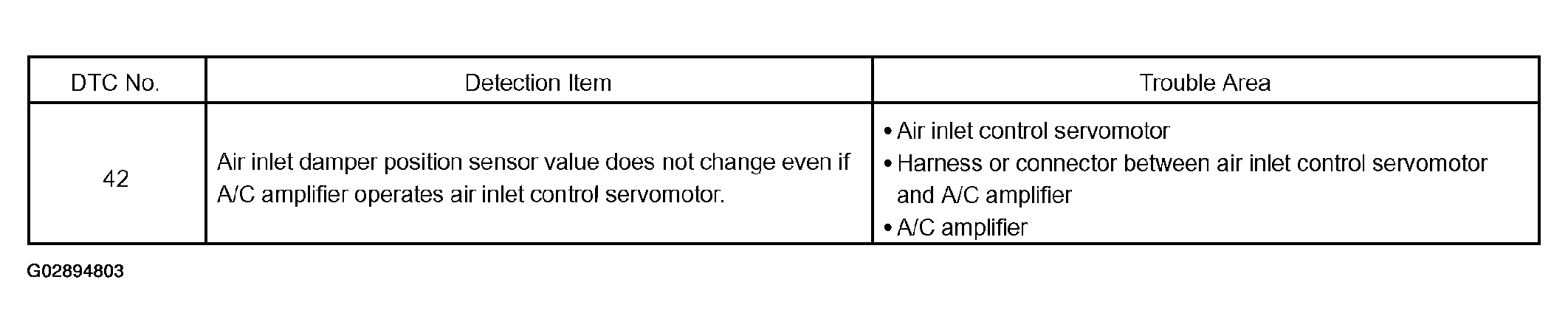

Fig 1: Identifying Air Inlet Damper Control Servomotor Circuit Description Table
G02894803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
