Navigation Check Mode (NAVI Color Bar Check)

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This mode checks the color display on the radio and navigation assy.
Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

Enter diagnostic mode (see DIAGNOSTIC START-UP/FINISH ).
Select "Navigation Check" from the "Diagnosis MENU" screen.

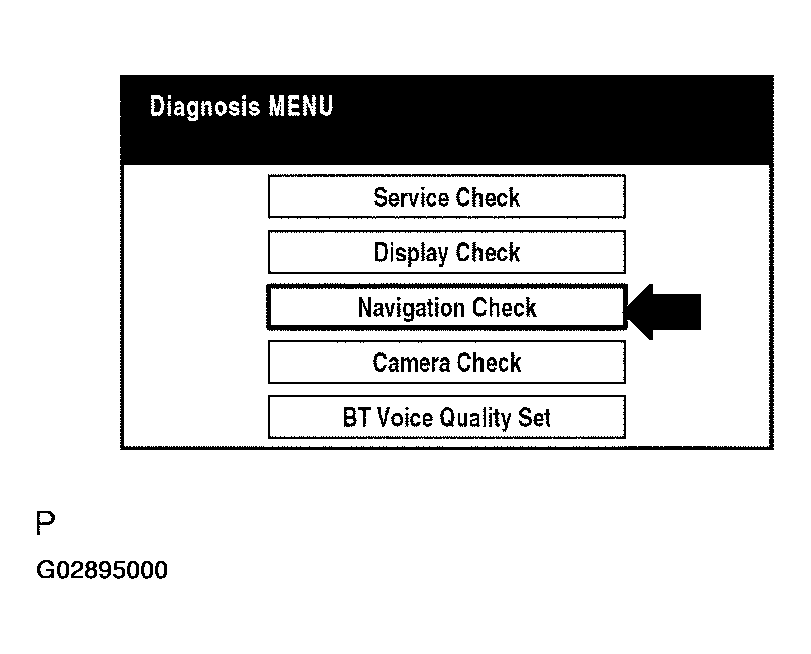

Fig 1: Navigation Check Mode - Navigation Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Select "Color Bar Check" from the "Navigation Check" screen

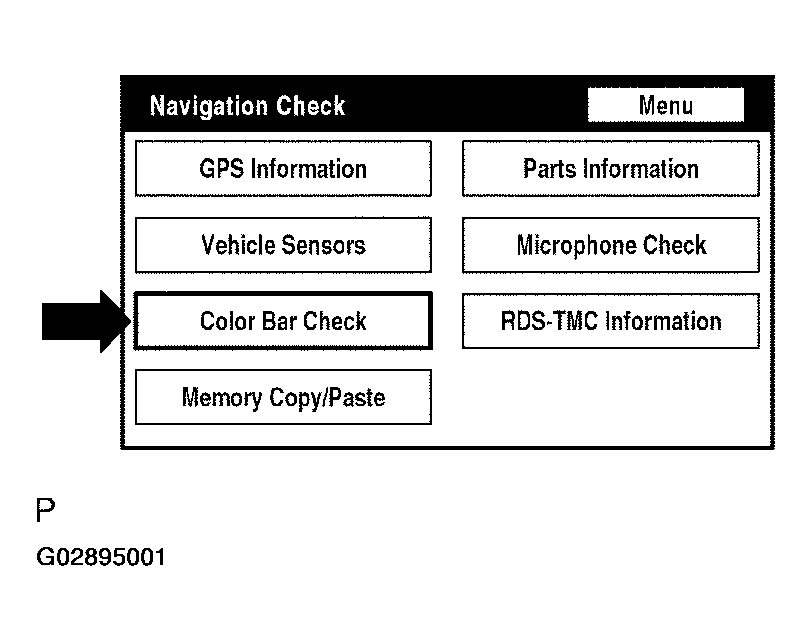

Fig 2: Navigation Check Mode - Color Bar Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check each color of the color bar when the "NAVI Color Bar Check" screen is displayed.
HINT:

Colors will not be displayed full-screen as in "Display Check Mode".

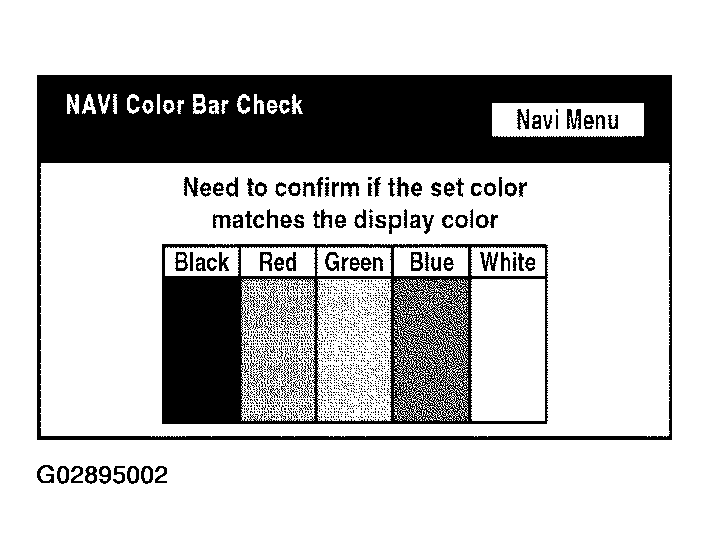

Fig 3: Navigation Check Mode - NAVI Color Bar Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
