Cigarette Lighter ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE INSTRUMENT PANEL ASH RECEPTACLE ASSY (See REPLACEMENT )
REMOVE CIGARETTE LIGHTER ASSY
1. Rotate the ring nut counterclockwise to remove it.
2. Remove the cigarette lighter assy from the instrument panel ash receptacle assy.

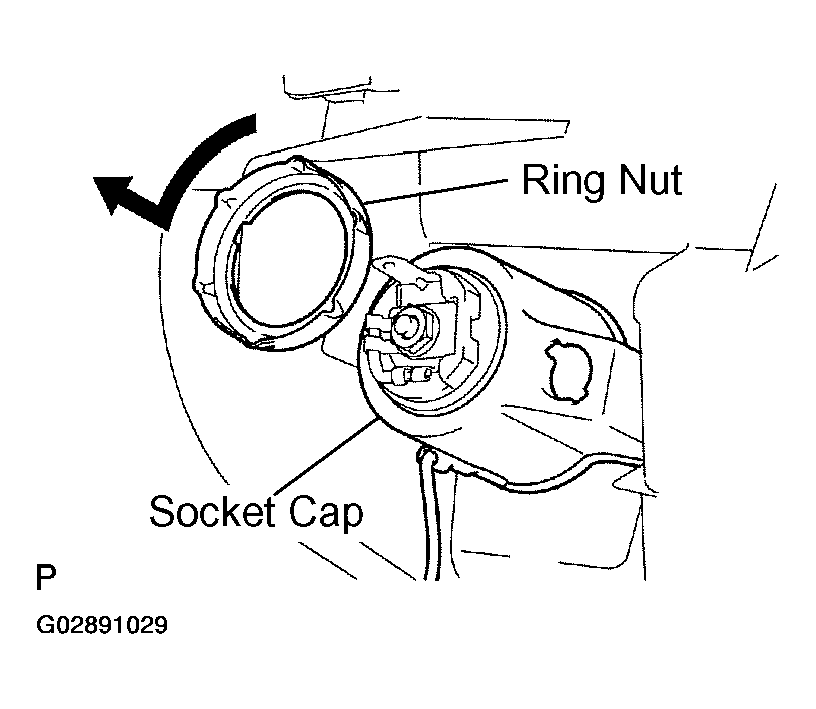

  Fig 1: Removing Cigarette Lighter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CIGARETTE LIGHTER ASSY
1. Properly position the socket at the cutout of the instrument panel ash receptacle assy and insert them.
2. Install the socket cap.
3. Rotate the ring nut clockwise from the backside.
