Clock ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )
REMOVE CLOCK ASSY
1. Remove the 2 screws.
2. Disengage the claw and remove the clock assy.

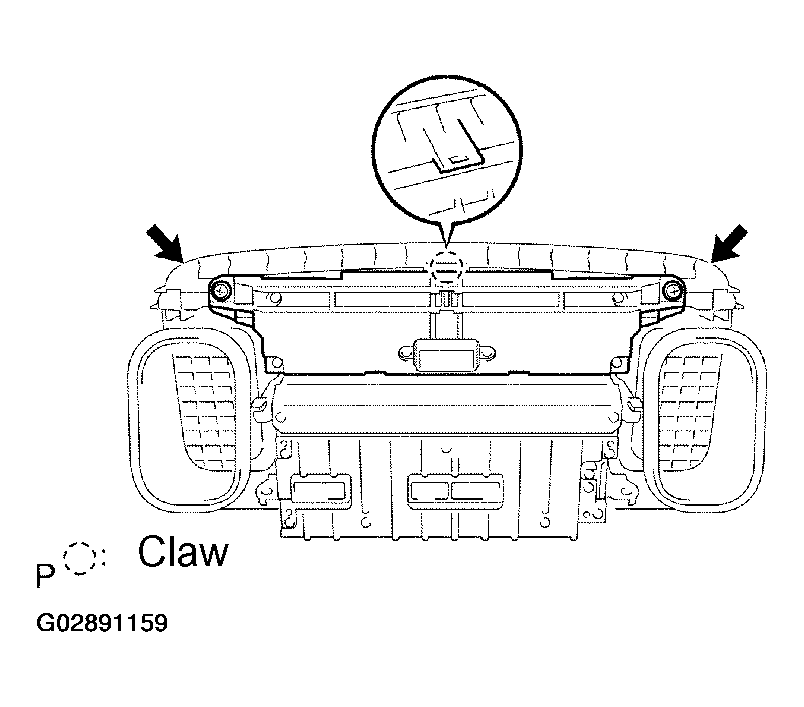

  Fig 1: Removing Clock Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
