Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the evaporator temperature and sends the appropriate signals to the A/C amplifier. It is used for frost prevention.

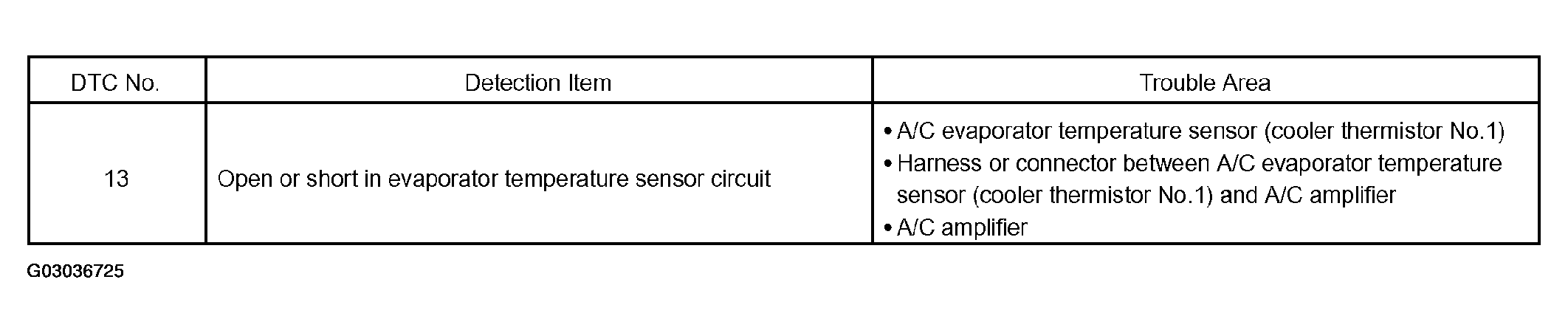

Fig 1: DTC 13 Table
G03036725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
