Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

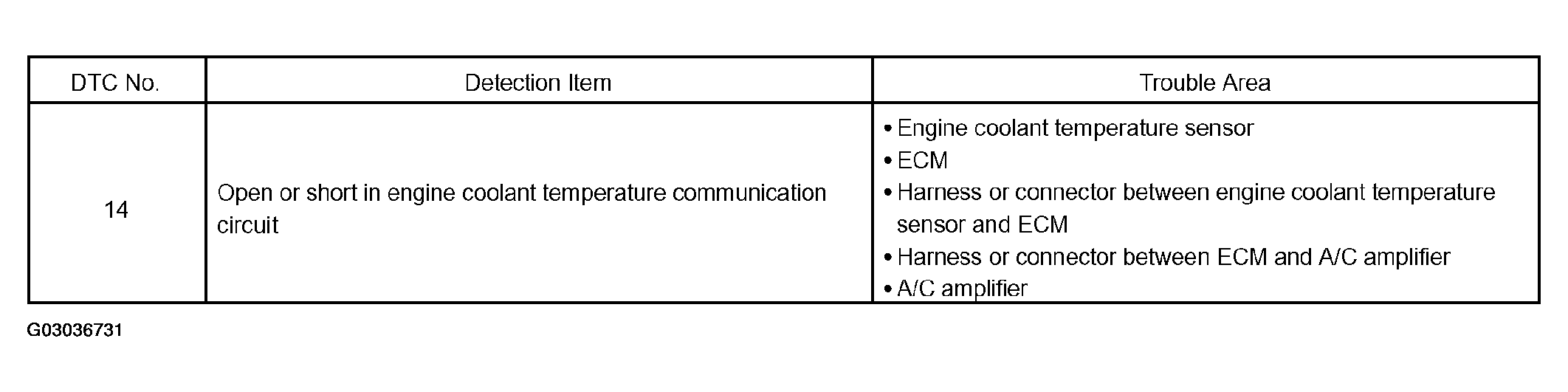

The sensor connected to the ECM detects the engine coolant temperature that is used for warm up control when the engine is cold. The sensor sends a signal to the A/C amplifier via the ECM.
