Circuit Description

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

TPP terminal voltage (V)

This sensor detects the position of the air mix control servomotor (air mix damper servo sub-assy) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air mix control servomotor (air mix damper servo sub-assy).

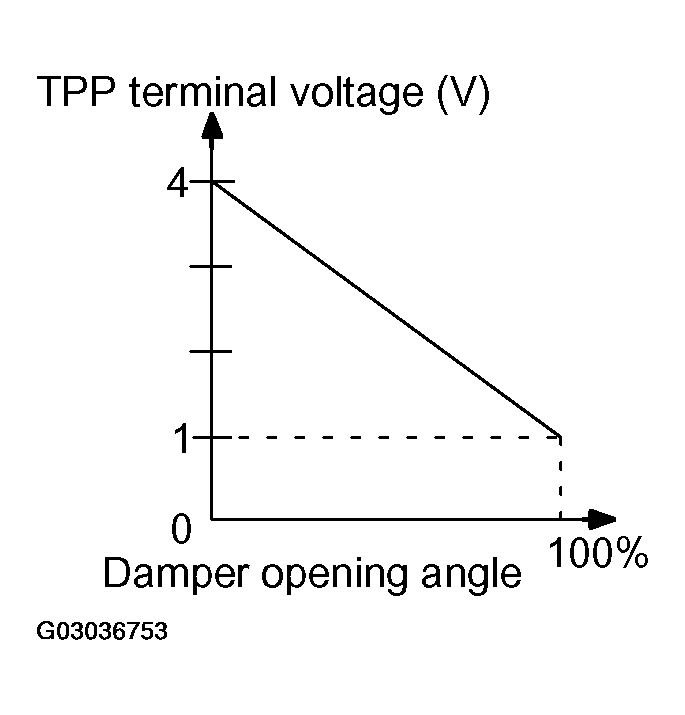

Fig 1: TPP Terminal Voltage/Damper Opening Angle Graph

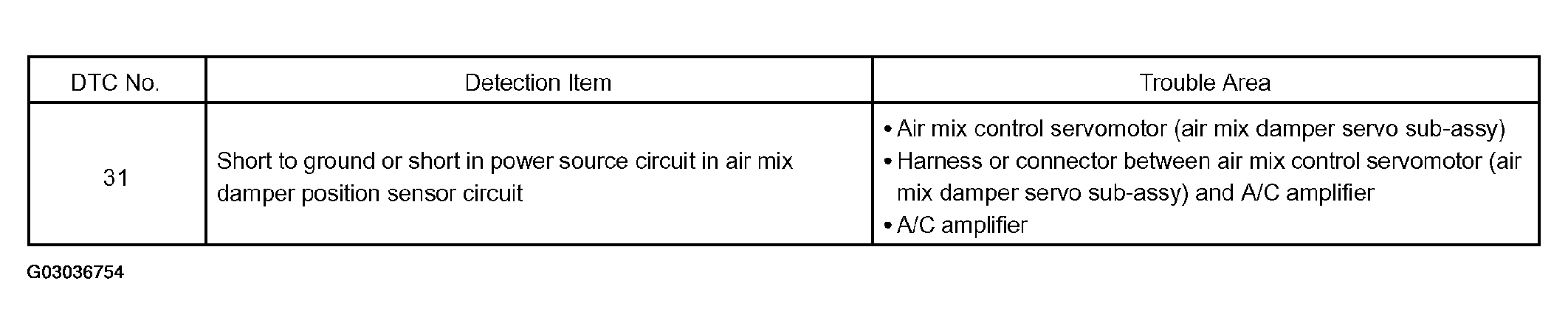

Fig 2: DTC 31 Table
