Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

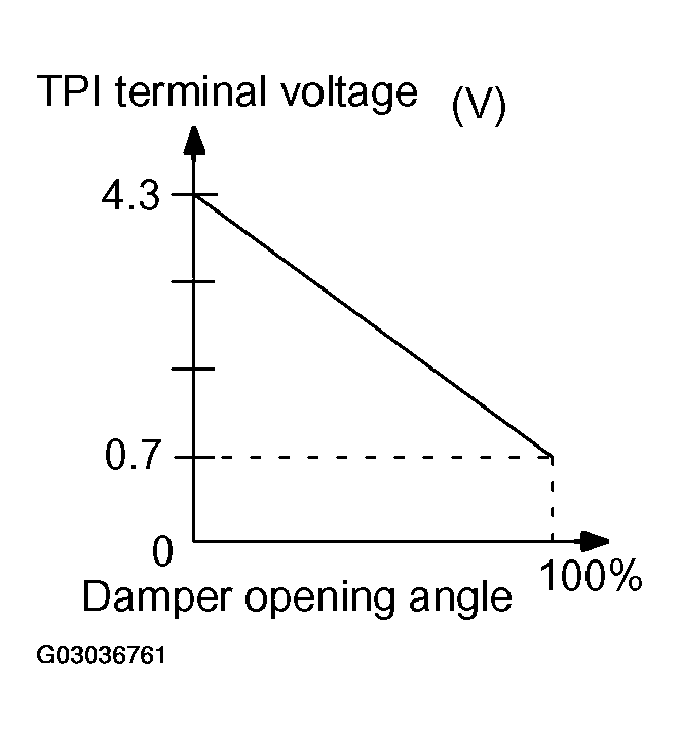

This sensor detects the position of the air inlet control servomotor (recirculation damper servo sub-assy) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air inlet control servomotor (recirculation damper servo sub-assy).
