Circuit Description
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

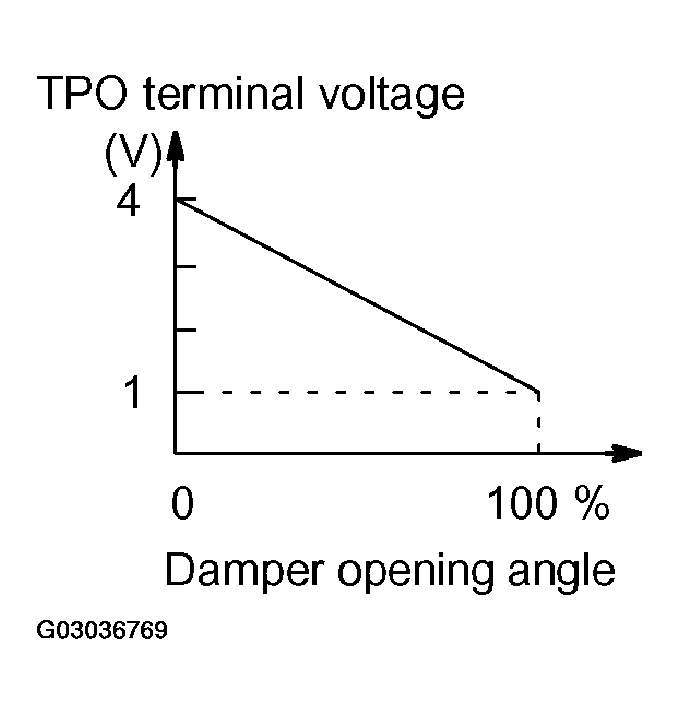

TPO terminal voltage
This sensor detects the position of the air outlet control servomotor (mode damper servo sub-assy) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air outlet control servomotor (mode damper servo sub-assy).
