Diagnosis System
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK THE DLC3

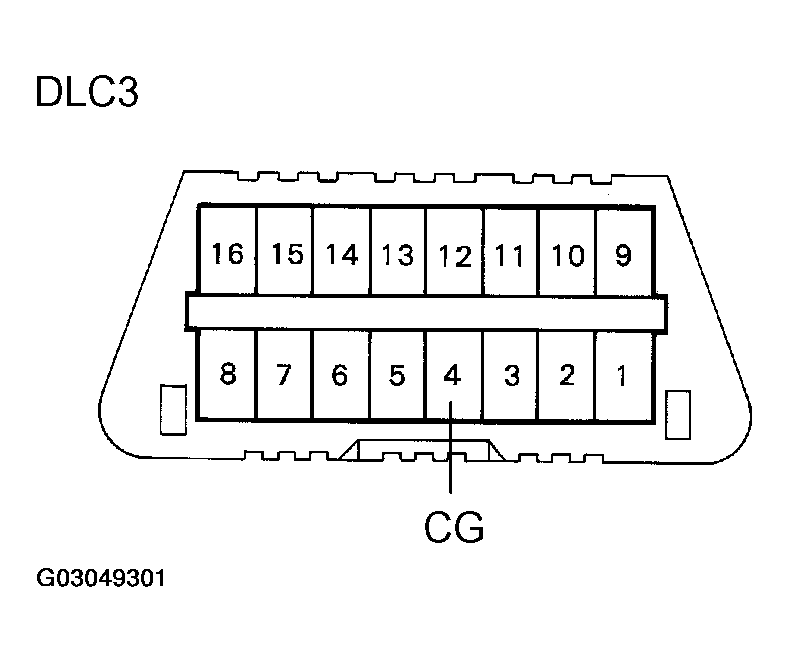

- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition 4 - Body ground Always Below 1 Ω If the resistance is not as specified, inspect the TC terminal circuit (see TC TERMINAL CIRCUIT ).

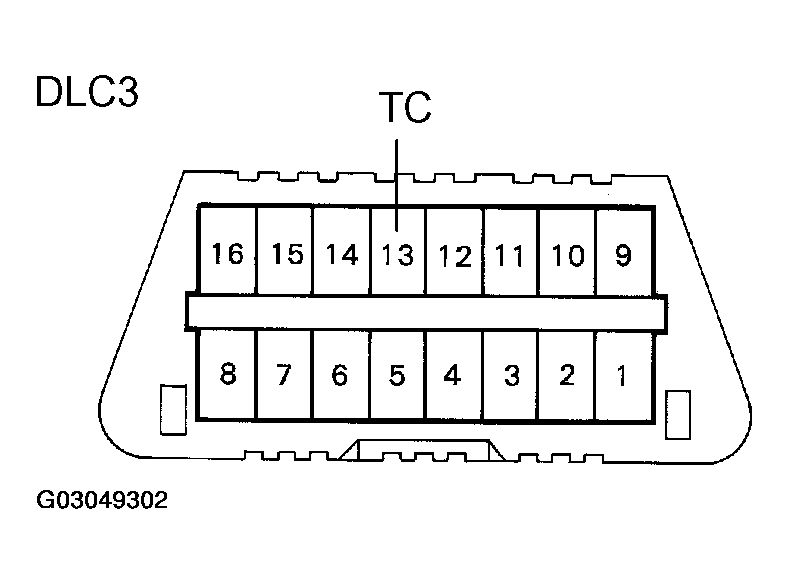

- Measure the voltage according to the value(s) in SPECIFIED CONDITION
.
Standard:
SPECIFIED CONDITIONTester connection Condition Specified condition 13 - Body ground Ignition Switch ON 10 to 14 V If the resistance is not as specified, inspect the TC terminal circuit (see TC TERMINAL CIRCUIT ).
- Measure the resistance according to the value(s) in SPECIFIED CONDITION
.
