WIRELESS DOOR CONTROL SYSTEM DESCRIPTION
1. This system locks and unlocks the vehicle's doors remotely. The wireless control system has the following features:
  - The door control receiver performs the code identification process and the multiplex network body ECU operates the door lock control. A serial data link is provided for communication between the door control receiver and the multiplex network body ECU.
  - A key-holder type transmitter is used and it contains the following 4 switches: the door lock switch, door unlock switch, trunk open switch and panic switch.
2. The wireless door lock control system has the following functions:

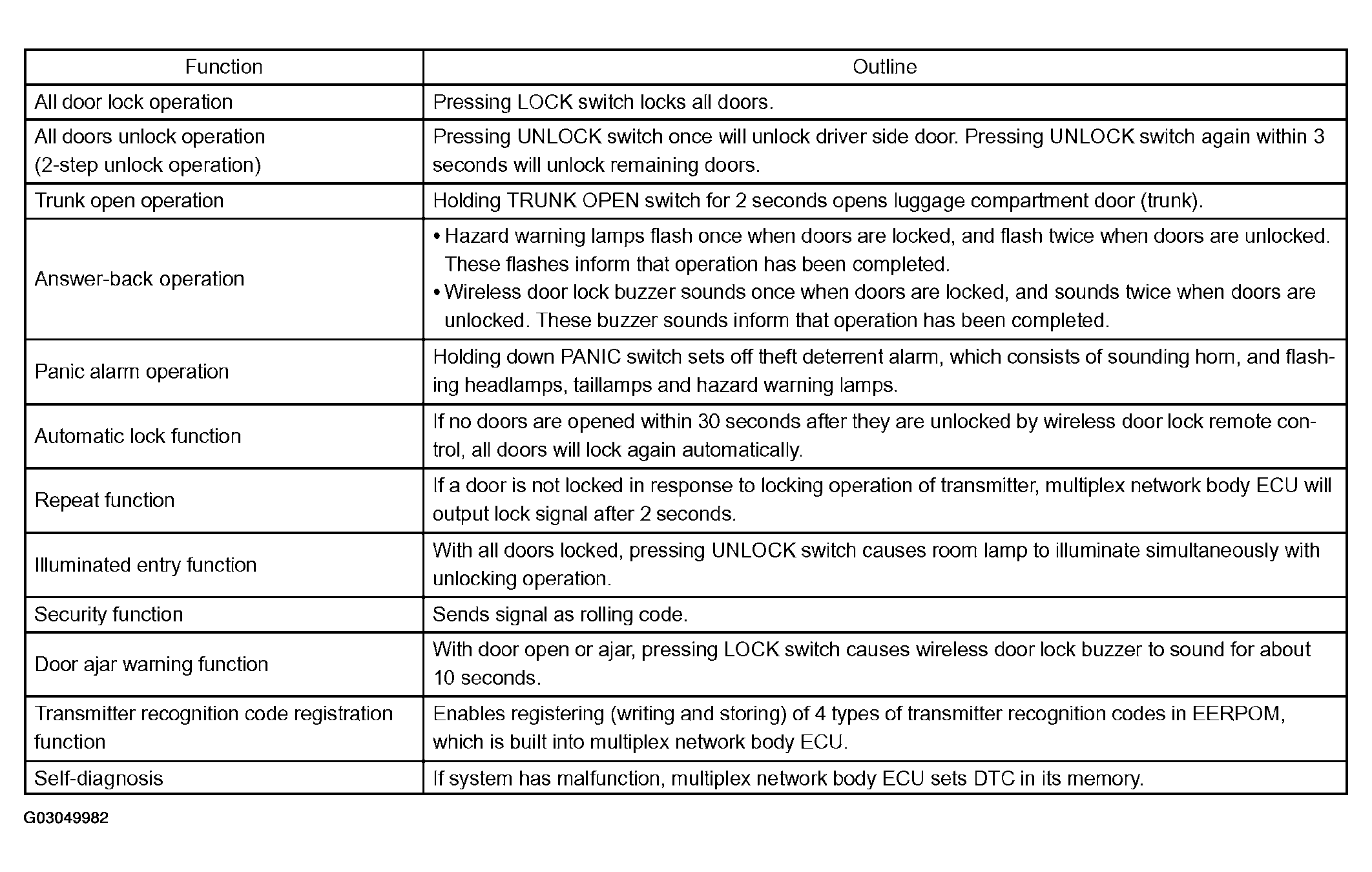

  Fig 1: Wireless Door Lock Control System Functions Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
