Air Conditioning Control Assembly: Removal

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER CLUSTER FINISH PANEL (See REMOVAL )
REMOVE LOWER CENTER CLUSTER FINISH PANEL (See REMOVAL )
REMOVE A/C CONTROL ASSEMBLY
1. Remove the 4 bolts and pull out the A/C control assembly with radio assembly, then disconnect the connectors.

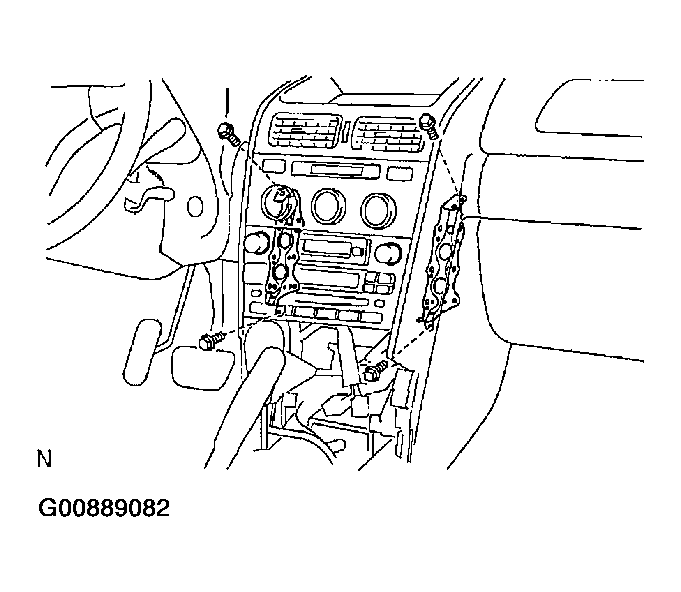

  Fig 1: Removing A/C Control Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 12 screws and 2 brackets.
3. Separate the A/C control assembly and radio assembly.

  Fig 2: Separating A/C Control Assembly & Radio Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
