Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE SHIFT LEVER KNOB SUB-ASSY (See COMPONENTS )
REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (See COMPONENTS )
REMOVE CONSOLE BOX SUB-ASSY REAR W/CONSOLE DOOR (See COMPONENTS )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See COMPONENTS )
REMOVE POWER POINT SOCKET ASSY
1. Disengage the 2 claws and remove the power point socket assy.

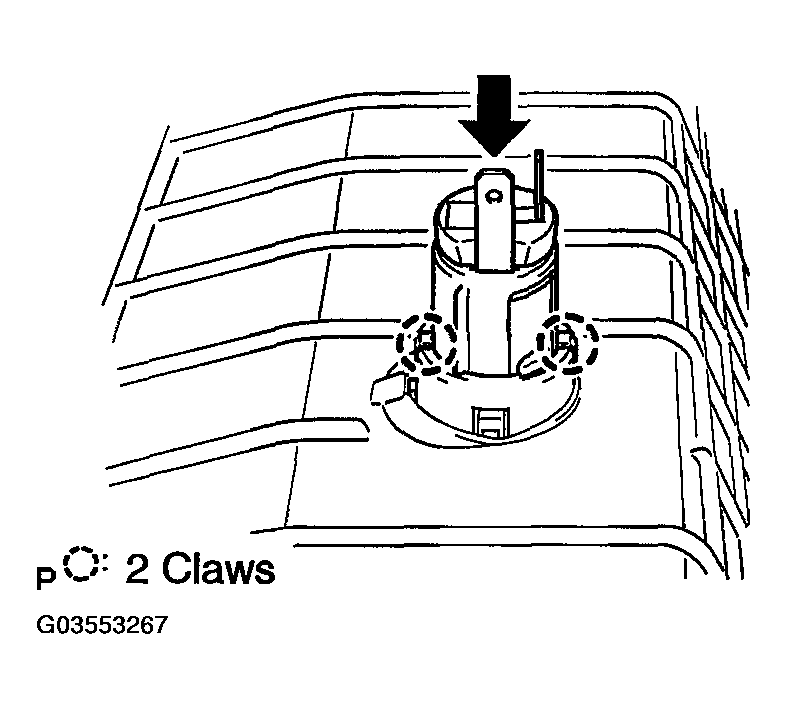

  Fig 1: Removing Power Point Socket Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POWER POINT SOCKET ASSY
1. Align the socket with the notch on the power point socket cover and install the power socket assy by pushing it in as hard as possible.
