Radio Receiver ASSY: Replacement

HINT:

• COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE  REPLACEMENT  )
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY (SEE  REPLACEMENT  )
3. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
5. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY
   1. Remove the 4 bolts.
   2. Disconnect the connector.
   3. Disengage the 4 claws and remove the center cluster integration panel assy.

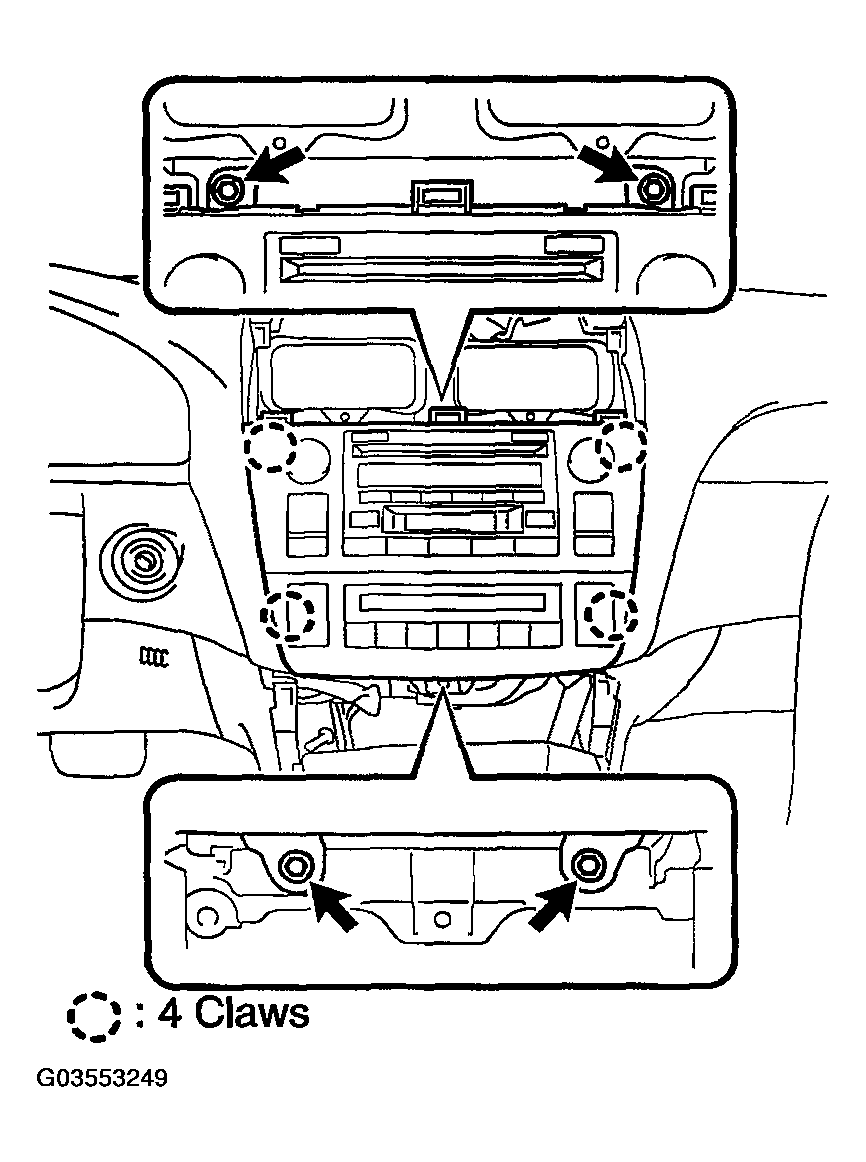

      Fig 1: Removing Center Cluster Integration Panel Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE RADIO BRACKET NO.1
   1. Remove the 6 screws and radio bracket No.1.

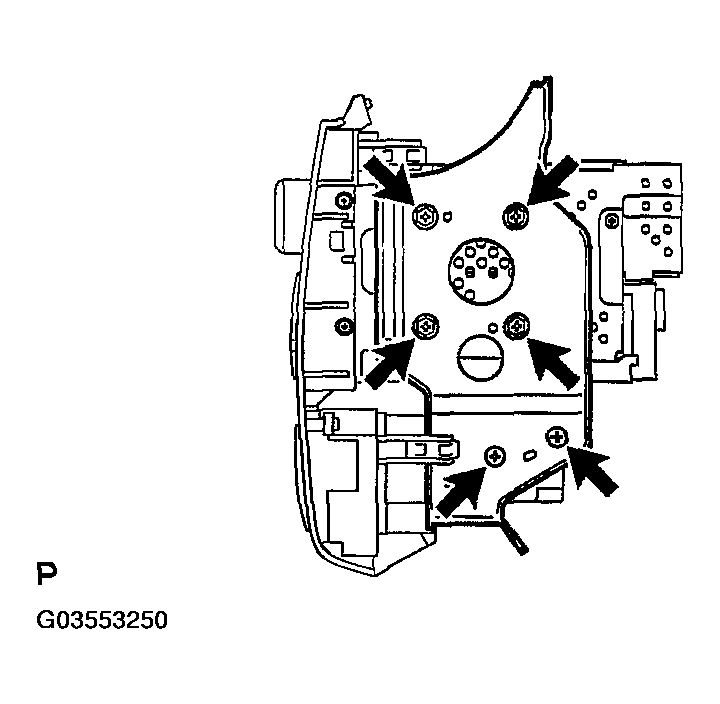

      Fig 2: Removing Radio Bracket No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

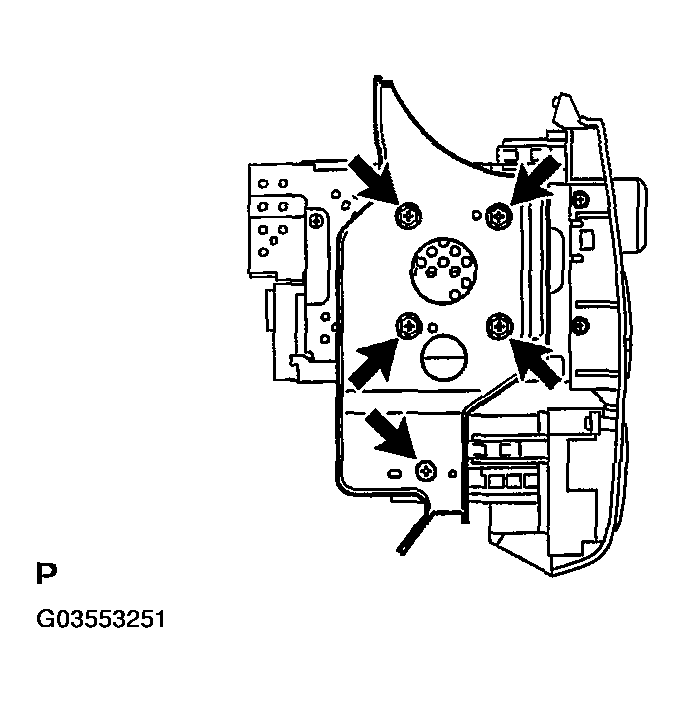

7. REMOVE RADIO BRACKET NO.2
   1. Remove the 5 screws and radio bracket No.2.
      Fig 3: Removing Radio Bracket No. 2

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO RECEIVER ASSY
