Steering Pad Switch ASSY: Replacement

HINT:

• COMPONENTS
• Installation is in the reverse order of removal.

1. PRECAUTION (SEE  AIR BAG RESTRAINT SYSTEMS  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  AIR BAG RESTRAINT SYSTEMS  )
4. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  AIR BAG RESTRAINT SYSTEMS  )
5. REMOVE HORN BUTTON ASSY (SEE  AIR BAG RESTRAINT SYSTEMS  )
6. REMOVE STEERING PAD SWITCH ASSY
   1. Disconnect the connector.
   2. Remove the 2 screws.
   3. Disengage the 4 claws and the pin.
   4. Remove the steering pad switch assy.

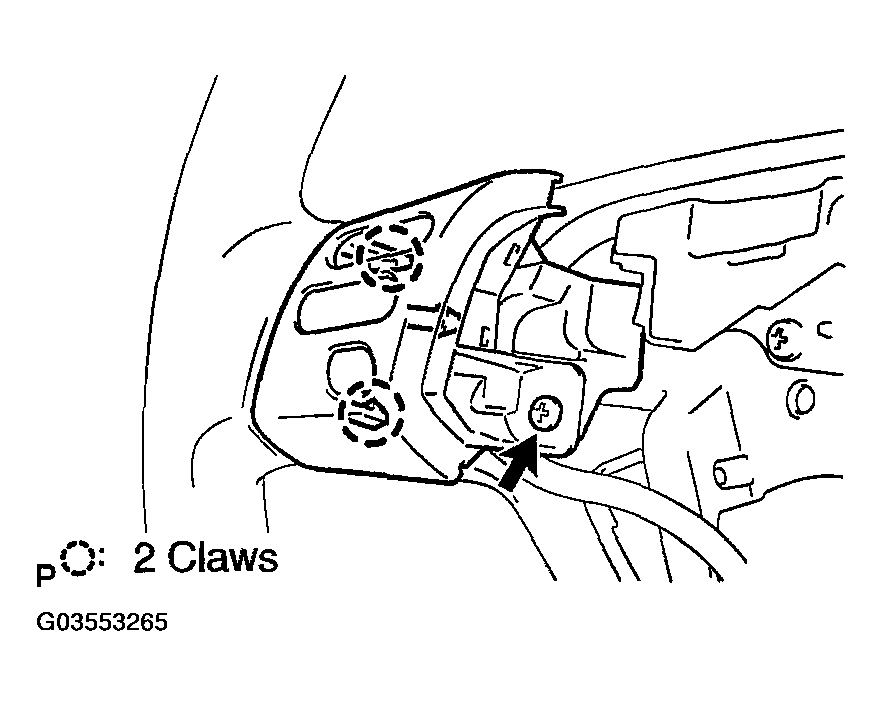

      Fig 1: Removing Steering Pad Switch Assy (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

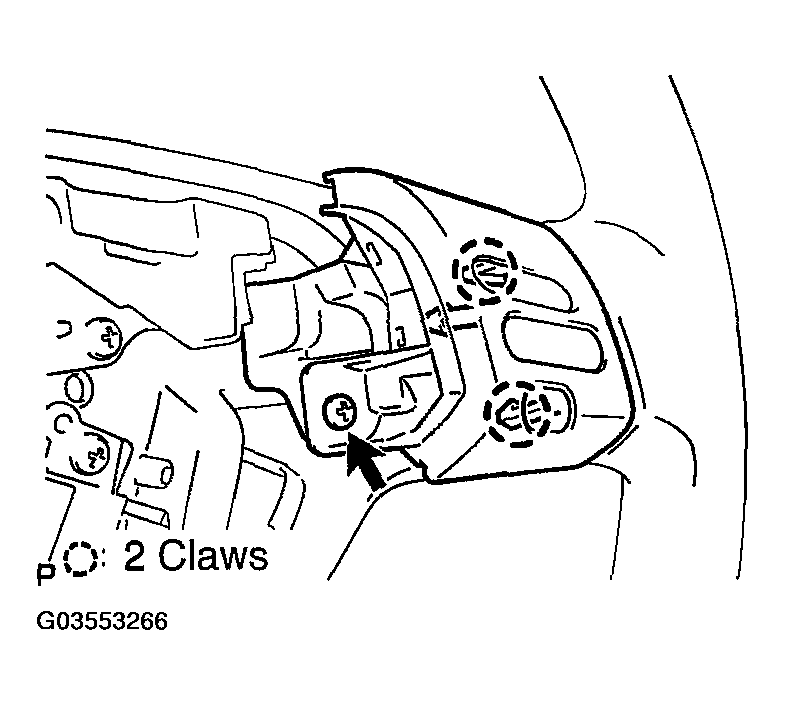

      Fig 2: Removing Steering Pad Switch Assy (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HORN BUTTON ASSY (SEE  AIR BAG RESTRAINT SYSTEMS  )
8. CONNECT BATTERY NEGATIVE TERMINAL (SEE  AIR BAG RESTRAINT SYSTEMS  )
9. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
10. INSPECT HORN BUTTON ASSY (SEE  AIR BAG RESTRAINT SYSTEMS  )
11. INSPECT SRS WARNING LIGHT (SEE  AIR BAG RESTRAINT SYSTEMS  )
