Clutch Switch ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT )
REMOVE COWL SIDE TRIM SUB-ASSY LH (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH (SEE REPLACEMENT )
REMOVE CLUTCH SWITCH ASSY
1. Disconnect the connector.
2. Loosen the nut and remove the clutch switch assy.

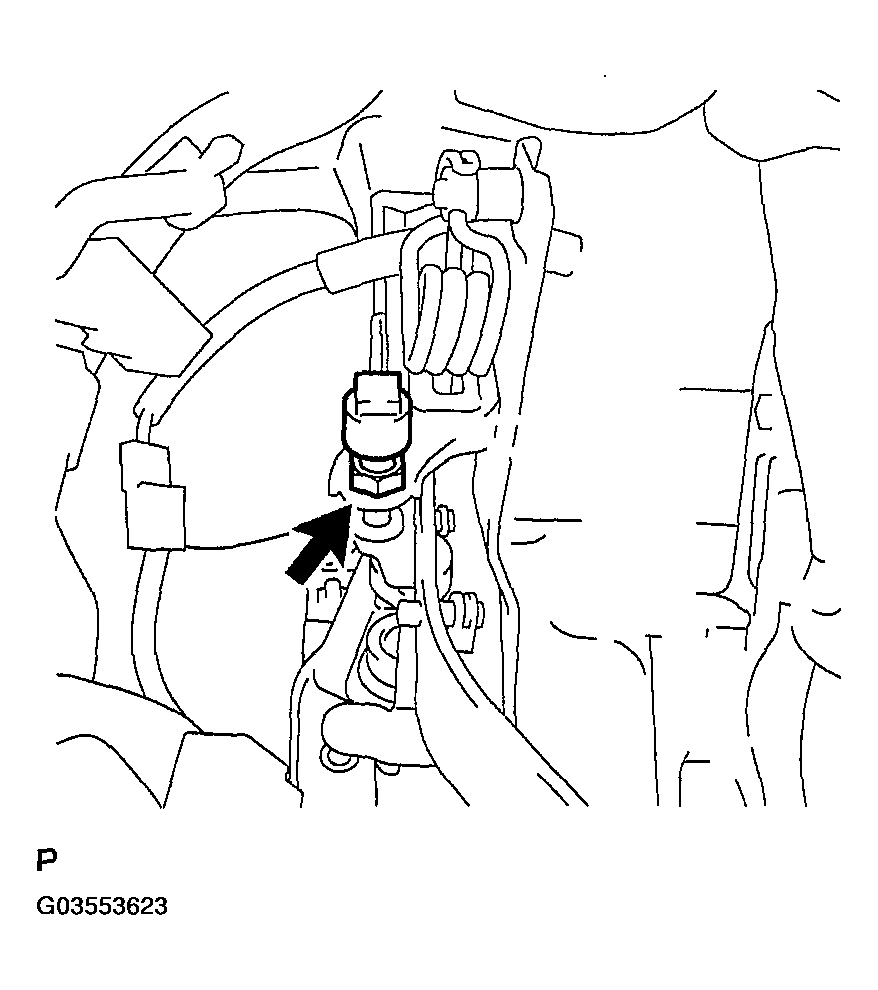

  Fig 1: Removing Clutch Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CLUTCH SWITCH ASSY
1. Insert the clutch switch assy by turning it until the bolt touches the cushion of the clutch pedal.
2. Adjust the clutch switch assy to the specified value between the cushion and the bracket as shown in Fig 2 .
3. Tighten the lock nut to fix the clutch switch assy.

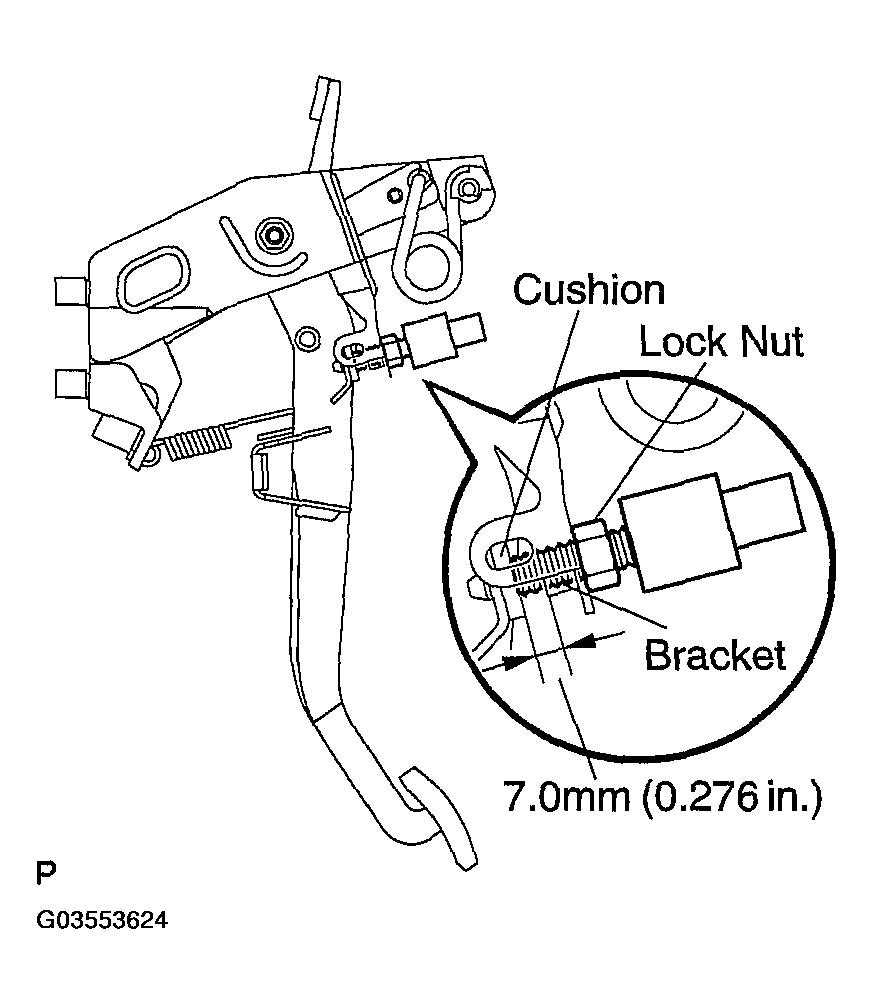

  Fig 2: Installing Clutch Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
