Antenna Module: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove headliner to access antenna module (Refer to HEADLINER ).
Disconnect antenna coax cable lead and electrical harness connector from antenna module (Fig 1 ).

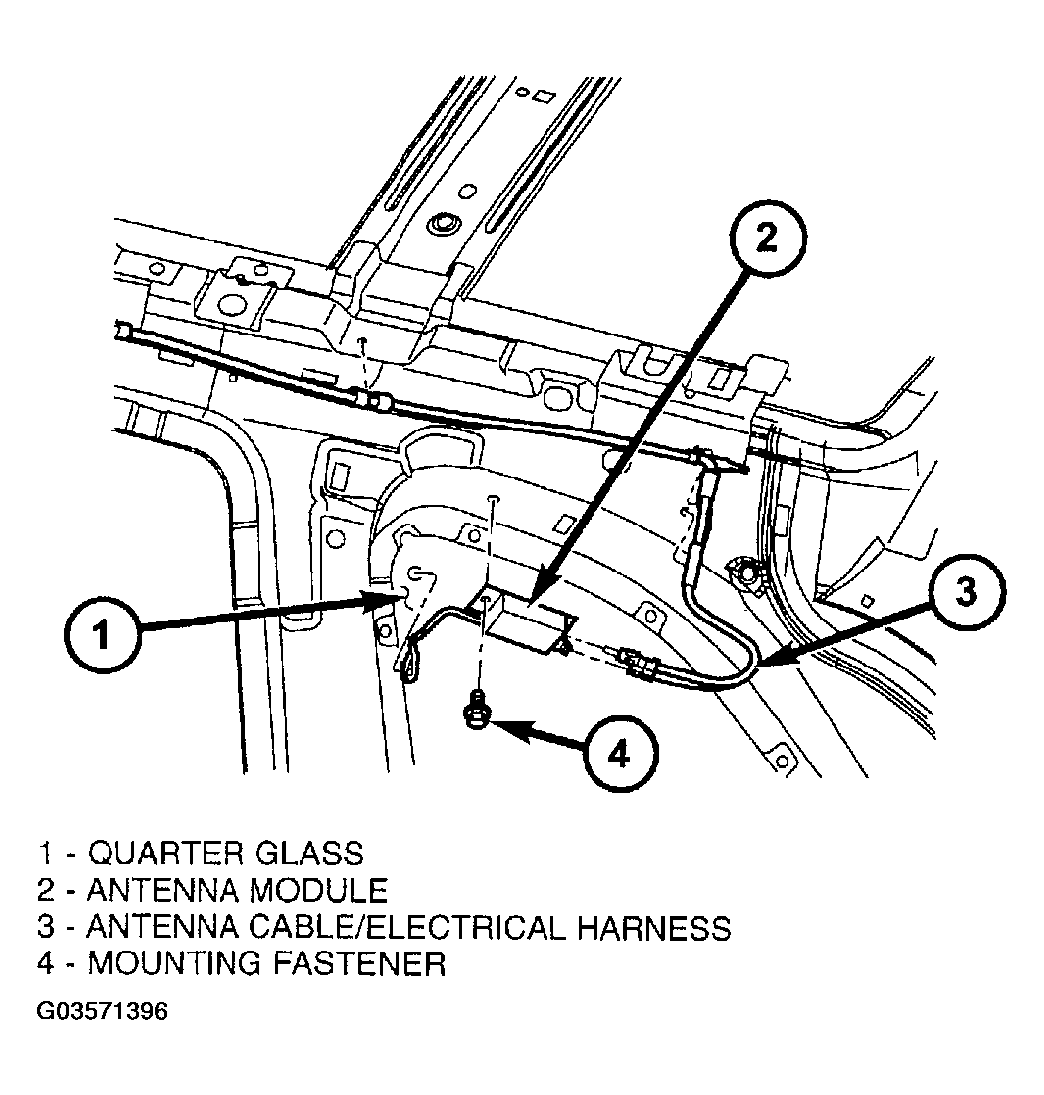

Fig 1: Removing Antenna Module
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the antenna module connector from the quarter glass.
Remove the mounting screw and the antenna module.
