Left Multi-Function Switch

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Position the left multi-function switch onto the housing.
Install the two screws to the left multi-function switch. Torque the screws to 2.5 N.m (22 in. lbs.).

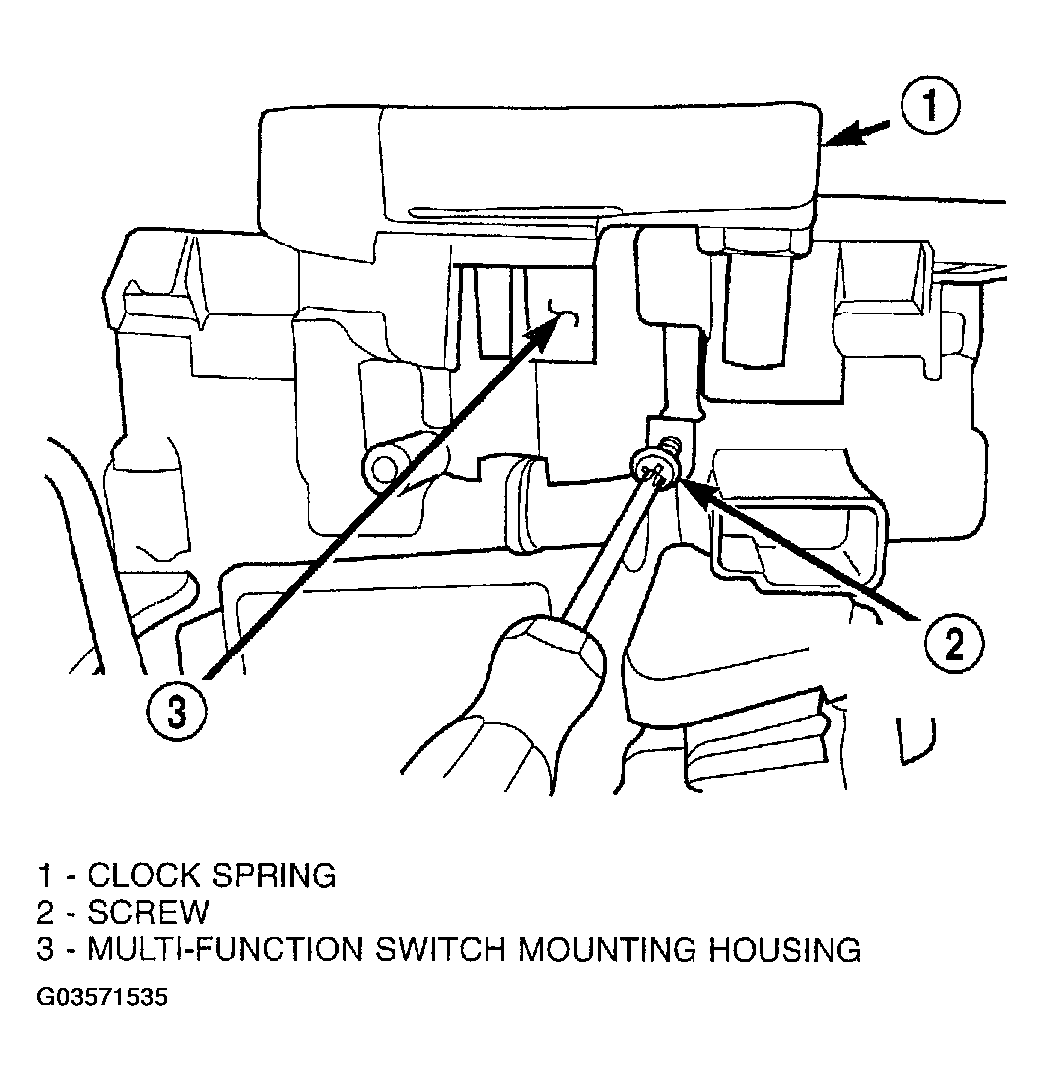

Fig 1: Removing Multi-Function Switch Mounting Housing Screw
Courtesy of DAIMLERCHRYSLER CORP.

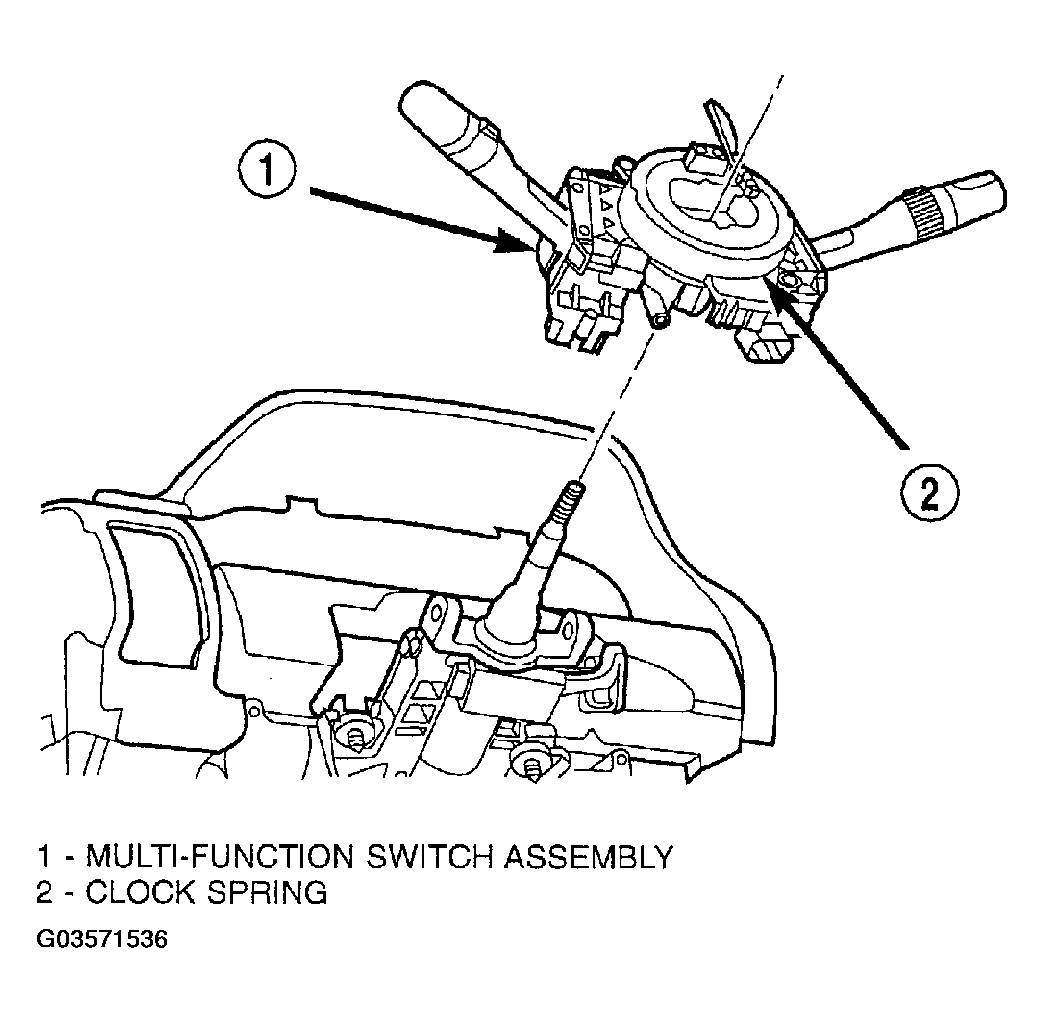

Fig 2: Removing Multi-Function Switch Mounting Housing
Courtesy of DAIMLERCHRYSLER CORP.
Reconnect the instrument panel wire harness connector to the switch.
Install the lower steering column shroud (Refer to SHROUD - LOWER ).
Install the upper steering column shroud (Refer to SHROUD - UPPER ). Torque Screws To 1.9 N.M (17 IN. LBS.).
Reconnect the battery negative cable.
Verify vehicle and system operation.

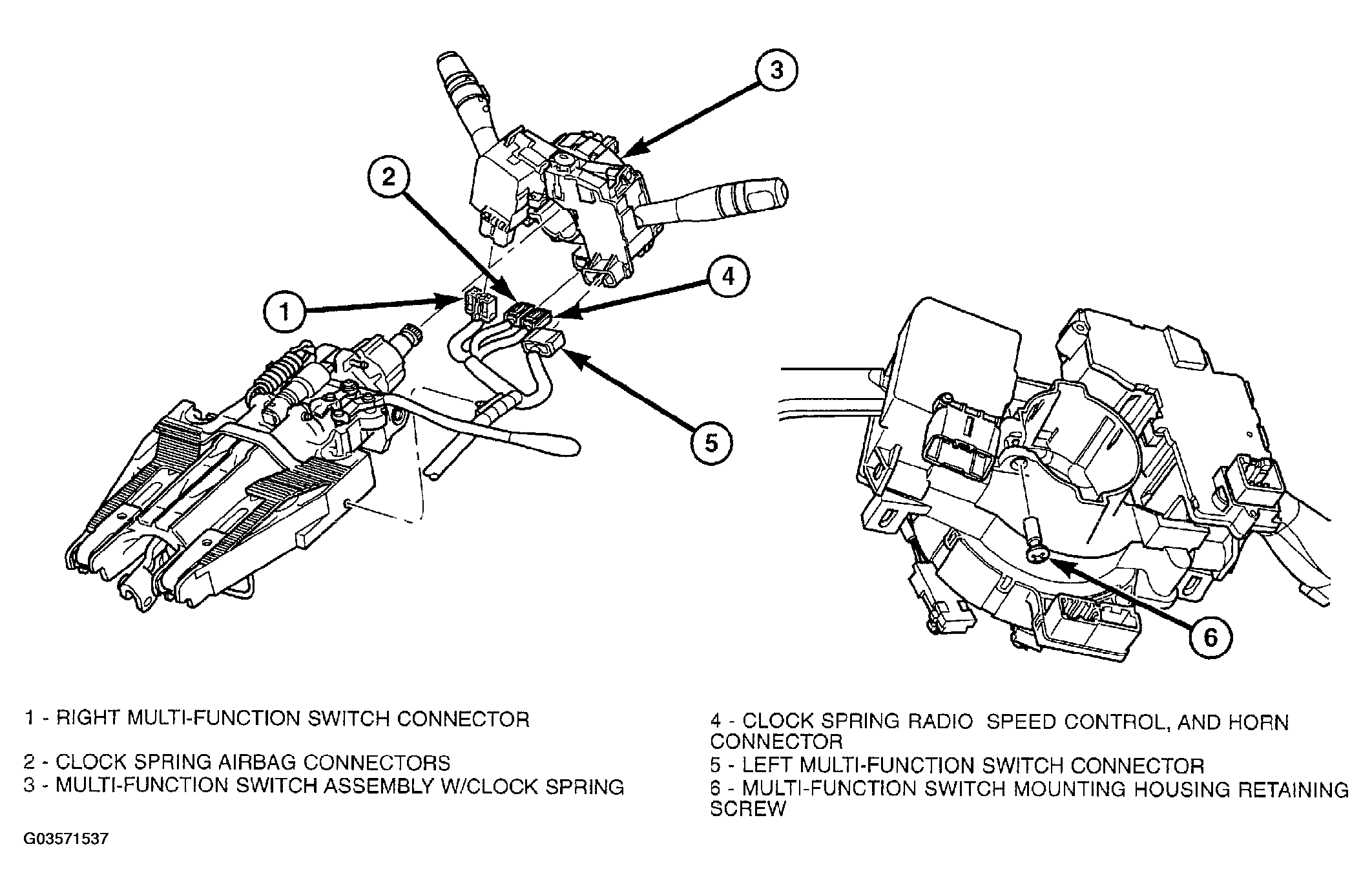

Fig 3: Identifying Components Of Multi-Function Switch
Courtesy of DAIMLERCHRYSLER CORP.
