Data Link Connector - Black 16 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

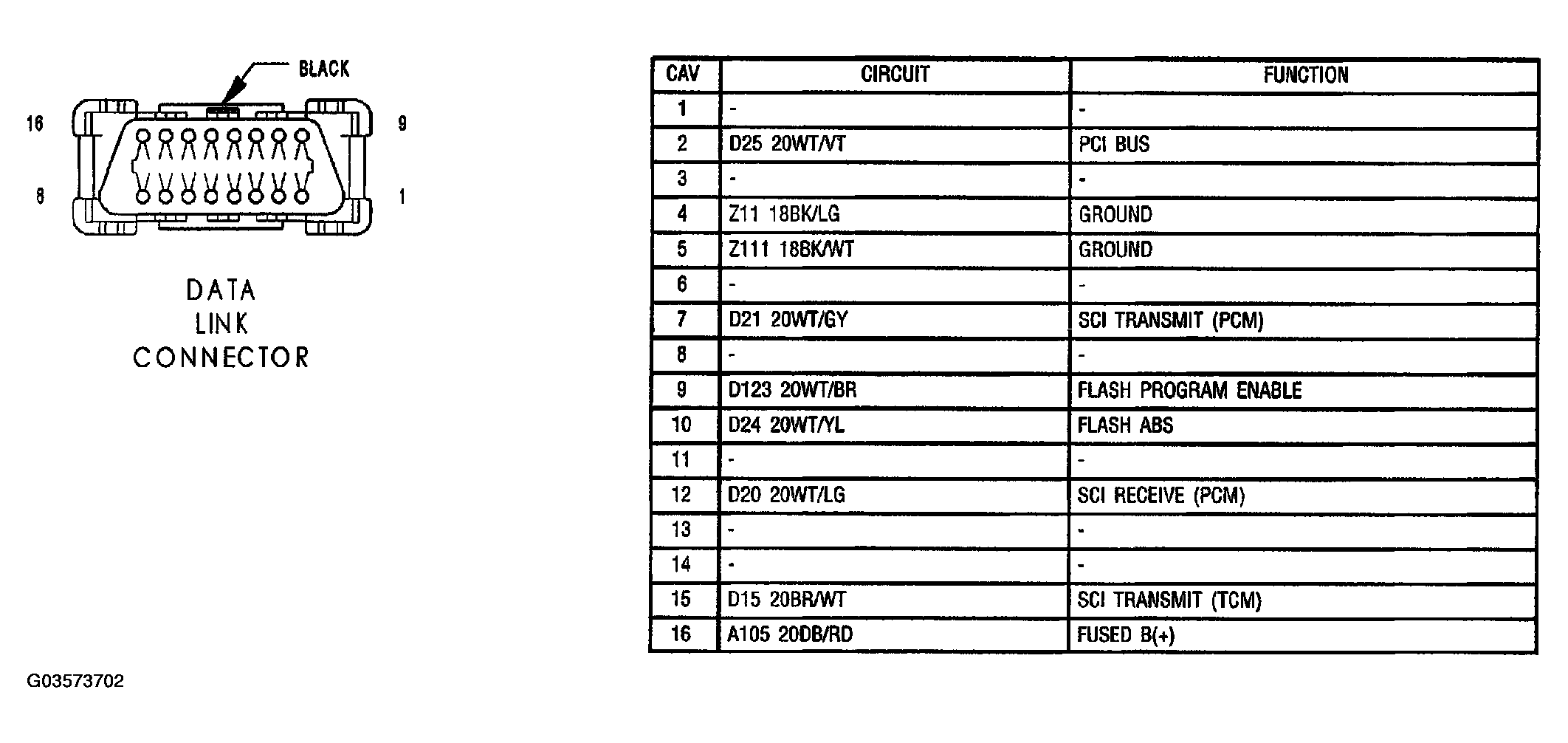

Fig 1: Data Link Connector End View
G03573702Courtesy of DAIMLERCHRYSLER CORP.
