Memory/Heated Seat Adjustable Pedals Module C4 - Gray 2 Way Connector End View
WARNING:
This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

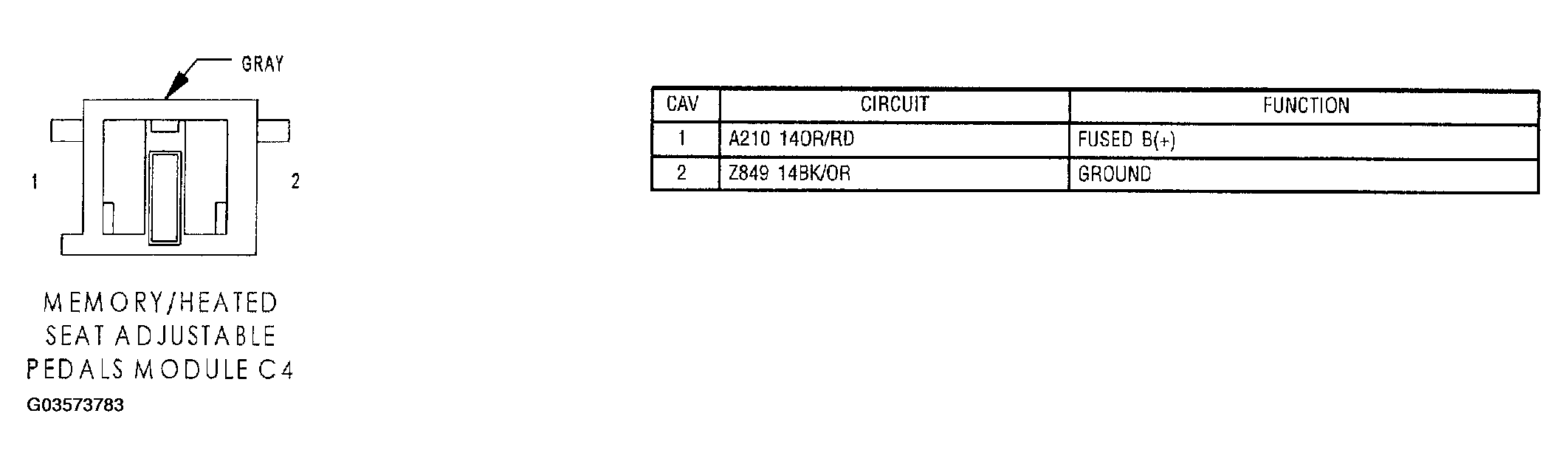

Fig 1: Memory/Heated Seat Adjustable Pedals Module Connector End View (C4)
Courtesy of DAIMLERCHRYSLER CORP.
