Differential Case ASSY (MTM): Components

WARNING: This page is about a different variant/trim than selected.

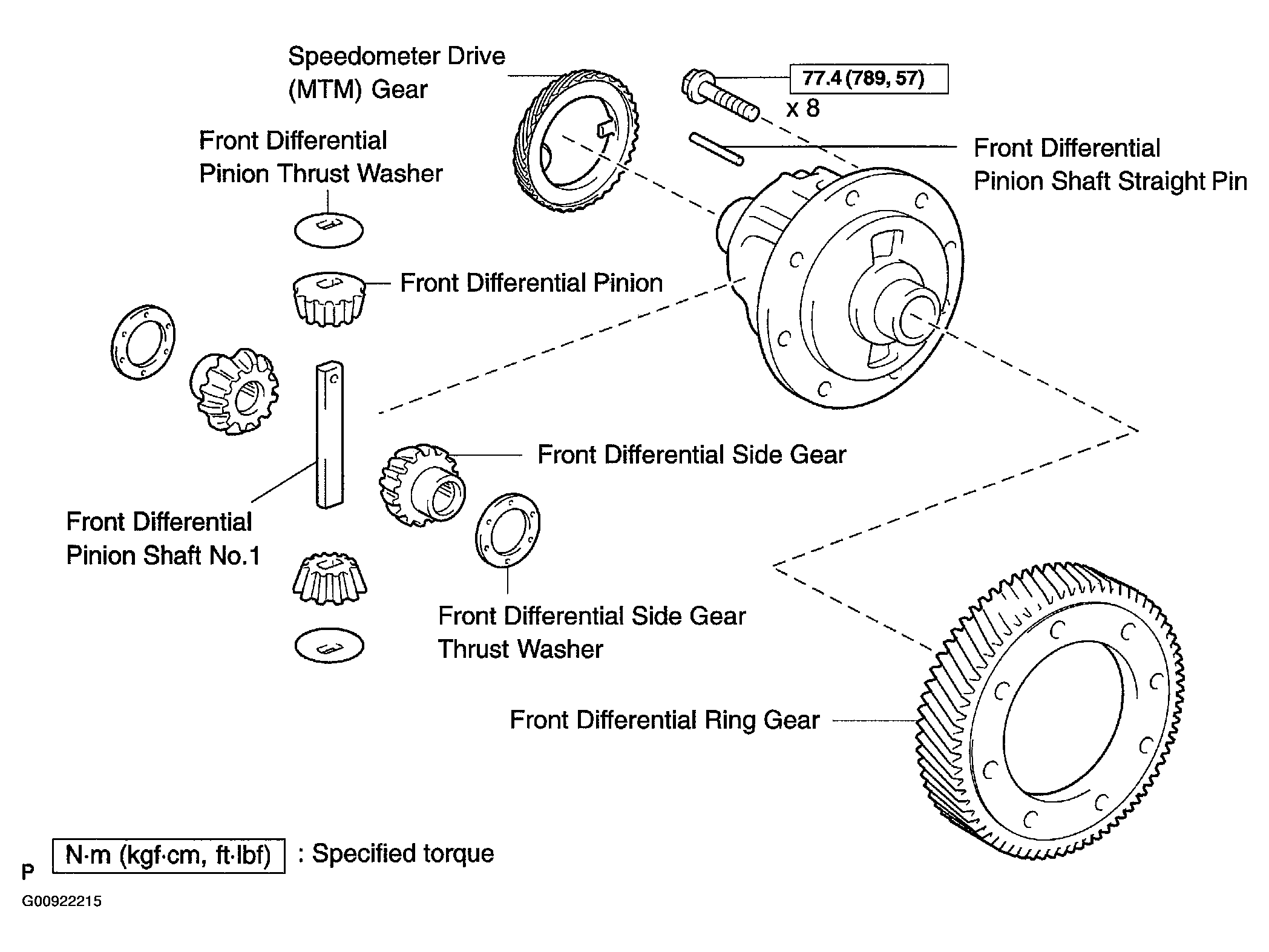

Fig 1: Exploded View Of Differential Case Assembly Components
G00922215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
